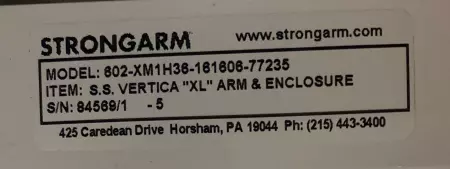

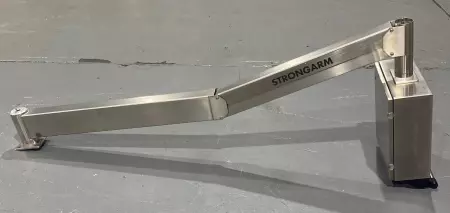

Strongarm 602-XM1H36-1616-77235 SS Vertical XL Arm and Enclosure

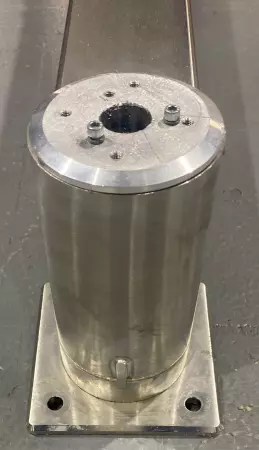

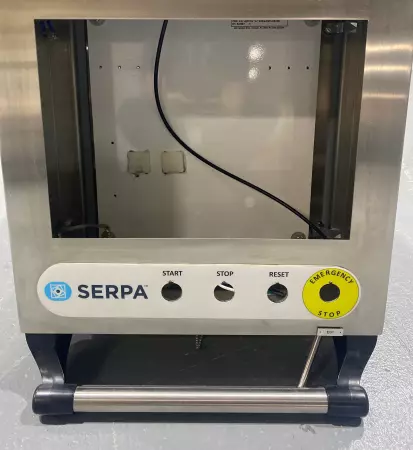

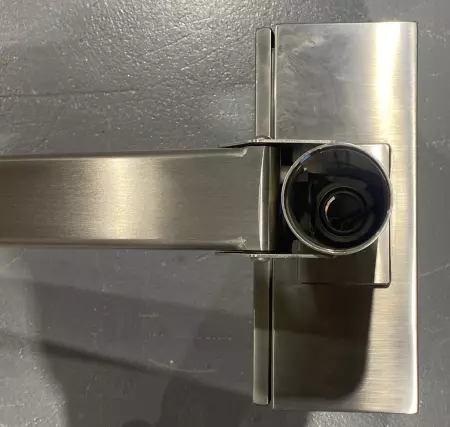

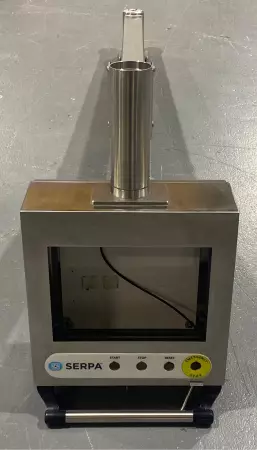

The Strongarm 602-XM1H36-1616-77235 is a stainless steel (SS) vertical XL arm equipped with an enclosure, designed to provide ergonomic and durable support for operator interface devices in industrial settings. This model is part of Strongarm's Vertica Arm series, known for their robust construction and flexibility in mounting human-machine interface (HMI) components. Key Features: Vertical XL Arm: Offers 30 inches of gas spring-assisted vertical travel, allowing operators to effortlessly lift, lower, and reposition the enclosure to suit various ergonomic needs. The arm can support up to 50 lbs, accommodating a range of equipment. Stainless Steel Enclosure: Fabricated from 14-gauge 304 or 316L stainless steel, the enclosure ensures durability and resistance to corrosion, making it suitable for harsh industrial environments. It maintains NEMA Type 4X rating, providing protection against water and dust ingress. Mounting Options: The system offers various mounting configurations, including wall mount, post mount, and machine top mount, providing flexibility to integrate into different workspaces. Cable Management: Features a 1.4-inch (35mm) diameter sealed cable passageway, protecting cables and maintaining the enclosure's NEMA rating. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   100.00

Depth:   32.00

Length:   24.00

Width:   90.00

SKU:   255542 4.R10.8.1
