In stock 3 available

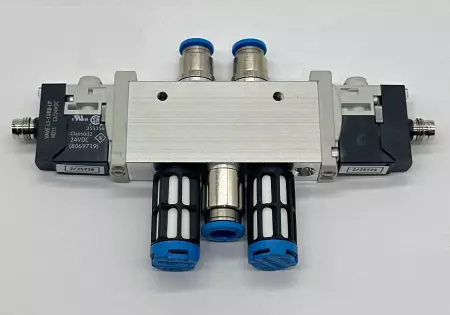

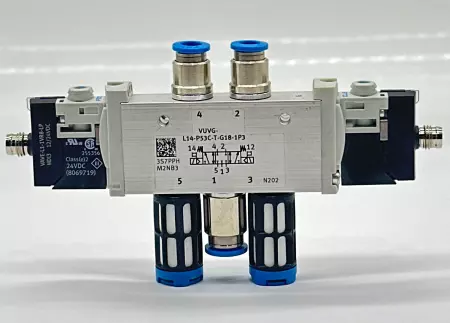

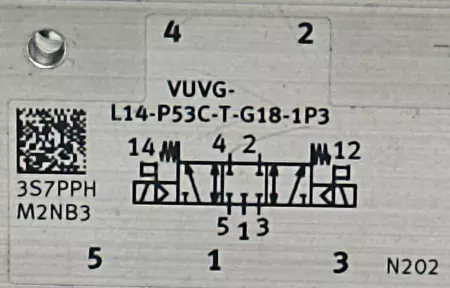

The Festo VUVG-L14-P53C-T-G18-1P3 is a compact, electrically actuated 5/3-way solenoid valve designed for efficient pneumatic control in various industrial applications. Key Specifications: Valve Function: 5/3-way, closed in mid-position Actuation Type: Electrical Valve Size: 14 mm Standard Nominal Flow Rate: 620 to 650 l/min Pneumatic Working Ports: G1/8 Operating Voltage: 24V DC Operating Pressure: 3 to 8 bar (0.3 to 0.8 MPa) Design Structure: Piston gate valve Reset Method: Mechanical spring Degree of Protection: IP40; IP65 with plug socket Nominal Size: 5.6 mm Sealing Principle: Soft Mounting Position: Any Manual Override: Detenting, non-detenting, covered Pilot Air Supply: Internal Switching Times: On: 12 ms Off: 40 ms Reversal: 20 ms Duty Cycle: 100% Ambient and Media Temperature: -5 °C to 60 °C Product Weight: 89 g Electrical Connection: Via electrical sub-base Pneumatic Connections: Ports 1 to 5 - G1/8
Condition: New
Weight: 4.00
Depth: 6.00
Length: 6.00
Width: 6.00
SKU: 260719 4.S6.5.3
