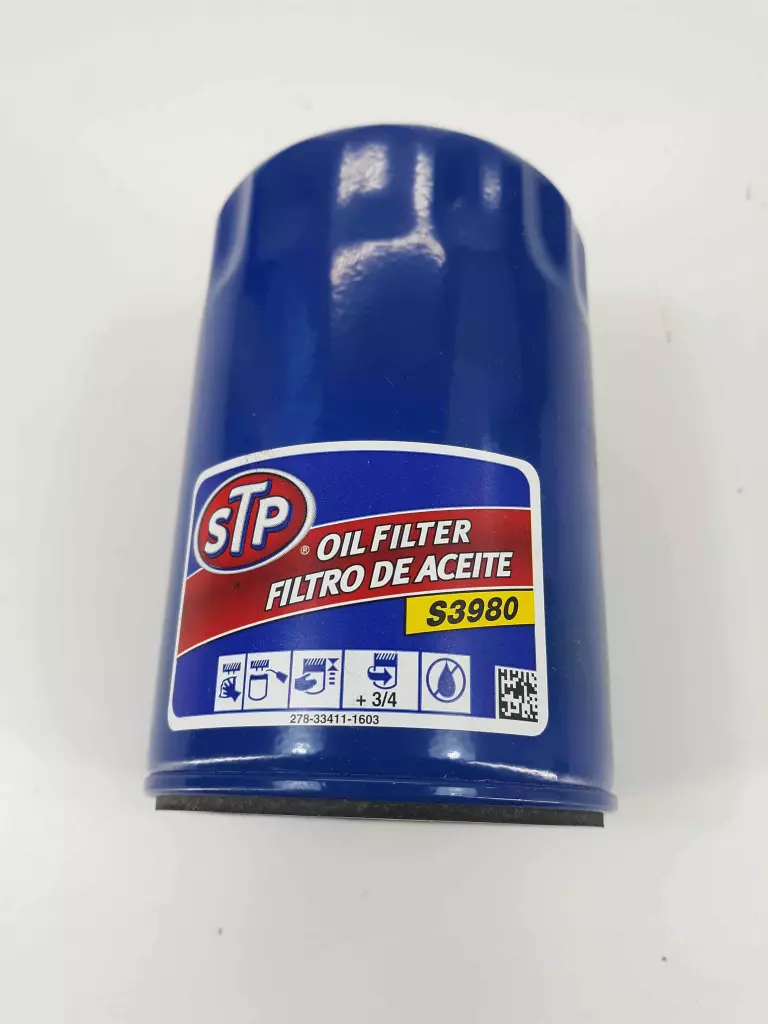

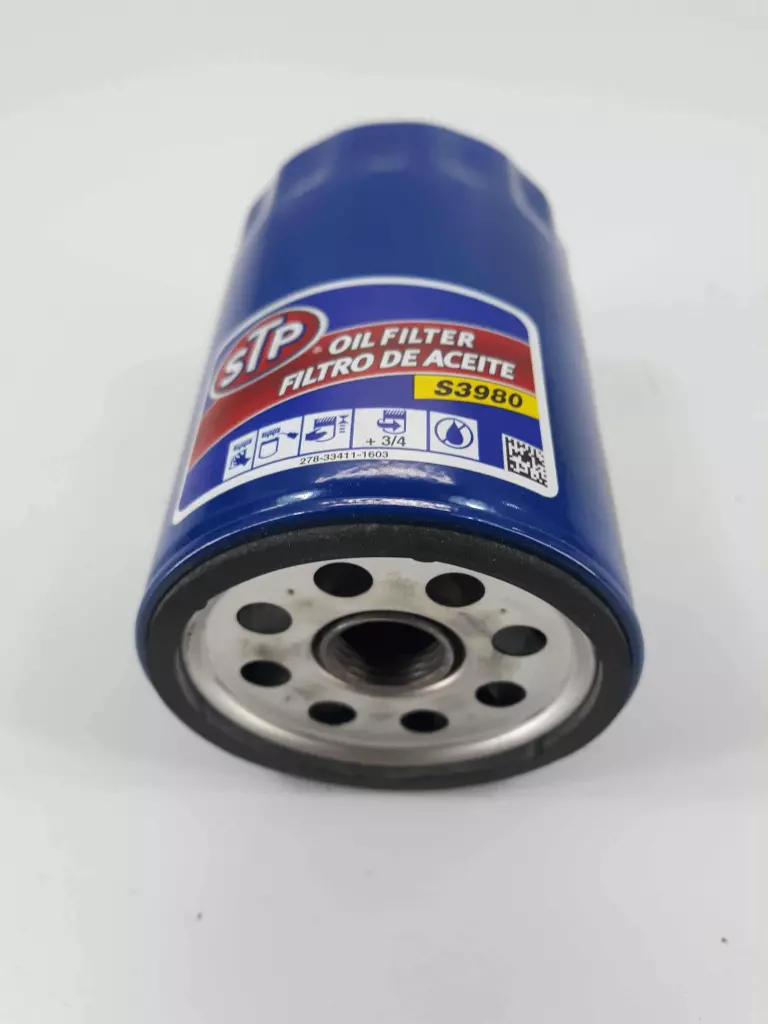

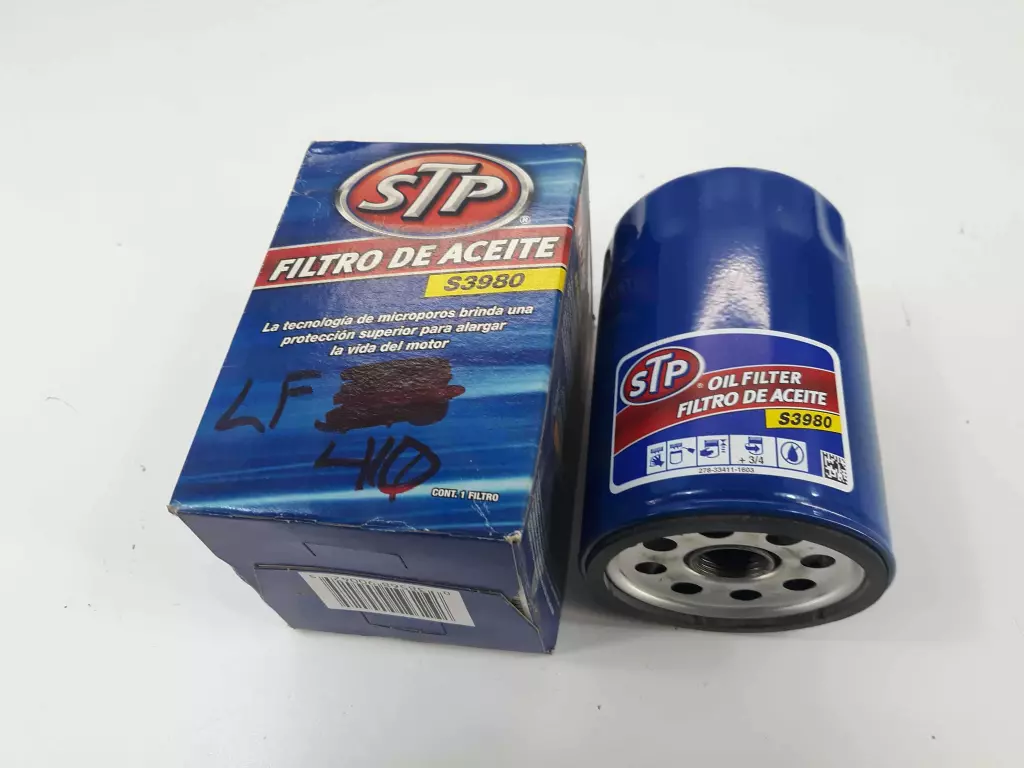

STP S3980 Engine Oil Filter

STP S3980 is a spin-on engine oil filter designed for passenger cars and light trucks. It provides effective full-flow filtration, capturing harmful particles to protect the engine and extend oil life.

Technical Specifications:
Product Type: Spin-On Oil Filter
Brand: STP (First Brands Group)
Part Number: S3980
Application: Automotive/light truck gasoline and diesel engines
Thread Size: 3/4"-16 UNF
Outer Diameter: 3.66 in (93 mm)
Overall Height: 5.20 in (132 mm)
Gasket/O-Ring: Outside Diameter 2.75 in (69.9 mm), Inside Diameter 2.45 in (62.2 mm), Thickness 0.20 in (5 mm)
By-Pass Valve: Yes, 8–11 PSI (0.55–0.75 bar)
Anti-Drainback Valve: Yes (nitrile rubber standard)
Efficiency: 95% efficiency at 30 microns (Extra Guard equivalent media)
Construction: Steel canister, resin-treated cellulose media, nitrile gasket
Country of Manufacture: USA / Mexico (depending on batch)

Cross-Reference:
Fram PH8A
Motorcraft FL1A
Baldwin B2
Wix 51515
Hastings LF524
AC Delco PF2 Please review pictures carefully and let us know if you have any questions!
