In stock 1 available

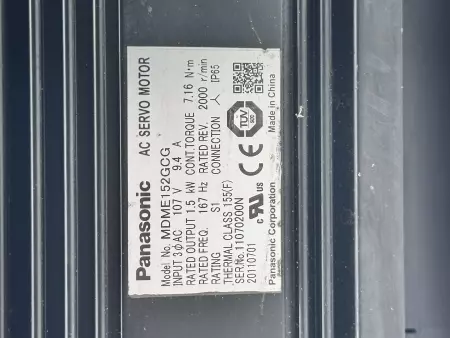

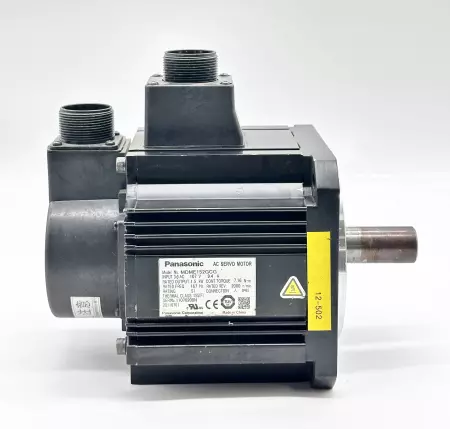

The Panasonic MDME152GCG is a 1.5 kW AC servo motor from the MINAS A5 series, designed for high-performance industrial applications requiring precise motion control. Key Specifications: Rated Output Power: 1.5 kW Rated Torque: 7.16 N·m Rated Speed: 2000 RPM Maximum Speed: 2000 RPM Voltage: 107 VAC Rated Current: 9.4 A (RMS) Peak Torque: 7.16 N·m Encoder Resolution: 20-bit incremental (1,048,576 pulses/rev) Protection Class: IP65 (excluding shaft and connectors) Flange Size: 130 mm square Shaft Diameter: 22 mm with keyway Rotor Inertia: 6.70 × 10⁻⁴ kg·m² Weight: Approximately 6.7 kg Features: High Responsiveness: Frequency response of 2.3 kHz for precise control. Compact Design: Middle inertia, suitable for applications requiring quick acceleration and deceleration. Connectivity: Connector-type terminals for simplified wiring. Durability: Robust construction with IP65 rating, ensuring protection against dust and water ingress.
Condition: Used
Weight: 19.00
Depth: 9.00
Length: 15.00
Width: 12.00
SKU: 100806 4.S6.9.1
