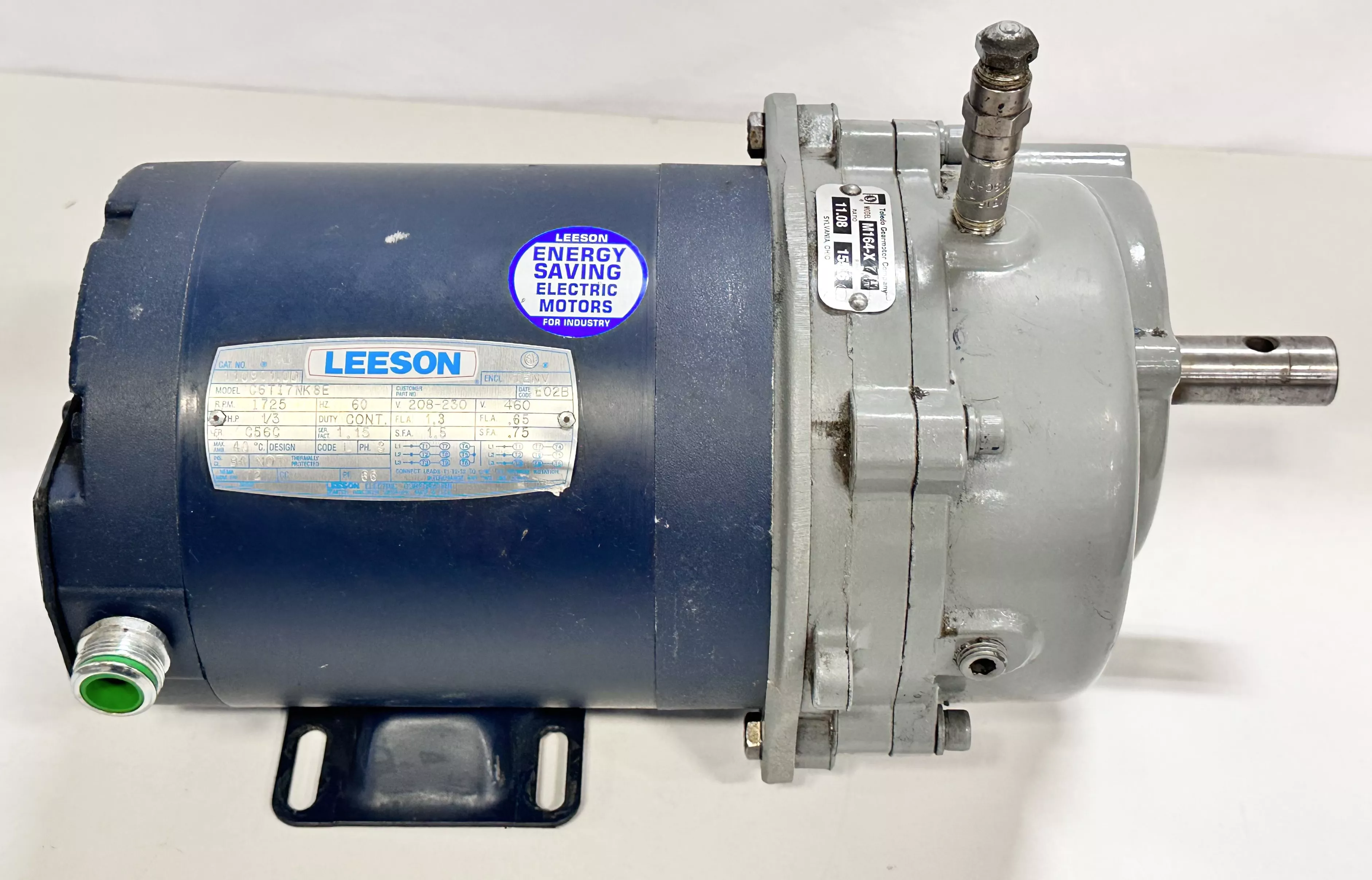

Leeson 110911.00 Energy Saving AC Motor 1/3HP

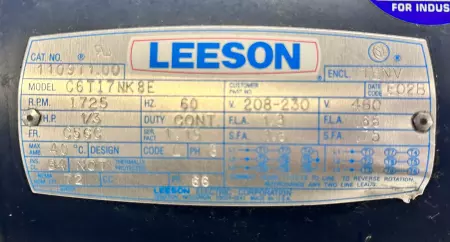

Motor Type: Energy Saving AC Motor Horsepower (HP): 1/3 HP Speed (RPM): 1725 RPM Frequency: 60 Hz Voltage: 208–230 V (FLA: 1.3 A / SFA: 1.6 A) 460 V (FLA: 0.65 A / SFA: 0.75 A) Phase: 3-phase Frame Size: C56C Enclosure: TENV (Totally Enclosed Non-Ventilated) Duty Cycle: Continuous Service Factor (SF): 1.15 Insulation Class: B Max Ambient Temperature: 40°C Design Code: L NEMA Nom. Efficiency: 72% Thermal Protection: None Ingress Protection (IP): 66 Mounting: C-face or foot mount (based on frame) Wiring Diagram: Included on nameplate for dual-voltage connection Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   30.00

Depth:   14.00

Length:   20.00

Width:   16.00

SKU:   100844 4.R5.3.3
