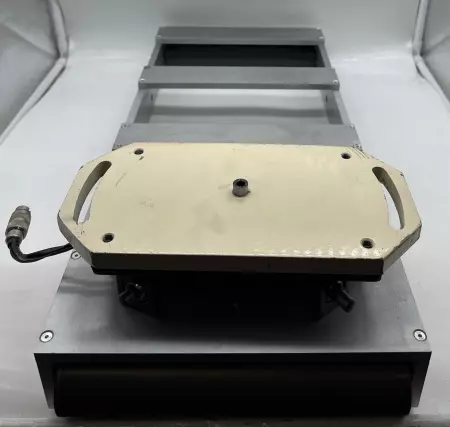

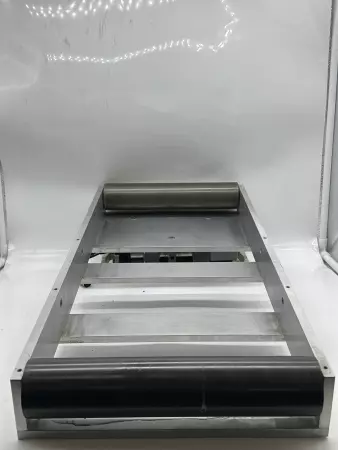

Fife SYMAT-25 Offset Pivot Guide Roller

​The Fife SYMAT-25 Offset Pivot Guide is a compact, electromechanical web guiding system engineered for narrow-web applications where short entry and exit spans are essential. Its design ensures precise web alignment, enhancing productivity and reducing material waste.​ Key Features: Compact Design: Ideal for installations with limited space, providing accurate guiding under tight constraints.​ Fully Proportional Control: Offers fast and precise web guiding, adapting quickly to changes in web position.​ Durable Construction: Built for low maintenance and long-lasting reliability, minimizing downtime.​ High Frequency Response: Capable of responding swiftly to web movements, ensuring consistent alignment.​ Precision Actuation: Features a backlash-free actuator and DC servomotor for accurate adjustments.​ Optional Servo-Center: Facilitates automatic guide centering to expedite setup and threading processes.​ Sensor Compatibility: Compatible with all standard Fife sensors and web guide controllers for edge, center, or line guiding.​ Technical Specifications: Guide Span and Roller Face Widths: Available in 160 mm (6.30 inches), 200 mm (7.88 inches), and 250 mm (9.84 inches).​ Roller Diameter: 50.8 mm (2 inches).​ Maximum Correction: ±22.4 mm (±0.88 inch).​ Load Capacity: Supports up to 200 N (45 lbf), depending on the wrap style used. ​The Fife 534736-002 is a servo actuator motor commonly integrated within Fife's SYMAT-25 Linear Race Offset Pivot Guide systems. These systems are designed to provide precise web guiding in various industrial applications, ensuring accurate alignment and control of materials during processing.​

Condition: Used

Weight:   26.00

Depth:   20.00

Length:   20.00

Width:   20.00

SKU:   100885 4.S6.9.1
