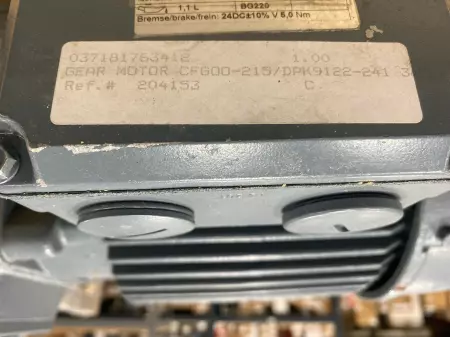

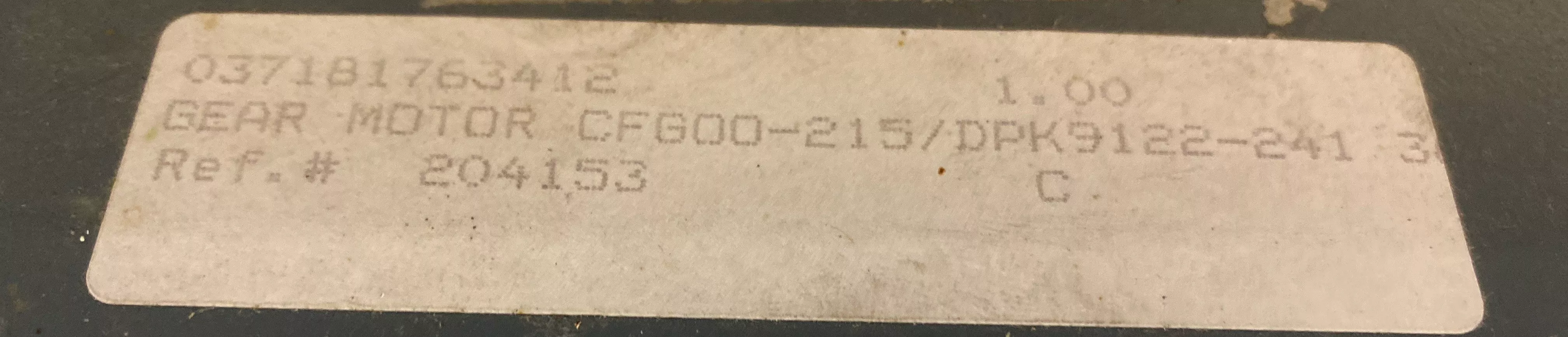

Trutzschler CFG00-215/DPK9122-241 Gearmotor,1.34HP W/Gearbox Ratio 26.5:1

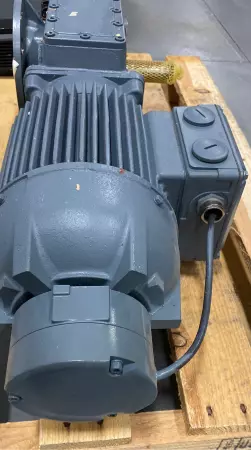

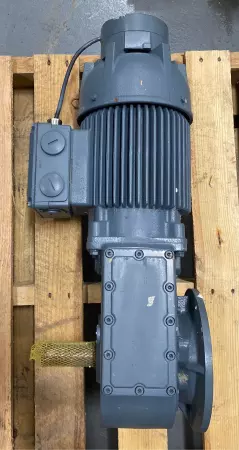

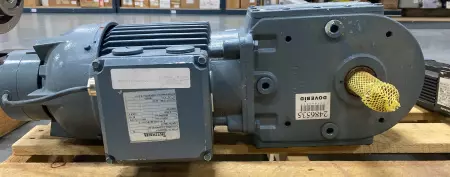

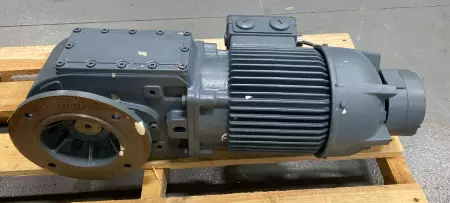

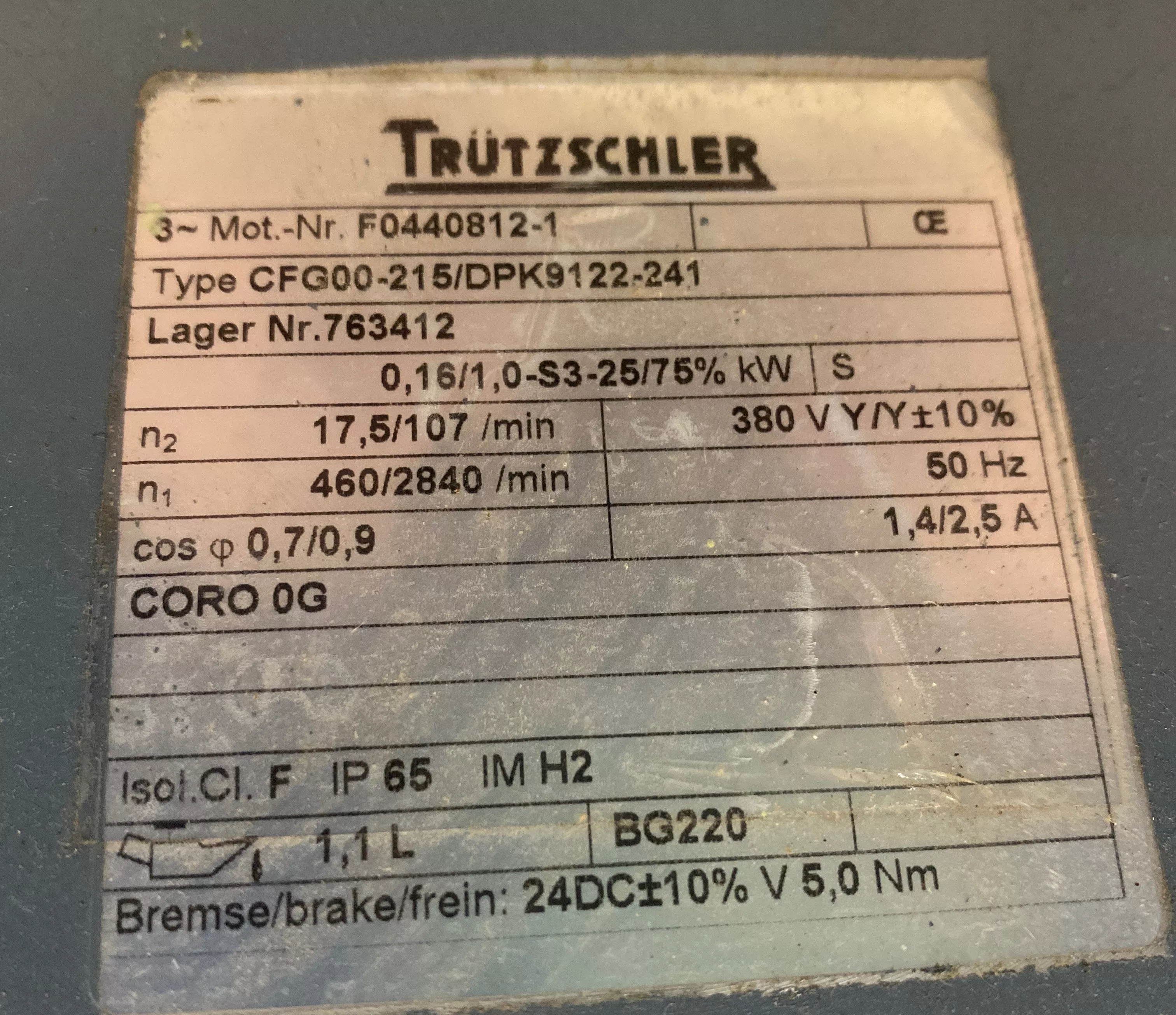

The Trützschler CFG00-215/DPK9122-241 is a compact, integrated gearmotor assembly typically used in textile machinery. It combines a high-efficiency motor with a precision gear reducer for controlled speed and torque in demanding continuous-duty environments. Motor Model: DPK9122-241 Gearbox Model: CFG00-215 Rated Power: 1.34 HP (approx. 1.0 kW) Input Voltage: Typically 460 V 3-phase Rated Speed (Motor): Approx. 2840 RPM Gear Ratio: Model-specific 26.5:1 RPM Output Speed: Depends on ratio (e.g., 2800 RPM / 26.5 = 107 RPM) Torque Output: Typically 30–120 Nm depending on ratio Duty: Continuous (S1) Enclosure: IP65 Mounting: Foot or flange mount (horizontal orientation) Application: Textile machinery drive unit (carding, drawing, winding, etc.) Cooling: Surface-cooled or fan-cooled, based on motor configuration Manufacturer: Trützschler GmbH, Germany Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   151.00

Depth:   24.00

Length:   40.00

Width:   48.00

SKU:   100919 4.R4.3.3
