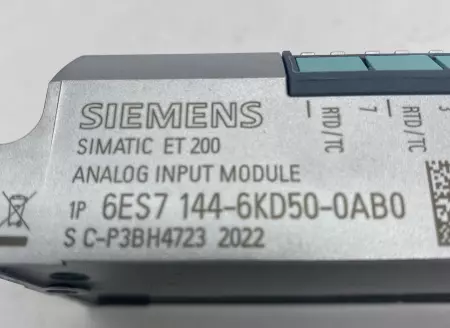

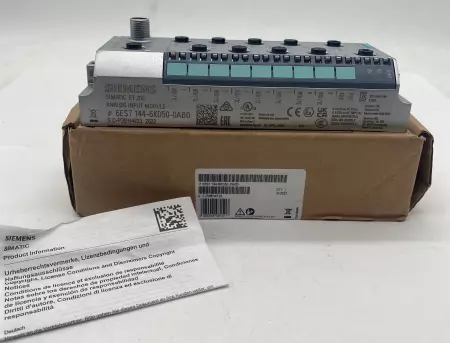

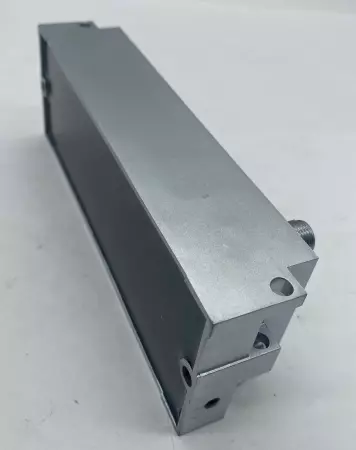

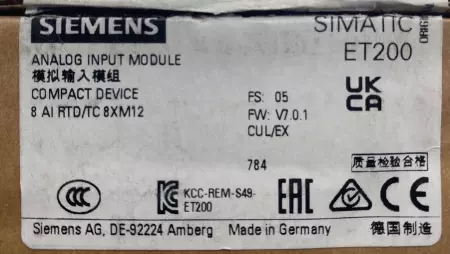

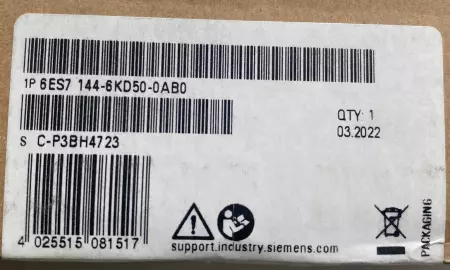

Siemens 6ES7 144-6KD50-0AB0 Simatic ET200 Analog Input Module

The Siemens 6ES7 144-6KD50-0AB0 is an analog input module designed for the SIMATIC ET 200 distributed I/O system. It provides high-precision analog signal acquisition, suitable for connecting sensors and transducers in industrial automation environments. Technical Information: Manufacturer: Siemens Series: SIMATIC ET 200 Model Number: 6ES7 144-6KD50-0AB0 Product Type: Analog Input Module I/O Type: 4-channel analog input Input Type: Voltage or current (configurable) Input Range Options: ±10 V 0–10 V 0–5 V 0–20 mA 4–20 mA Resolution: 16-bit Accuracy: ±0.3% of full scale (typical) Module Width: 15 mm Power Supply: Via backplane bus of ET 200 system System Compatibility: ET 200SP with BaseUnit and Interface Module (IM) Hot Swapping: Supported (module can be replaced without powering down the system) Diagnostics: Channel-specific diagnostics available Connectors: 8 X M12 CONNECTIONS

Condition: New – Open box

Weight:   6.00

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   101104 4.S5.9.3
