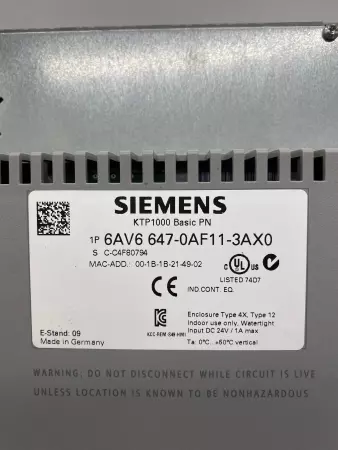

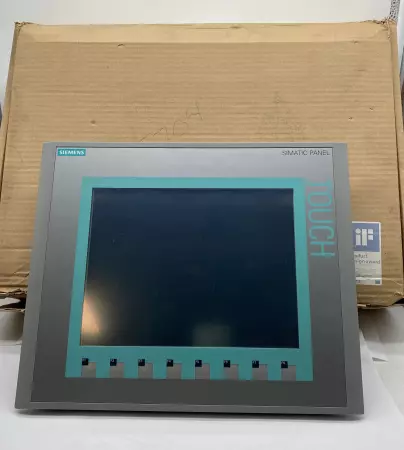

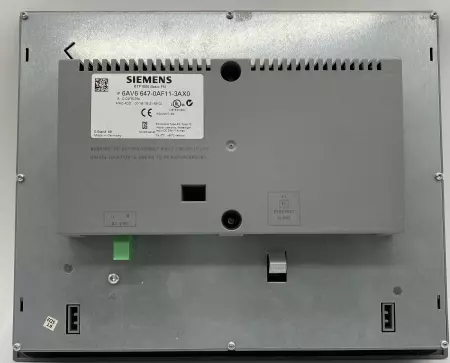

Siemens 6AV6 647-0AF11-3AX0 Simatic Operator Interface Panel 10"

The Siemens 6AV6 647-0AF11-3AX0 is a SIMATIC HMI KTP1000 Basic Color PN operator interface panel, designed for industrial applications requiring user-friendly interaction with automation systems. This panel features both key and touch operation, providing flexibility in user input methods. Key Specifications: Display: 10.4-inch TFT screen Resolution: 640 x 480 pixels 256 colors Backlight MTBF: 50,000 hours Input: 8 function keys Analog-resistive touch screen Interfaces: 1 Industrial Ethernet (PROFINET) Power Supply: 24 V DC (19.2 V to 28.8 V range) Power consumption: approximately 15 W Dimensions: Front panel: 335 mm (W) x 275 mm (H) Mounting depth: 60 mm Cutout: 310 mm (W) x 248 mm (H) Protection Rating: Front: IP65 Rear: IP20 Configuration Software: Compatible with WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5

Condition: Used

Weight:   5.00

Depth:   12.00

Length:   18.00

Width:   24.00

SKU:   101165 4.S6.9.4
