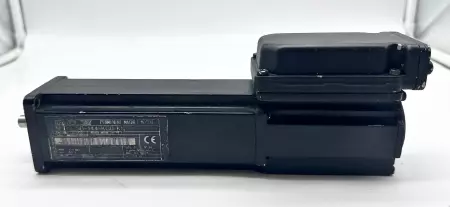

Indramat MKD025B-144-KGO-KN Servo Motor

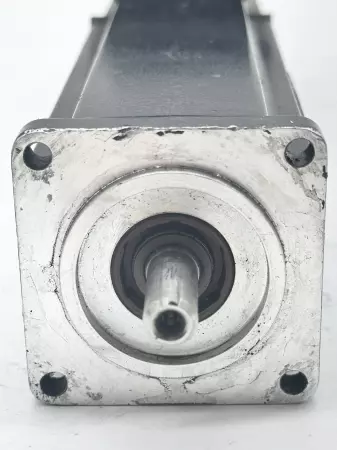

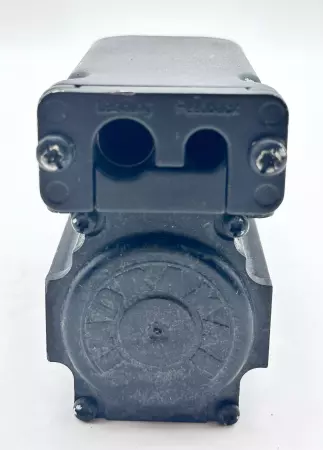

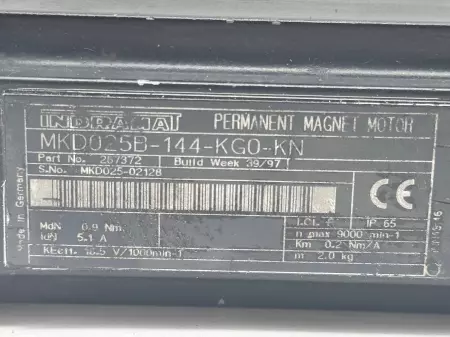

The Indramat MKD025B-144-KGO-KN is a compact permanent magnet servo motor from Bosch Rexroth's MKD series, designed for high-speed and precise motion control in industrial automation applications. Product Type: AC Permanent Magnet Servo Motor Model Number: MKD025B-144-KGO-KN Rated Torque (MdN): 0.9 Nm 94.7-98.4 VAC Rated Current (Iₙ): 5.1 A Torque Constant (Kₘ): 0.2 Nm/A Voltage Constant (Kₑ): 165 V/1000 min⁻¹ Maximum Speed (nₘₐₓ): 9000 min⁻¹ (RPM) Cooling Method: Natural convection (standard housing) Protection Class: IP65 Insulation Class: F Weight: 2.0 kg Feedback Type: Resolver or encoder (dependent on configuration code) Connector Orientation: KGO – connectors turned 90° Shaft Type: KN – plain shaft with keyway and sealing ring Country of Manufacture: Made in Germany Application: Precision robotics, packaging equipment, machine tools, printing systems

Condition: Used

Weight:   10.00

Depth:   5.00

Length:   9.00

Width:   12.00

SKU:   101210 4.S6.8.1
