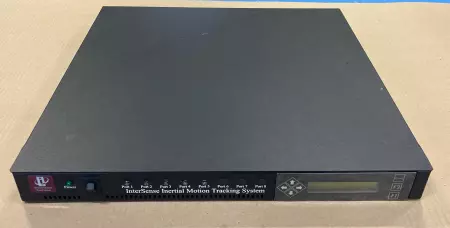

Intersense 100-IS900-PCU5 Inertial Motion Tracking System

The InterSense 100-IS900-PCU5 is a component of the IS-900 series, a high-precision inertial-ultrasonic hybrid motion tracking system designed for applications requiring accurate six degrees of freedom (6-DOF) tracking. This system is widely utilized in military and industrial simulators, immersive displays, virtual prototyping, and film/video production. Key Features: Hybrid Tracking Technology: Combines inertial sensors with ultrasonic signals to deliver real-time position and orientation tracking, ensuring smooth and robust performance even in challenging environments. Immunity to Interference: Engineered to be immune to metallic and electromagnetic interference, maintaining consistent accuracy across the entire tracking volume. Scalable Architecture: Supports various configurations, accommodating different tracking volumes and numbers of tracked devices to suit specific application requirements. Technical Specifications: Degrees of Freedom: 6 (X, Y, Z, Yaw, Pitch, and Roll) Resolution: 0.75 mm for position and 0.05° for orientation (wired); 1.5 mm and 0.10° (wireless) Static Accuracy: Wired: 2.0 – 3.0 mm; 0.25° RMS in Pitch & Roll, 0.50° RMS in Yaw Wireless: 3.0 – 5.0 mm; 0.50° RMS in Pitch & Roll, 1.00° RMS in Yaw Update Rate: 180 Hz nominal (wired); 120 Hz nominal (wireless) Latency: Approximately 4 ms Interface: Ethernet or RS-232 Serial Port Tracking Volume: SimTracker: Up to 20 m² with 12 SoniStrips VETracker: Up to 140 m² with 84 SoniStrips Operating Temperature: 0 to 40°C Processor Dimensions: 1U rack-mounted; 44.45 cm (W) x 40.64 cm (D) x 4.45 cm (H) Processor Weight: Approximately 6.8 kg Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   22.00

Depth:   6.00

Length:   22.00

Width:   22.00

SKU:   101308 4.S6.9.4
