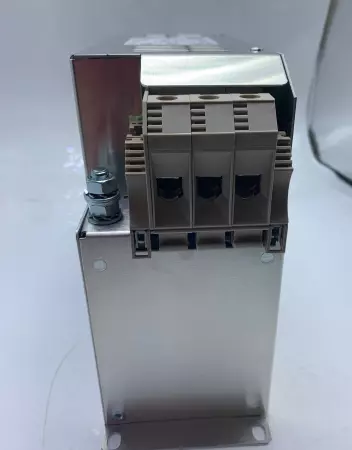

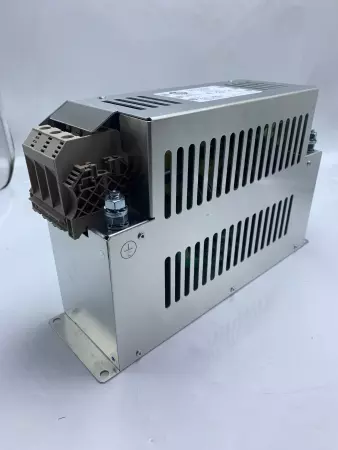

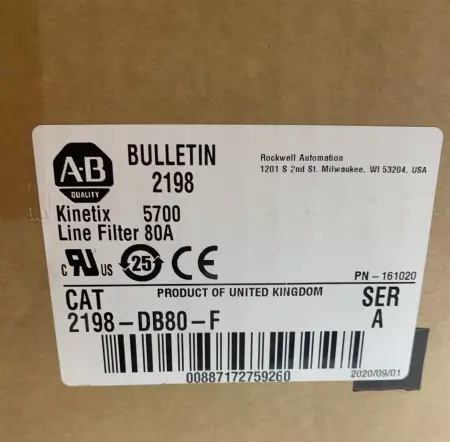

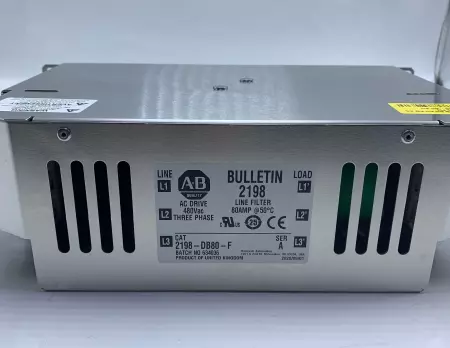

Allen-Bradley 2198-DB80-F SER.A Kinetix 5700 Line Filter 80Amp

The Allen-Bradley 2198-DB80-F Series A is a line filter module designed for use with the Kinetix 5700 servo drive systems. It mitigates conducted electromagnetic interference (EMI) and ensures compliance with industrial EMC standards. This 80 A filter is essential for maintaining signal integrity and protecting other equipment in high-power motion control environments. Technical Specifications Manufacturer: Allen-Bradley (Rockwell Automation) Part Number: 2198-DB80-F Series: A Product Family: Kinetix 5700 Type: AC Line Filter / EMI Filter Function: Suppresses high-frequency noise and meets EMC standards for servo systems Rated Current: 80 A Input Voltage: 3-phase, 200–480 VAC Frequency Range: 50/60 Hz System Compatibility: Designed for use with Kinetix 5700 drives (multi-axis systems) Mounting: Panel mount (vertical recommended for airflow) Cooling: Natural convection; allow spacing for heat dissipation Connector Type: Terminal blocks for secure power connections Protection Class: IP20 (open-type chassis, suitable for control cabinet installation) Operating Temperature: 0 °C to +50 °C Storage Temperature: -40 °C to +85 °C Standards: UL, CSA, CE compliant; meets EN61800-3 EMC requirements Applications: Factory automation, robotics, multi-axis motion systems requiring noise suppression

Condition: New

Weight:   11.00

Depth:   10.00

Length:   12.00

Width:   16.00

SKU:   101475 4.R3.2.6
