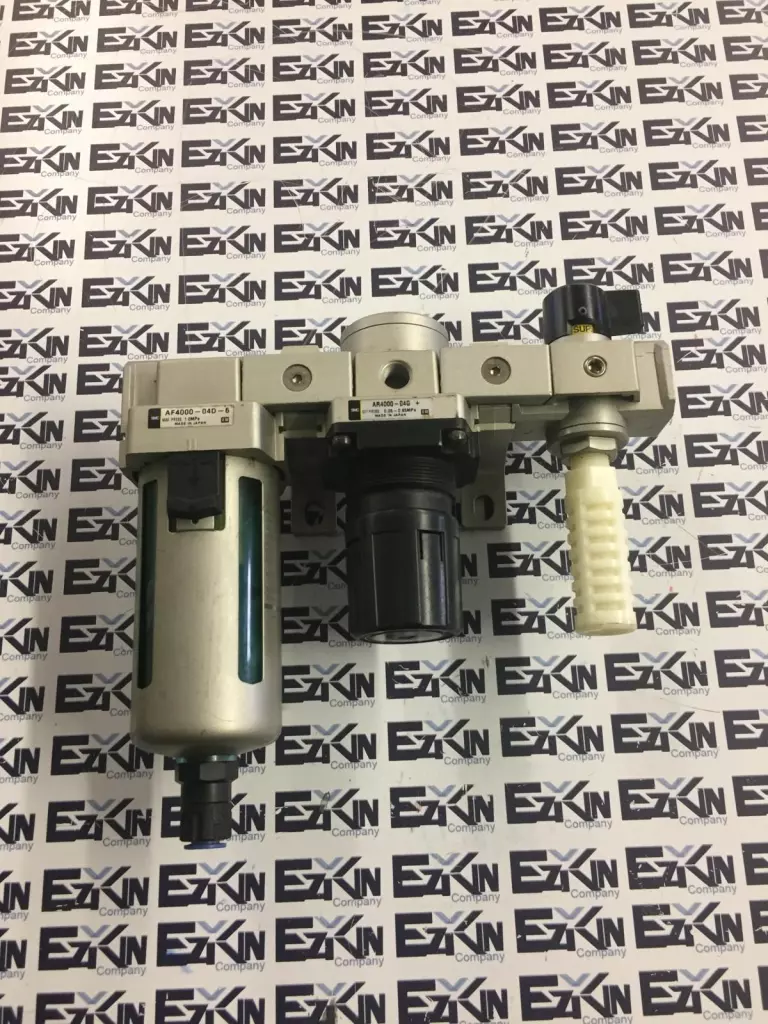

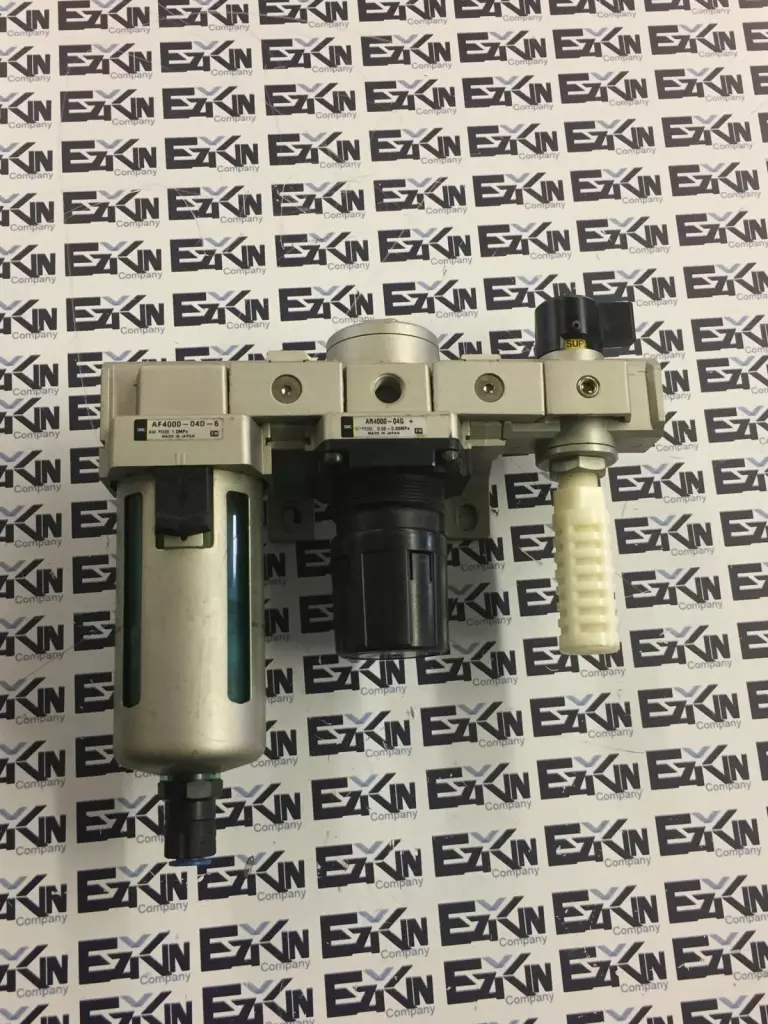

SMC AF4000-04D-6/ AR4000-04G /VHS4000-04 Air Filter Regulator Valve Assy

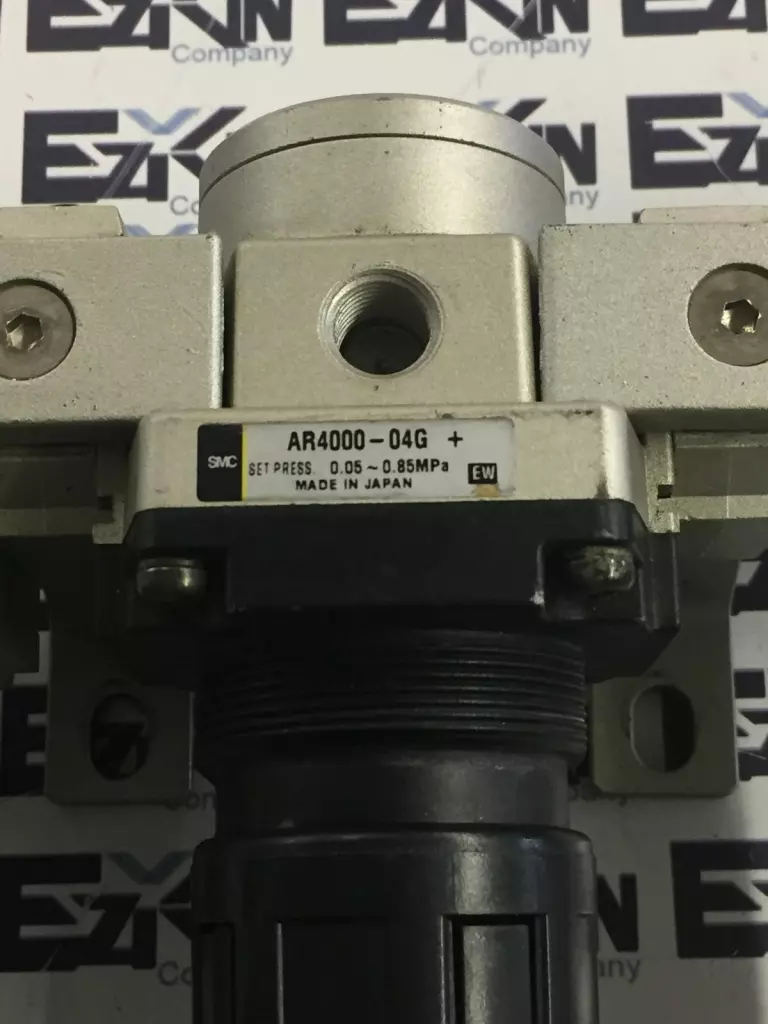

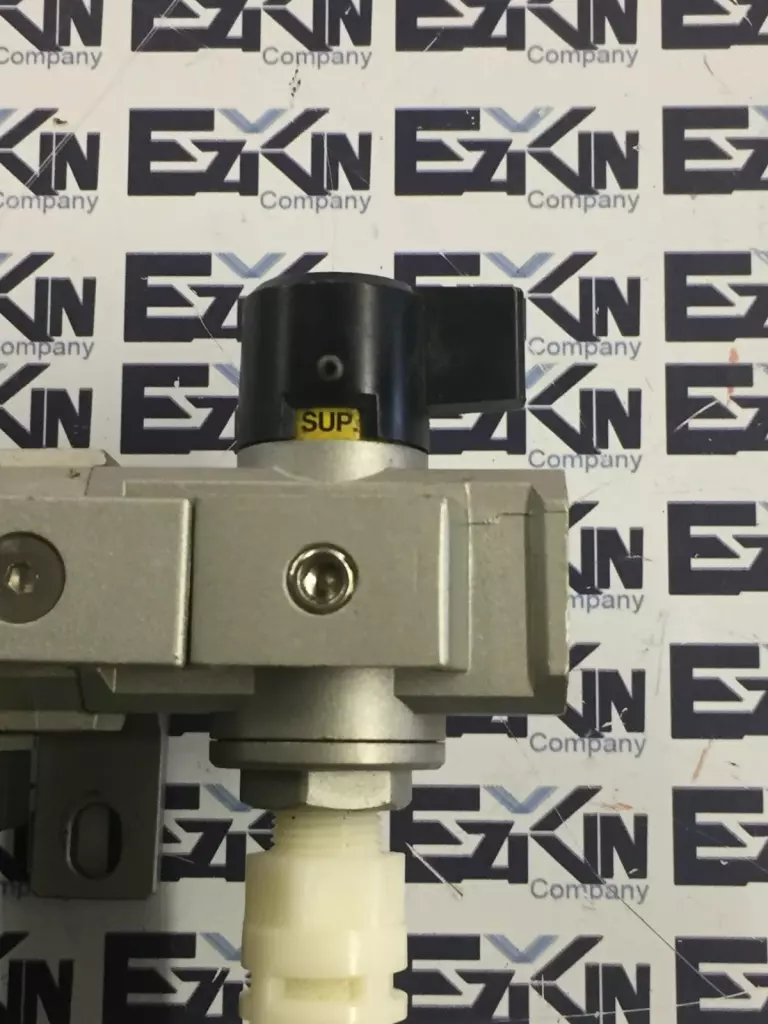

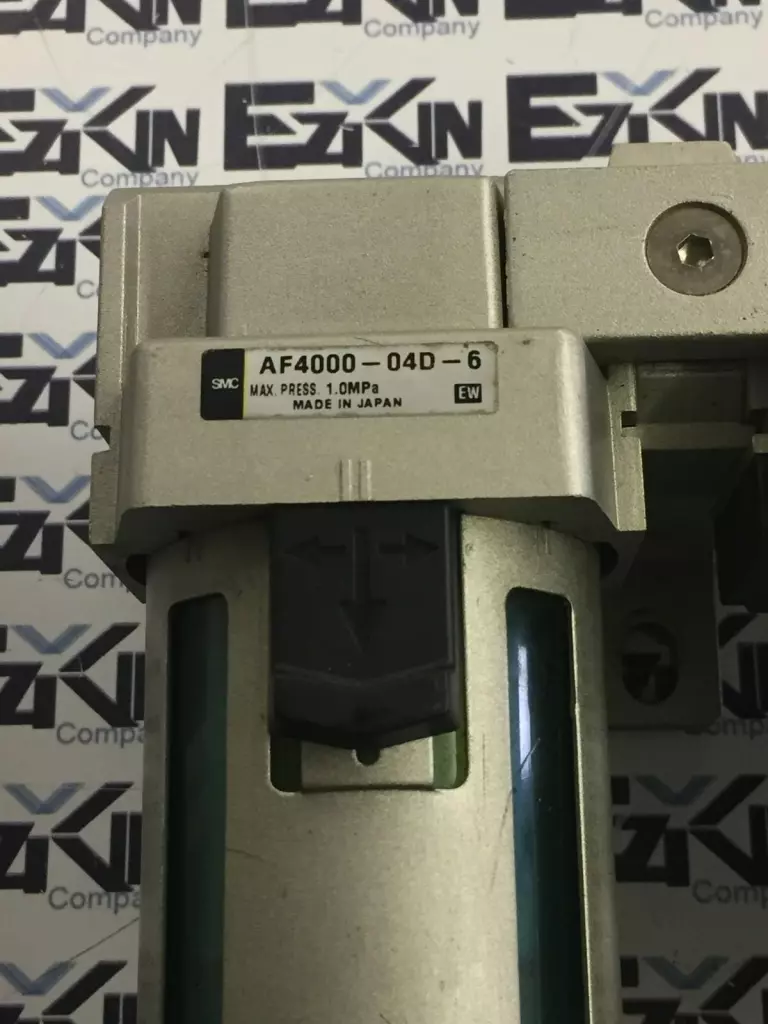

Modular air preparation unit combining filtration, pressure regulation, and manual shut-off functions for use in pneumatic systems requiring clean and stable compressed air. Assembly Includes: 1. SMC AF4000-04D-6 – Air Filter Filtration Rating: 5 μm Port Size: 1/2" (Rc, NPT, or G depending on model) Drain Type: Manual or auto (model dependent) Max Operating Pressure: 1.0 MPa (145 psi) Bowl Material: Polycarbonate with protective cover 2. SMC AR4000-04G – Air Regulator Port Size: 1/2" Regulating Pressure Range: 0.05 to 0.85 MPa (7–123 psi) Max Supply Pressure: 1.0 MPa (145 psi) Pressure Gauge Port: Included Mounting: Bracket or modular body mount 3. SMC VHS4000-04 – Manual Shut-off Valve Port Size: 1/2" Valve Type: 2-port, manual slide valve Pressure Rating: 1.0 MPa (145 psi) Function: Used for safely exhausting downstream air during maintenance Applications: Pneumatic tools, air cylinders, automation equipment, air prep stations Features: Modular connection, easy maintenance, reliable filtration and pressure control in compact form factor Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   4.60

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   1053 4.S8.14.2
