Analog Devices 3B01 16 16-Channel Backplane Module with AC1307 Power Supply

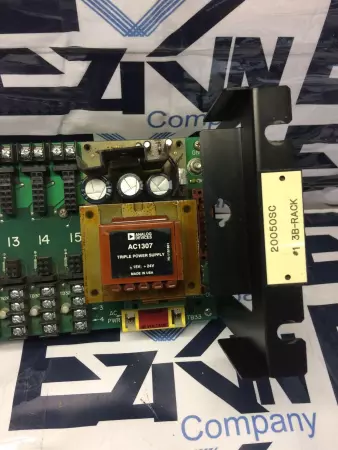

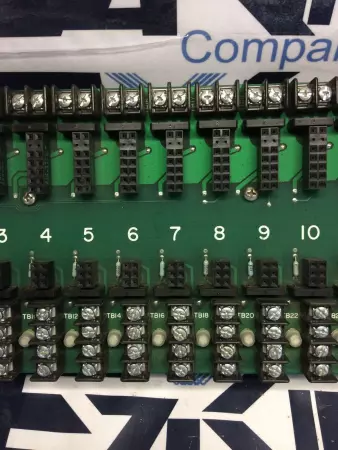

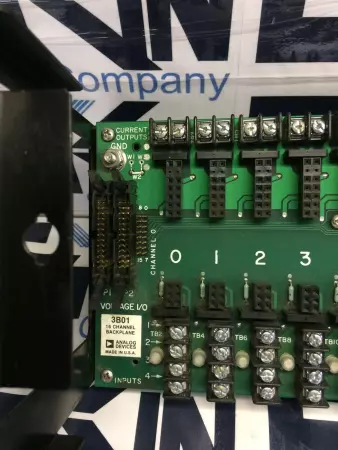

Analog Devices 3B01 16 is a 16-channel backplane module designed for mounting and interconnecting 3B series signal conditioning modules, paired here with the AC1307 power supply for reliable operation in industrial data acquisition systems. Model: 3B01-16 Manufacturer: Analog Devices Type: 16-Channel Backplane Compatible Modules: 3B Series signal conditioning modules Channels: 16 isolated analog input/output slots Connector Type: Plug-in screw terminals per channel Power Supply: Includes AC1307 Power Supply Input Voltage (AC1307): 120V AC nominal Output Voltage (AC1307): ±15V DC (regulated for 3B modules) Mounting: Panel mount with rack ears Application: Industrial signal conditioning, analog I/O integration, process control systems Features: Transformer-isolated power, compact modular layout, reliable grounding and shielding for noise-sensitive applications Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   6.04

Depth:   10.00

Length:   20.00

Width:   10.00

SKU:   1081 4.S1.4.5
