Reliance Electric 6042035 AC Motor 1HP W/ P56X1441W-MA Tigear Reducer

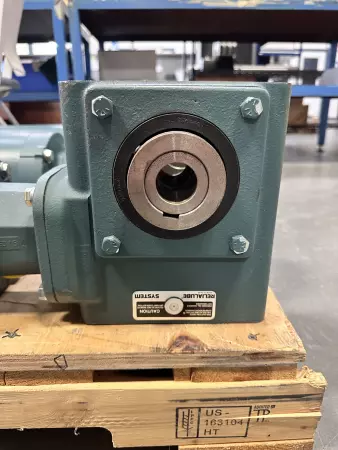

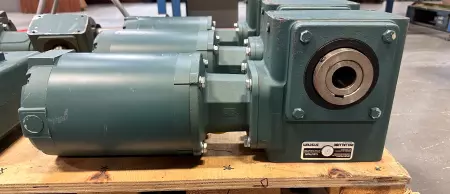

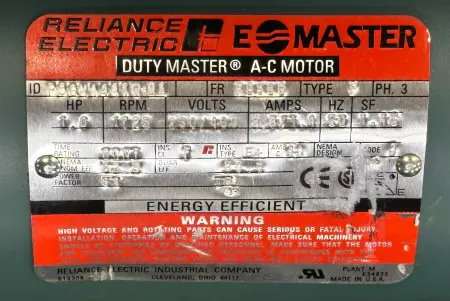

The Reliance 6042035 is a 1 HP AC motor paired with a P56X1441W-MA Tigear right-angle worm gear reducer, forming a compact drive unit for industrial power transmission applications. Motor (6042035): Power: 1 HP Voltage: 208-230/460 V AC, 3-phase Current: ~2.8 A @ 208–230 V, ~1.4 A @ 460 V Speed: 1725 RPM Frequency: 60 Hz Frame: 56C Enclosure: TEFC (Totally Enclosed Fan Cooled) Mounting: C-Face Insulation Class: F Service Factor: 1.15 Efficiency: Standard industrial efficiency Gear Reducer (P56X1441W-MA Tigear): Type: Worm gear, right-angle Mounting: Universal (base, face, shaft) Input: Quill for direct motor mount Gear Ratio: Application-specific (typically 20:1 to 60:1 for this model) Output Torque: Up to ~1127 lb-in Output Shaft: Hollow bore standard Center Distance: 1.33" (Tigear size 13) Housing: Cast iron Lubrication: Factory-filled synthetic oil Weight (combined): Approx. 45–55 lbs

Condition: Used

Weight:   100.00

Depth:   16.00

Length:   19.00

Width:   28.00

SKU:   112209 4.R7.4.3
