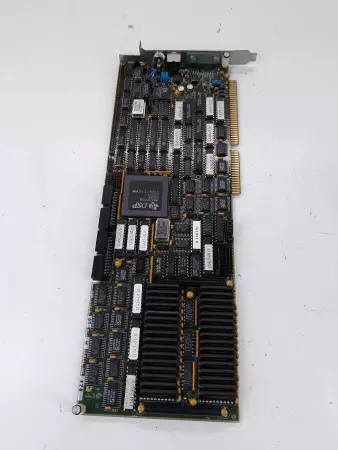

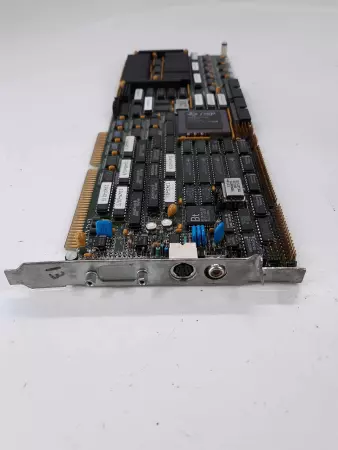

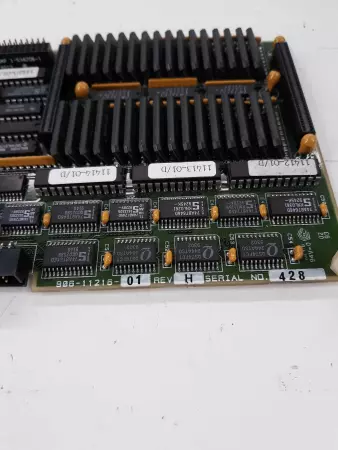

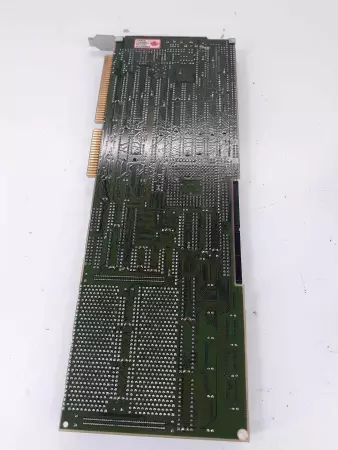

Dipix 906-11216-01 REV.H Enhanced Display Circuit Board

High-resolution industrial imaging component designed for visual data processing and display integration within machine vision systems. The Dipix 906-11216-01 REV.H Enhanced Display Circuit Board is used in advanced inspection or imaging setups, supporting real-time display and signal output tasks. Technical Specifications: Manufacturer: Dipix Technologies Model Number: 906-11216-01 Revision: H Board Type: Enhanced Display Circuit Board Function: Real-time image signal processing and display output Typical Use: Machine vision systems, industrial inspection platforms, OEM camera control modules Input Signal: Digital video stream (from image sensor or frame grabber) Output Signal: Enhanced analog/digital video signal to monitor or processing unit Memory: Likely includes onboard frame buffer (e.g., SRAM or DRAM) Interfaces: Multi-pin connectors for power, signal I/O, and system integration Power Requirement: Typically 5V or 12V DC (verify per system documentation) PCB Format: Standard rectangular PCB, likely custom mounting hole layout Cooling: Passive (reliant on airflow from system chassis) Operating Temperature: 0 to 50 °C (typical for electronics-grade boards) Conformal Coating: Possible (for protection in industrial environments) Application: Image rendering, frame enhancement, video overlay, signal routing in vision systems Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   20.00

Width:   10.00

SKU:   11274 4.S8.7.4B
