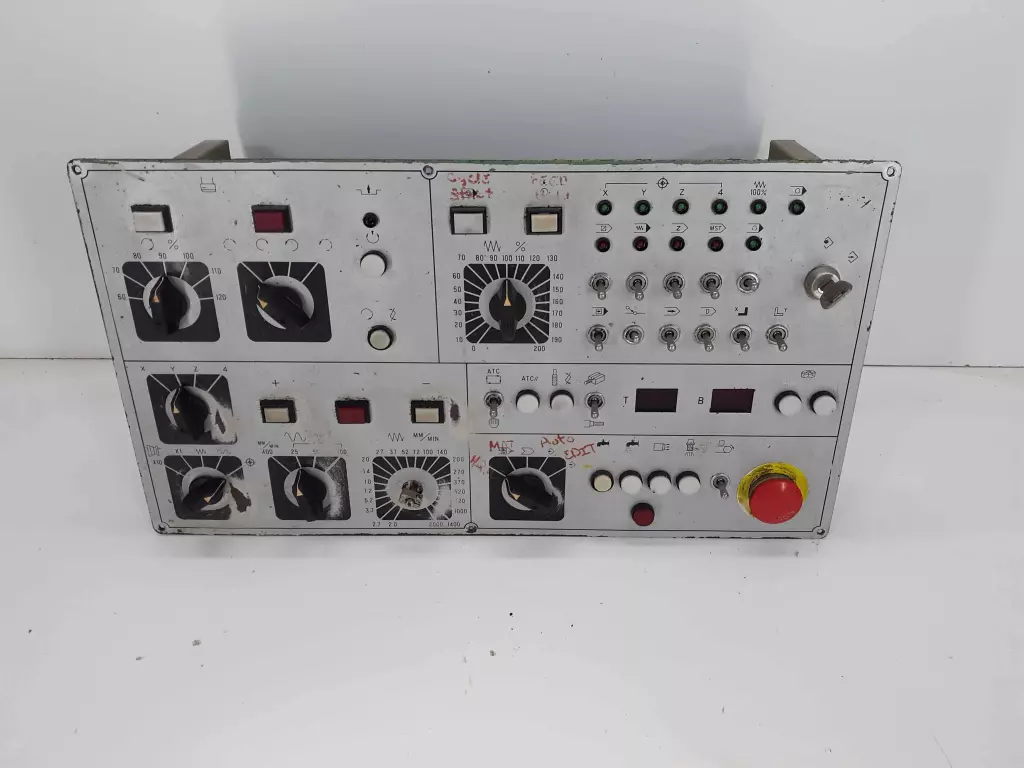

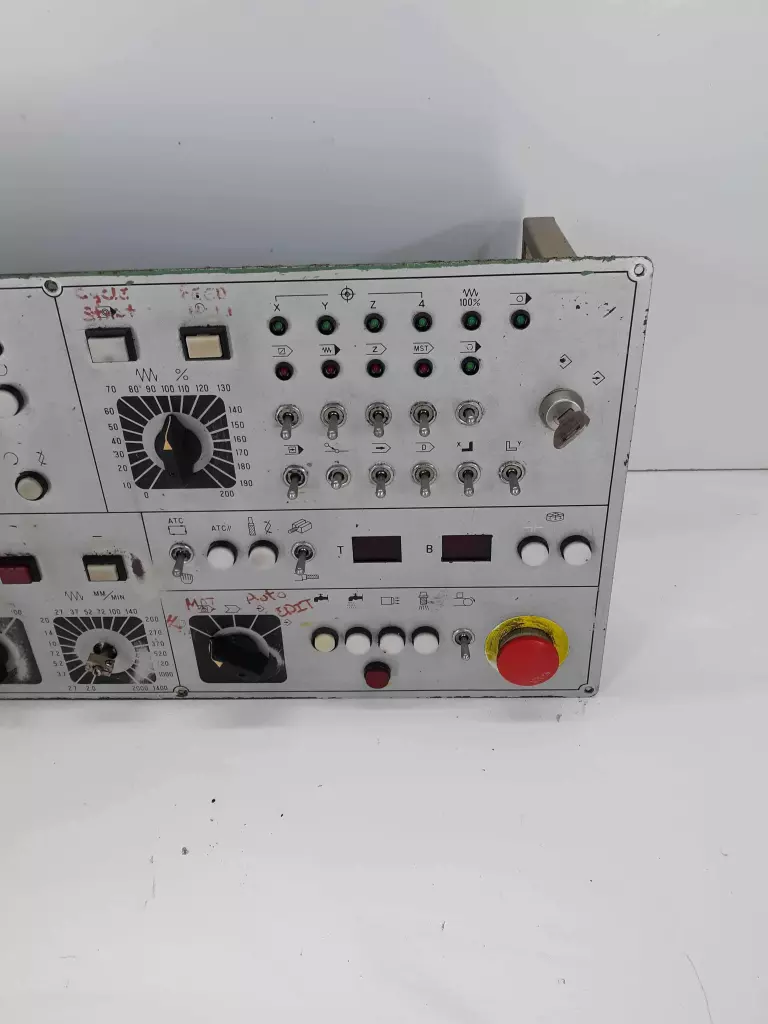

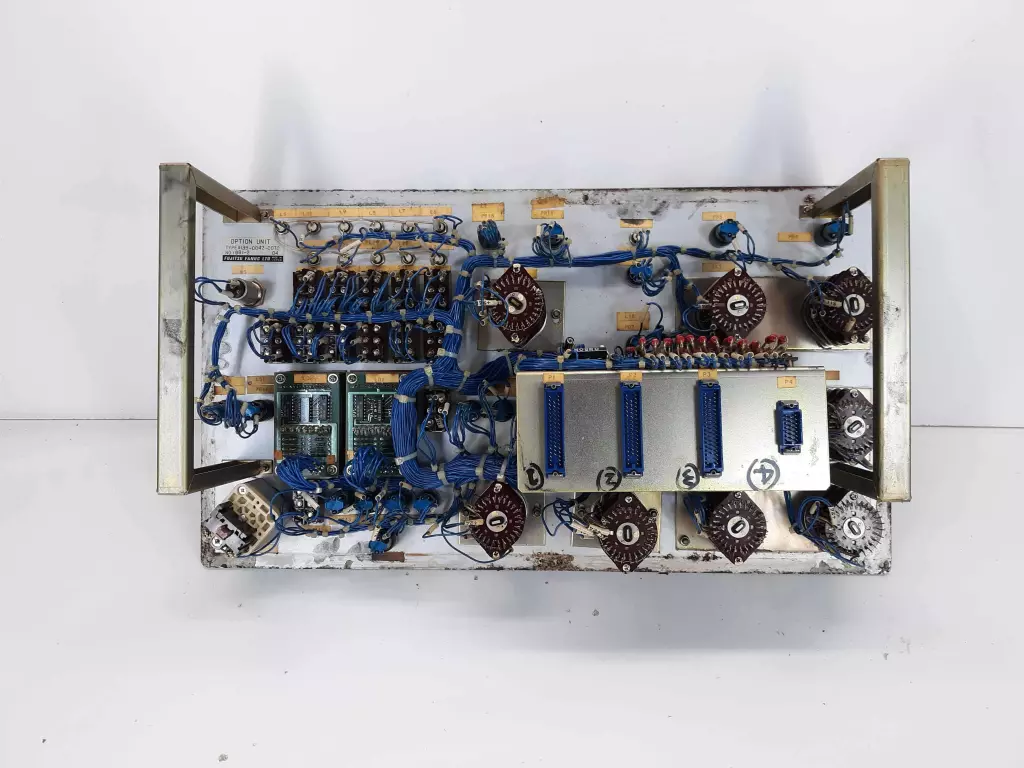

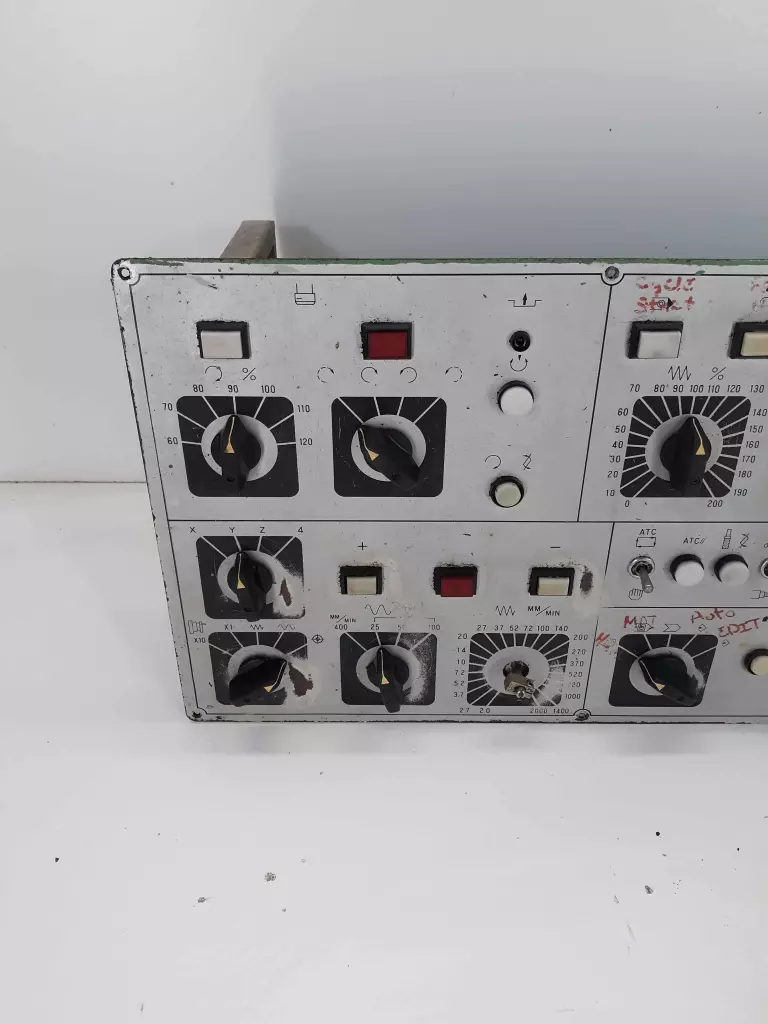

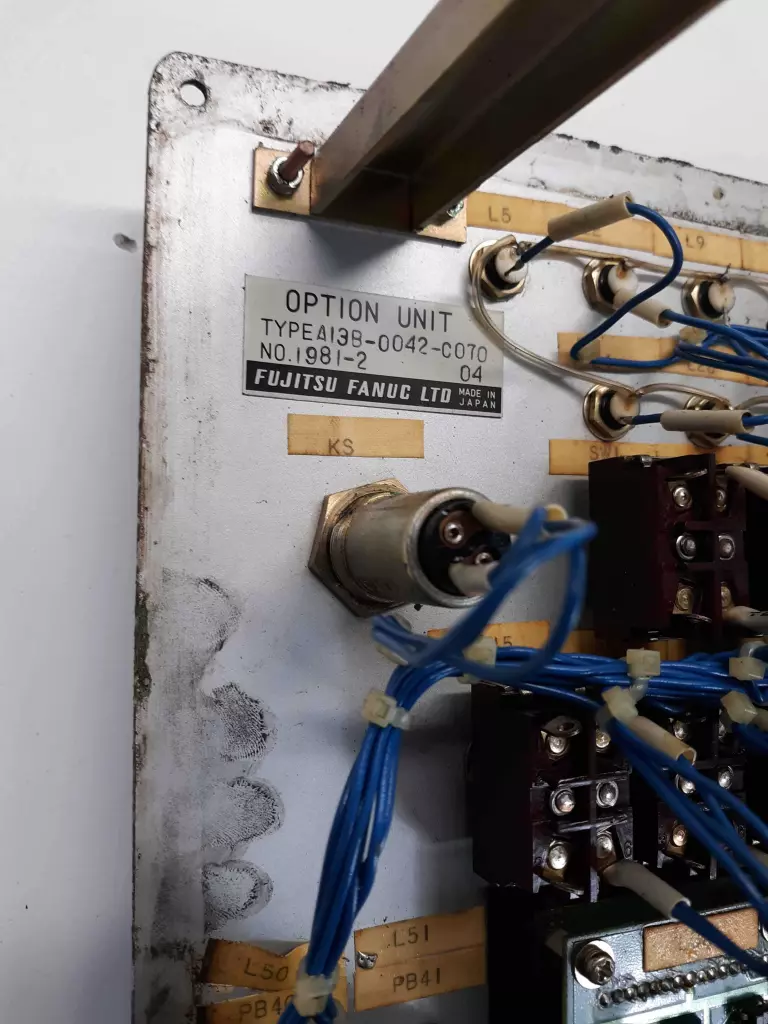

Fanuc A13B-0042-C070 Option Unit Spindle Operator Control Panel

Compact operator interface panel used in conjunction with Fanuc CNC systems to control spindle-related operations. The Fanuc A13B-0042-C070 Option Unit provides dedicated hardware buttons and switches for precise manual spindle and axis control in machine tool environments. Technical Specifications: Manufacturer: Fanuc Model Number: A13B-0042-C070 Component Type: Spindle Operator Control Panel / Option Unit System Compatibility: Fanuc CNC systems (e.g., 0i, 16/18/21 series – check specific machine integration) Functions: Spindle start/stop, speed control, mode selection, manual pulse generator support Front Controls: Tactile push buttons, selector switches, potentiometer (varies by version) Mounting Type: Panel mount Display: Typically none (used as a hardwired input device) Interface: Ribbon cable or I/O connector to CNC control Power Requirements: Supplied via CNC base unit (typically low-voltage logic level) Enclosure: Metal or reinforced industrial-grade plastic front panel Operating Temp Range: 0 to 50 °C Dimensions: Varies (approx. 300 mm × 200 mm panel face) Usage: Milling machines, lathes, machining centers requiring direct spindle/axis manual control Status: Typically used as a legacy or optional accessory; may require custom cable/connector Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   12.00

Depth:   16.00

Length:   26.00

Width:   18.00

SKU:   11443 4.S9.15.6
