In stock 1 available

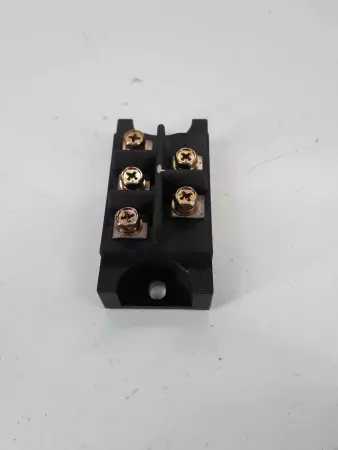

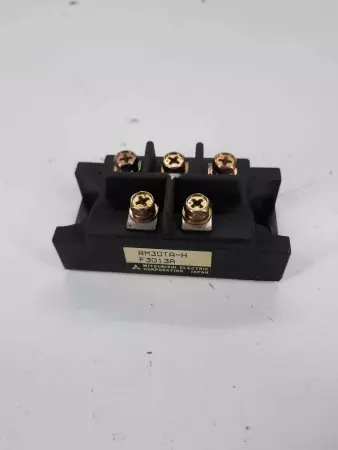

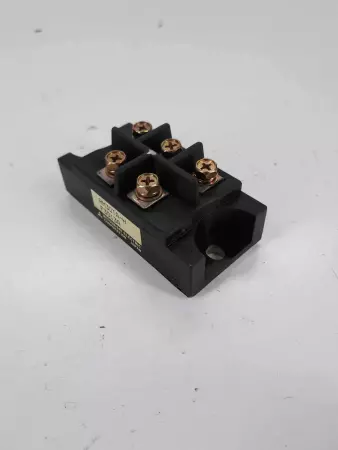

The Mitsubishi Electric RM30TA-H is a high-power diode module designed for use in industrial power conversion systems. It provides efficient rectification and current control in applications such as motor drives, inverters, and uninterruptible power supplies (UPS). Built for durability and thermal stability, it ensures reliable performance under demanding electrical loads. Technical Specifications: Manufacturer: Mitsubishi Electric Corporation Model Number: RM30TA-H Product Type: Power Diode Module Configuration: Dual diode (common cathode) Rated Current: 30 Amps Repetitive Peak Reverse Voltage (VRRM): 1000V Average Forward Current (IF(AV)): 30A per element Forward Voltage Drop (VF): Approximately 1.2V per diode at rated current Reverse Recovery Time: Fast recovery, optimized for high-speed switching Isolation Voltage: 2500V RMS (case to terminal) Package Type: Industrial block module with screw terminals Terminal Type: Copper screw-type terminals for power connections Mounting Style: Chassis mount with insulated baseplate Housing Material: High-strength thermoset plastic for heat and electrical insulation Operating Temperature Range: -40°C to +125°C (-40°F to +257°F) Storage Temperature Range: -40°C to +150°C (-40°F to +302°F) Cooling Method: Conduction cooling via heatsink Applications: UPS systems, motor drives, welding equipment, DC power supplies, and inverter circuits Compliance: Conforms to IEC semiconductor standards Dimensions (Approximate): 94 mm (L) × 34 mm (W) × 30 mm (H) Manufacture Country: Japan Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.90
Depth: 4.00
Length: 6.00
Width: 4.00
SKU: 11780 4.S7.13.3
