In stock 1 available

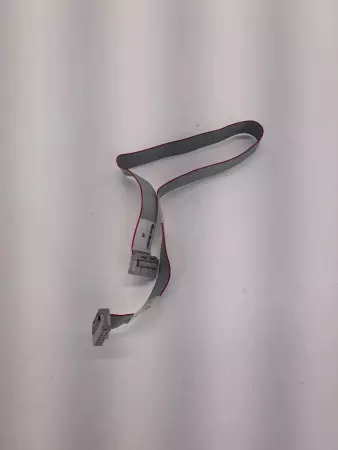

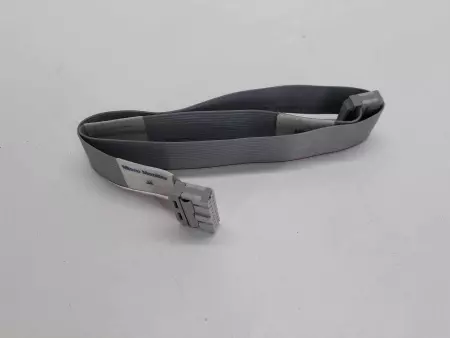

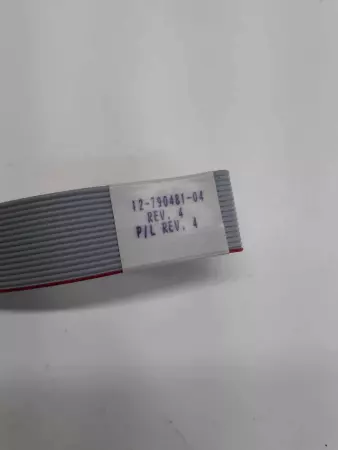

The Liebert Emerson 12-790481-04 REV.4 is a factory-assembled flat ribbon cable designed for internal communication and control signal transmission within Liebert UPS and power management systems. It provides dependable low-voltage connectivity and is built to meet industrial-grade durability and performance standards. Technical Specifications: Manufacturer: Liebert Corporation (Emerson Network Power Division) Model Number: 12-790481-04 Revision: REV.4 Product Type: Flat Ribbon Cable Assembly Function: Internal interconnect cable for signal, communication, or control link between system boards Cable Type: Flat multi-conductor ribbon cable Conductor Count: 26 conductors (typical for this assembly model) Conductor Size: 28 AWG stranded tinned copper Insulation Material: PVC (polyvinyl chloride) gray flat insulation with red stripe to identify pin 1 orientation Connector Type: IDC (Insulation Displacement Connector) 26-pin (2×13) keyed female headers on both ends Connector Pitch: 2.54 mm (0.1 inch) standard Cable Pitch: 1.27 mm (0.05 inch) Cable Length: Approximately 18 inches (457 mm) Voltage Rating: 300V Temperature Rating: -20°C to +105°C (-4°F to +221°F) Impedance: 105 Ω nominal (balanced for data signal integrity) Shielding: Unshielded, suitable for enclosed low-noise system environments Flammability Rating: UL VW-1 compliant insulation Color Code: Gray ribbon cable with red polarity marking Applications: Used in Liebert UPS, power monitoring, and control systems for internal data communication Compliance Standards: UL Recognized Component, CSA Certified, RoHS Compliant Manufacture Country: USA Please review pictures carefully and let us know if you have any questions!
Condition: Used
Weight: 0.90
Depth: 4.00
Length: 6.00
Width: 4.00
SKU: 11814 4.S10.1.4D
