In stock 1 available

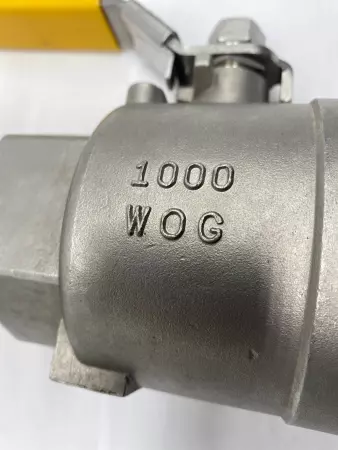

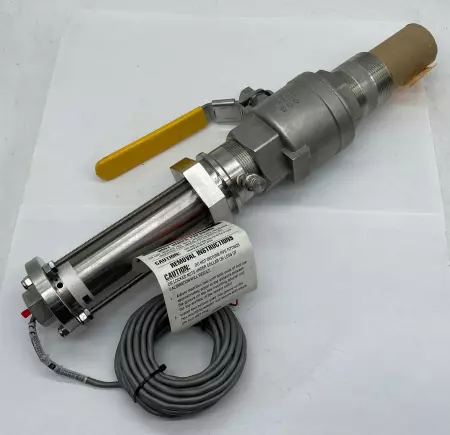

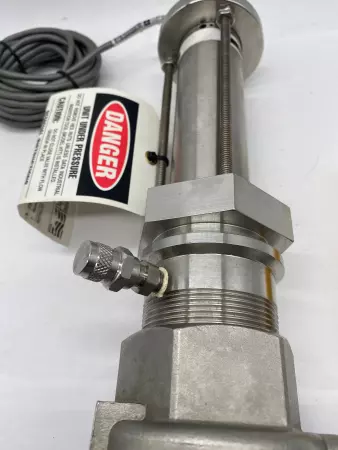

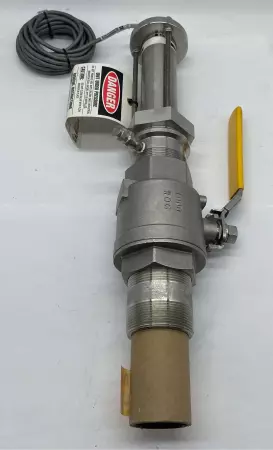

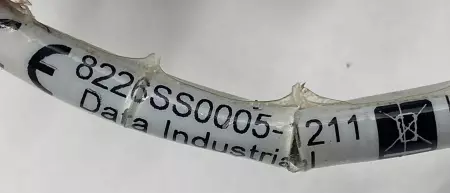

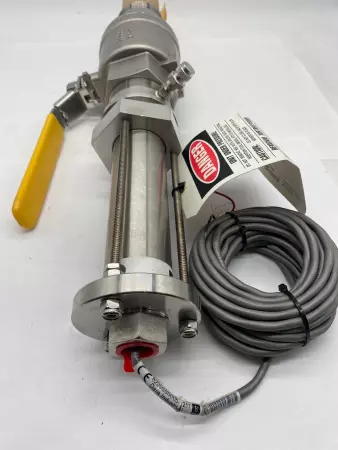

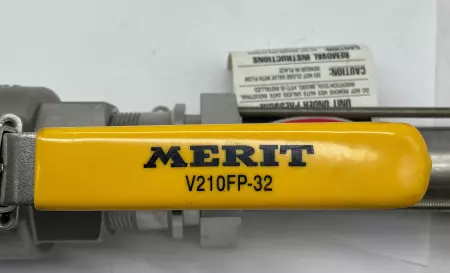

The Veris BGR-8220SS0005-1211 is an insertion-style impeller flow sensor designed for accurate liquid flow measurement in various industrial and commercial applications. This model is suitable for 3-inch and larger pipes and features a stainless steel sleeve for enhanced durability and corrosion resistance. Key Features: Construction: Stainless steel body for high strength and long-lasting performance. Measurement Method: Utilizes a six-bladed impeller with a non-magnetic sensing mechanism, ensuring high accuracy and repeatability. Output Signal: Provides a frequency output proportional to the flow rate, capable of transmission over long distances (up to 2000 feet) without the need for signal amplification. Operating Conditions: Functions within a temperature range of 0°F to 221°F (0°C to 105°C) and can handle pressures up to 400 psi. Accuracy: ±1% of full scale, with a repeatability of ±0.3%. Merit Brass 3-Inch Ball Valve: This unit is paired with a Merit Brass 3-inch stainless steel ball valve, a full-port valve designed for optimal flow control. Material: Constructed from stainless steel 316 for excellent corrosion resistance. Design: Three-piece, full-port configuration ensures minimal pressure drop and easy maintenance. Pressure Rating: Capable of handling up to 1000 psi (WOG - Water, Oil, Gas). Temperature Tolerance: Operates effectively between -40°F and 400°F (-40°C to 204°C).
Condition: Used
Weight: 16.00
Depth: 12.00
Length: 12.00
Width: 24.00
SKU: 122617 4.S4.1.1
