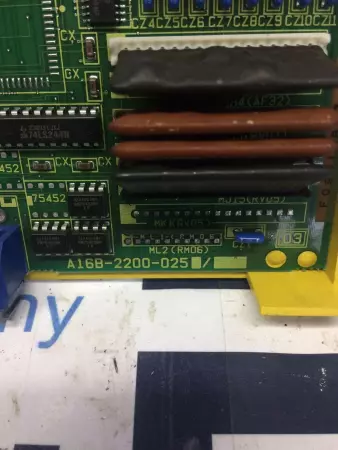

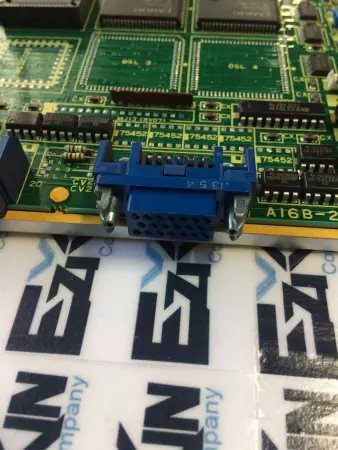

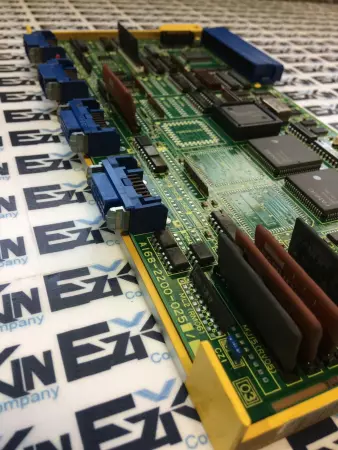

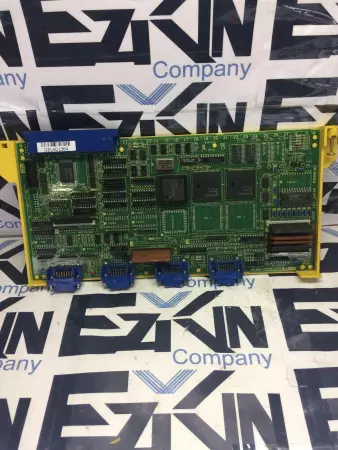

Fanuc A16B-2200-025 4-Axis Control Circuit Board

The Fanuc A16B-2200-025 is a 4-axis control circuit board designed to provide coordinated motion control for up to four servo axes in Fanuc CNC systems. It ensures precise and synchronized axis movement essential for high-performance machining and automation tasks. Board Type: 4-Axis Control Circuit Board Model: A16B-2200-025 Function: Controls and synchronizes up to 4 servo motor axes System Compatibility: Fanuc Series 0, 15, and compatible CNC systems Axis Control: 4-axis simultaneous control capability Feedback Input: Supports encoder signal feedback from Fanuc servo motors Command Output: Pulse train outputs to servo amplifiers Interface: Connects via system bus to main CPU and servo drives Power Supply: 5V DC from CNC controller backplane Mounting: Plug-in rack-mounted PCB Cooling: Passive, cabinet-ventilated Dimensions: Approx. 350 mm x 130 mm OEM Part Number: A16B-2200-025 Operating Temperature: 0°C to 50°C Compliance: Built to Fanuc industrial standards for motion control accuracy and reliability Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   1235 4.S8.7.1A
