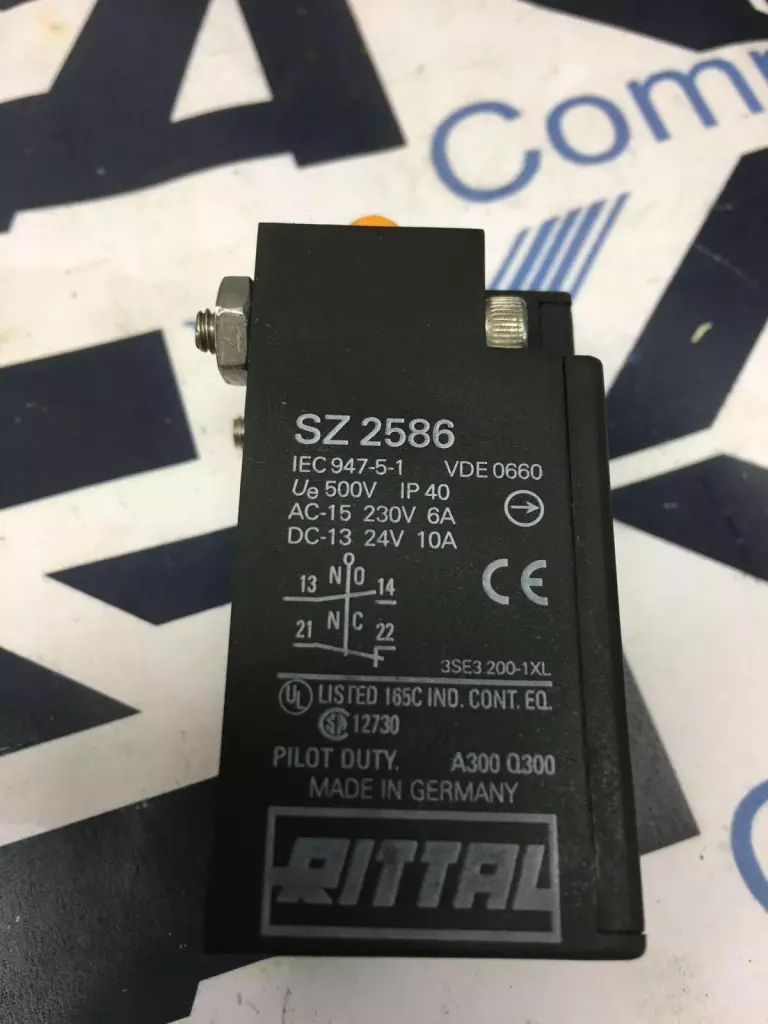

Rittal SZ 2586 Limit Switch AC-15 230V 6Amp DC-13 24V 10Amp

The Rittal SZ 2586 is a compact and durable limit switch designed for use in industrial enclosures and automation systems. It is commonly employed to detect door positions, interlock mechanisms, or position status in control panels and safety circuits. Model: SZ 2586 Standards: EN 60947-5-1, IP65 rated AC Rating: AC-15 230V / 6A DC Rating: DC-13 230V / 0.3A Contact Type: 1 NO + 1 NC Actuation: Plunger actuator Switch Type: Snap-action Mounting: Panel mount with screw terminals Operating Temperature: -25°C to +70°C Housing Material: High-impact thermoplastic Connection: Screw terminals Dimensions: Approx. 64 mm x 30 mm x 26 mm Manufacturer: Rittal GmbH & Co. KG Application: Enclosure safety, door interlock, limit detection in automation systems Compliance: CE marked, conforms to IEC/EN 60947 standards Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   16.00

Length:   12.00

Width:   10.00

SKU:   1248 4.S5.16.4
