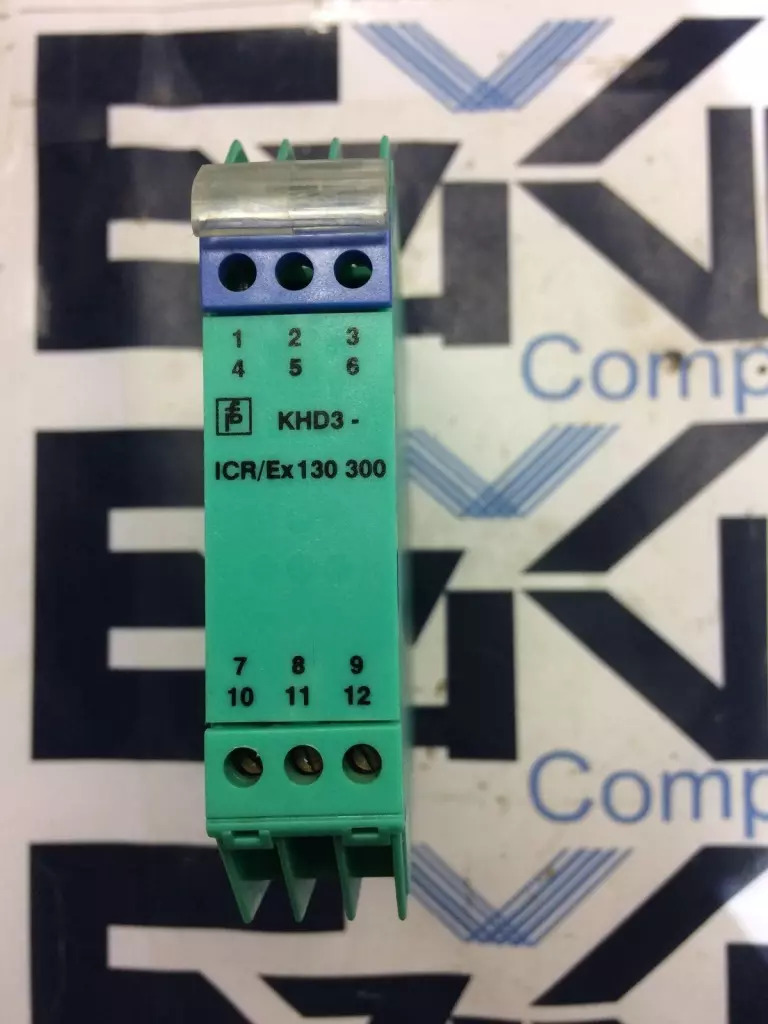

Pepperl + Fuchs KHD3-ICR/EX 130 300 Transformer Isolated Repeater K Series

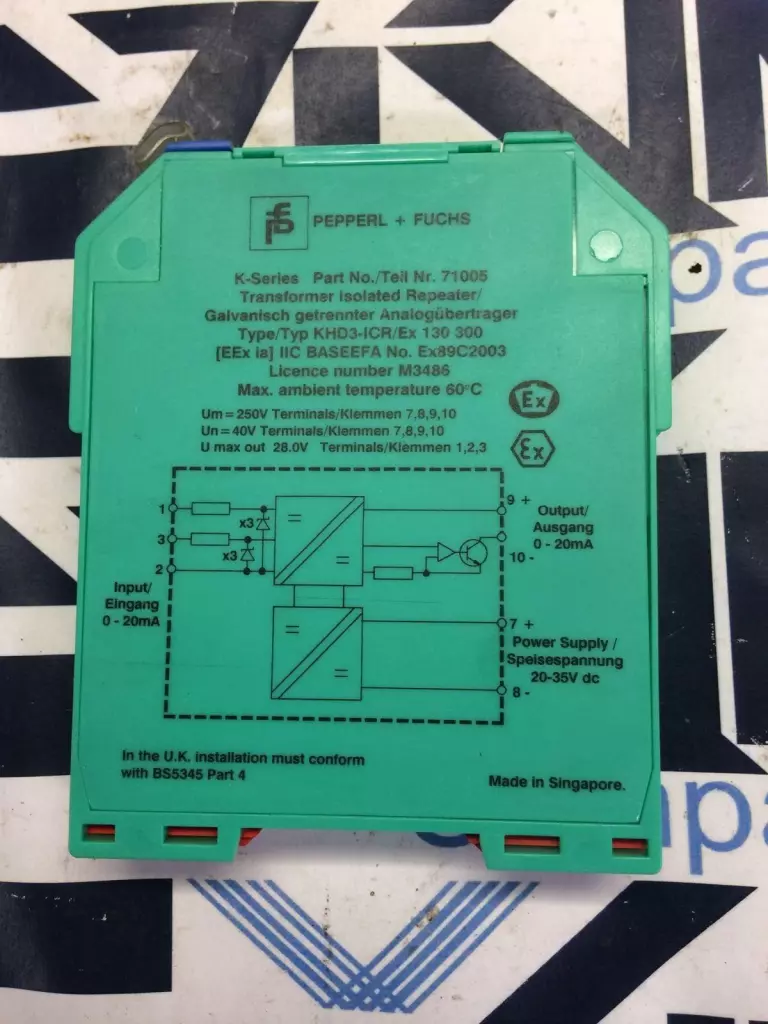

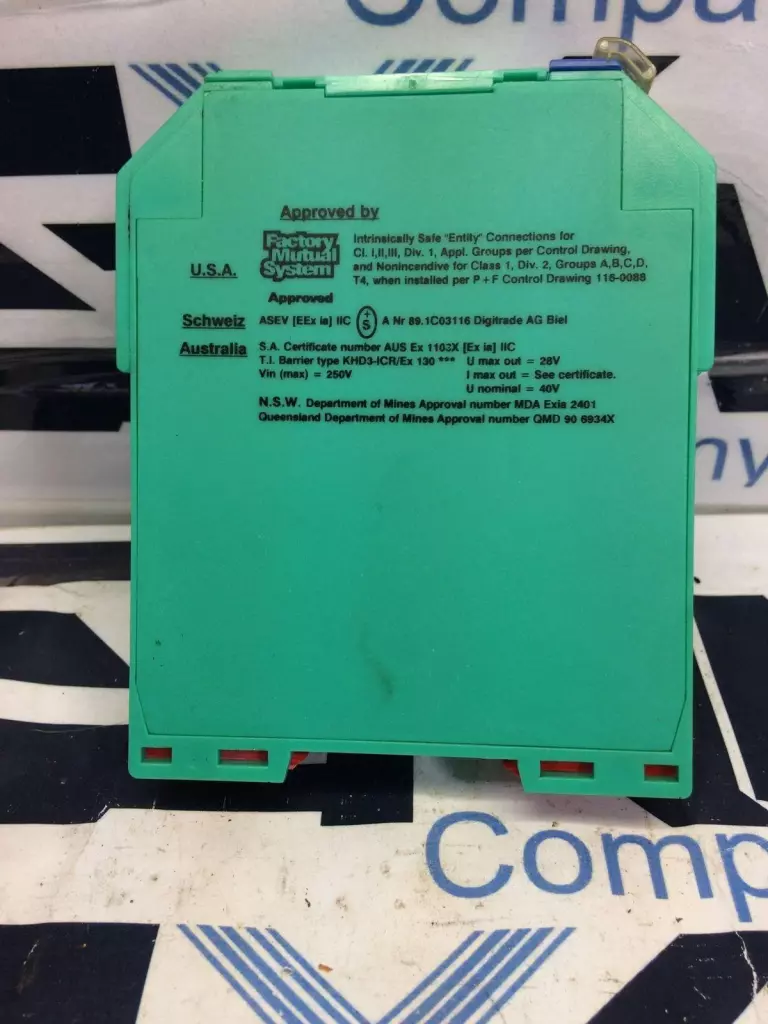

Compact, DIN-rail mountable isolated signal repeater designed for use in hazardous areas, providing galvanic isolation and reliable signal transmission for analog input/output signals between field devices and control systems. Power Supply: 20…35 V DC via Power Rail or terminals Input Signal: 4…20 mA (active/passive selectable) Output Signal: 4…20 mA (active) Transmission: 1:1 (input = output) Galvanic Isolation: 3-way (input/output/power supply), 2 kV Accuracy: ≤ ±0.1 % of full-scale Response Time: ≤ 10 ms Load Resistance (Output): ≤ 600 Ω Input Voltage Drop: ≤ 1.8 V (active), ≤ 24 V (passive) Mounting: DIN rail (EN 60715) Dimensions (W x H x D): 12.5 x 114 x 115 mm Ambient Temperature: -20 °C to +60 °C Protection Degree: IP20 Approvals: ATEX, IECEx, FM, CSA (for use in Ex zone 2/Div 2 areas) Housing: Polycarbonate, green enclosure Series: K-System Please review pictures carefully and let us know if you have any questions!
