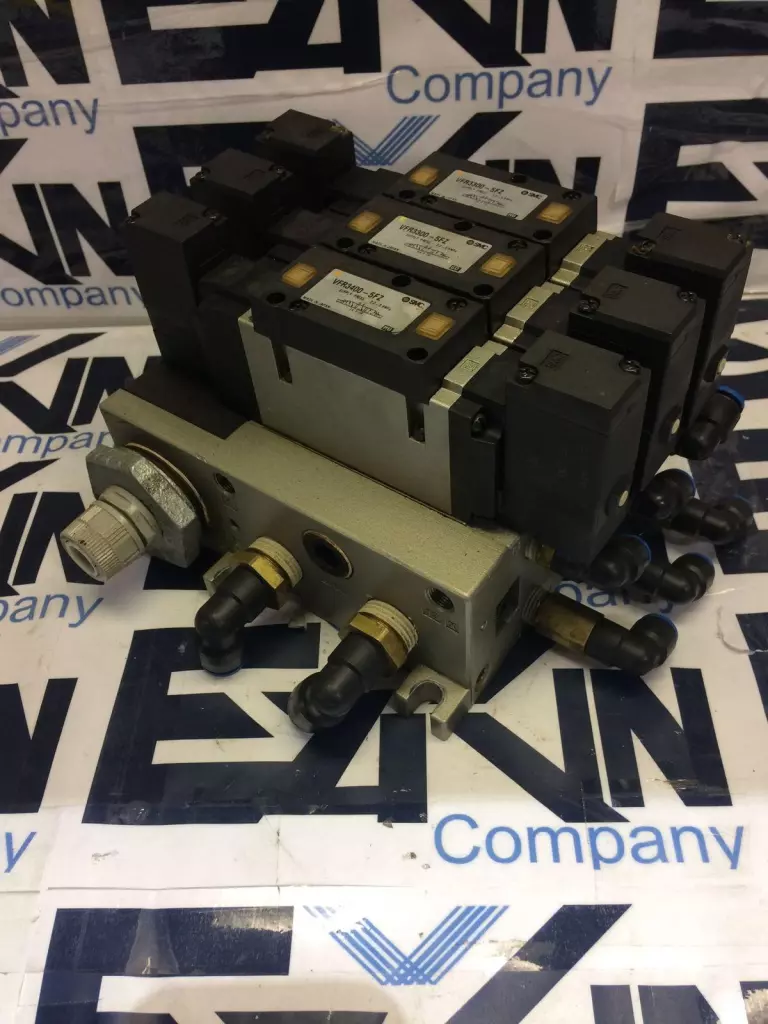

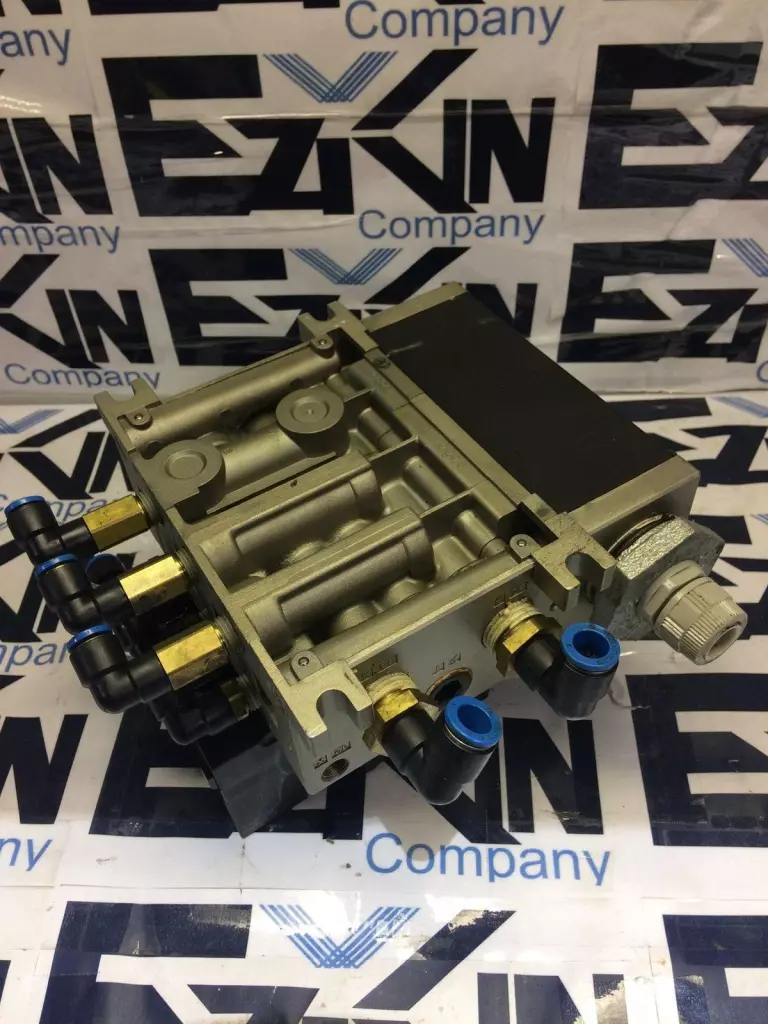

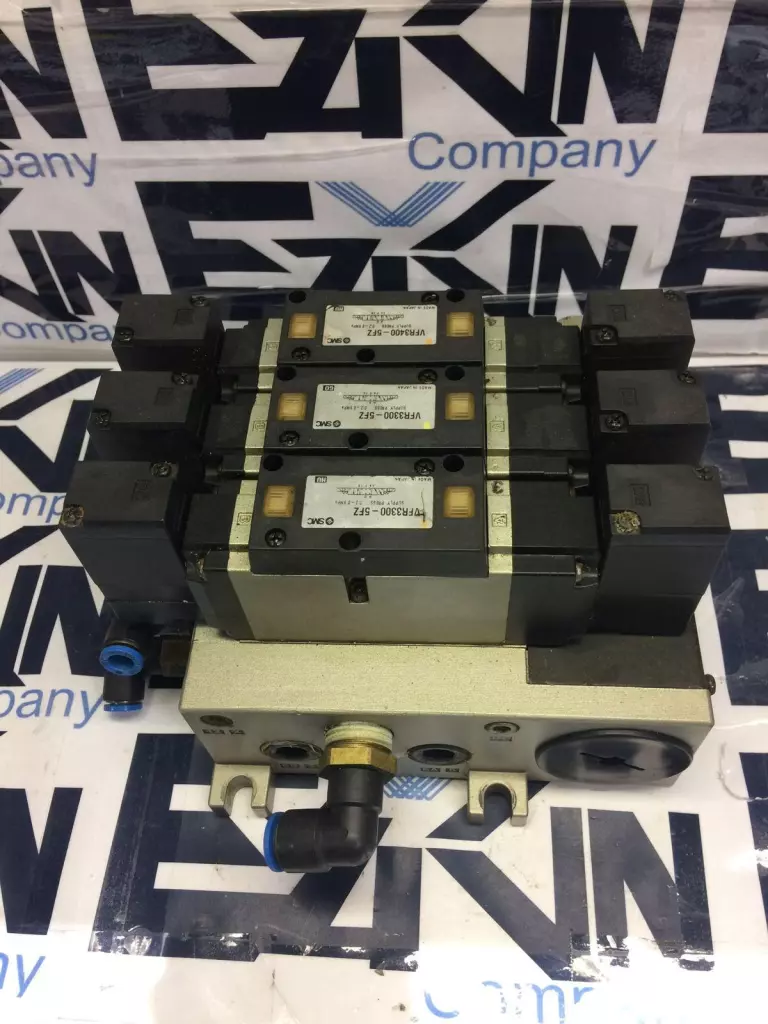

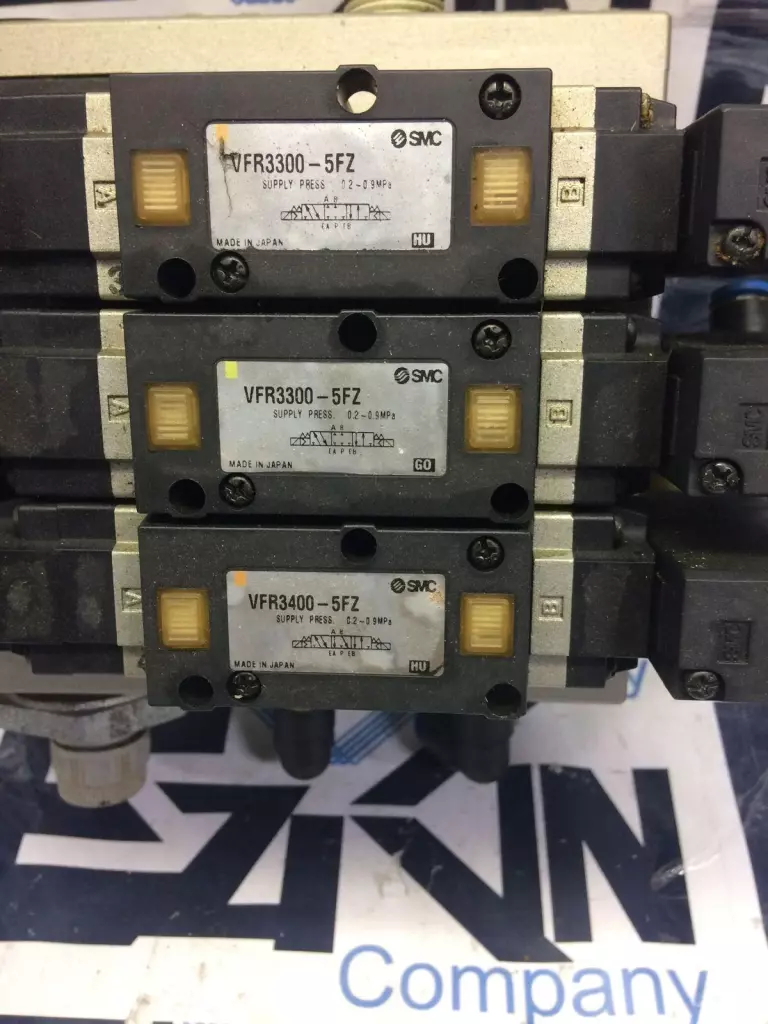

SMC VFR3400-5FZ Solenoid 3-Valve Assembly W/Manifold

SMC VFR3400-5FZ is a solenoid-operated 5-port air valve designed for controlling pneumatic actuators, commonly used in industrial automation systems. It is part of the VFR3000 series and comes preassembled with a manifold for compact multi-valve setups.

Model: VFR3400-5FZ
Type: 5-Port Solenoid Valve
Action: Internal Pilot Type
Valve Type: 3-Position, Closed Center
Port Size: 1/4" (Rc, NPT or G depending on variant)
Operating Pressure Range: 0.2 to 1.0 MPa
Max Operating Pressure: 1.0 MPa
Pilot Pressure: 0.25 to 0.9 MPa
Voltage: Typically 24VDC or 100/110VAC or 200/220VAC (depends on coil selected)
Power Consumption: 0.35W (DC, with power-saving circuit), 1.0W (standard)
Response Time: Approx. 20 ms (varies by pressure and load)
Lubrication: Not required
Mounting: Manifold Mounted
Manifold Type: Common pressure supply with individual exhausts
Ambient and Fluid Temperature: –10 to 50°C (no freezing)
Manual Override: Locking or non-locking type
Manufacturer: SMC Corporation
Series: VFR3000 Series
Manifold: Included (typically aluminum base with side ports)
Application: Pneumatic actuator control in industrial automation systems Please review pictures carefully and let us know if you have any questions!
