Coti Inc. TC33 Electronic Weigh Sensor, 5KLb Capacity

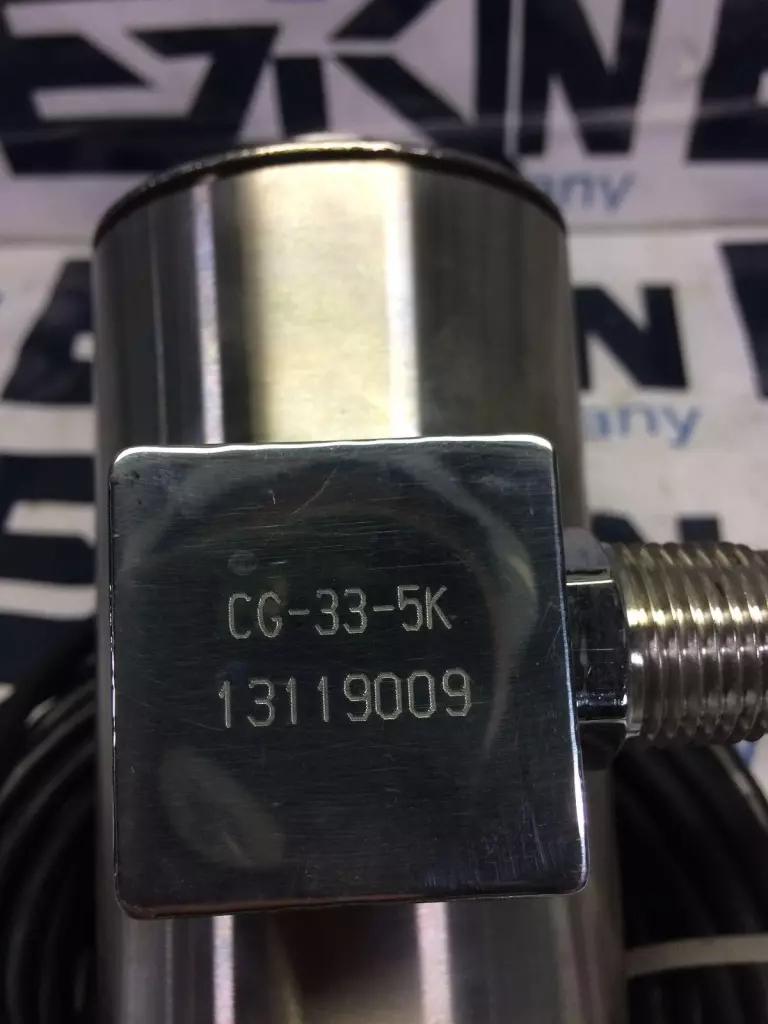

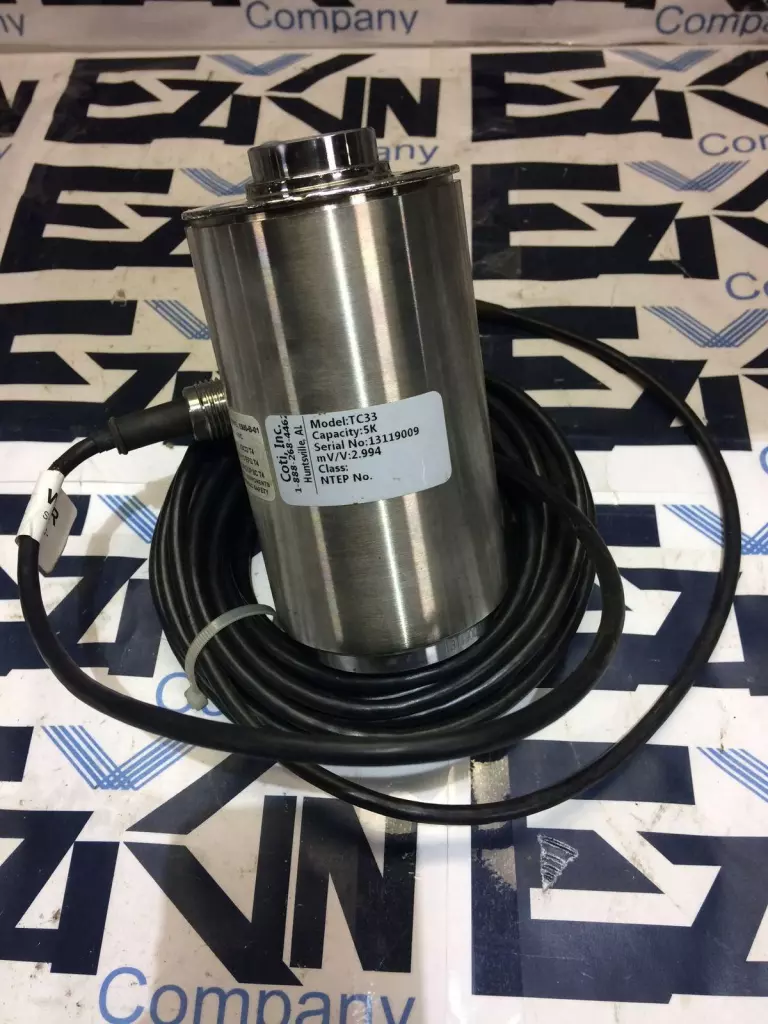

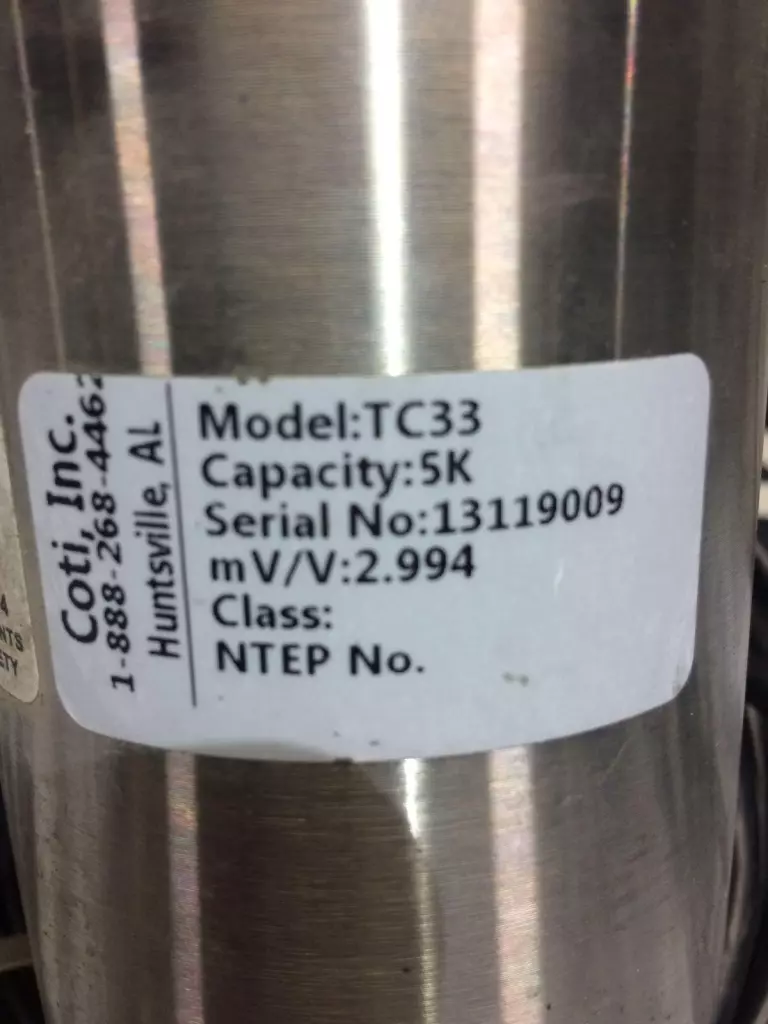

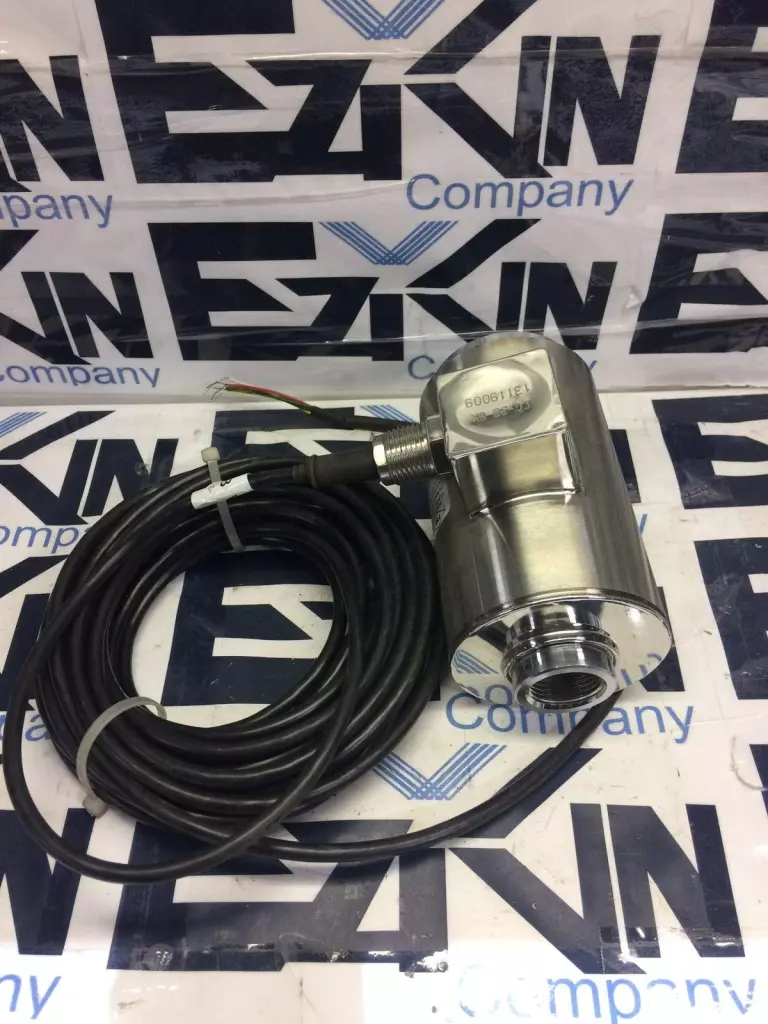

Coti Inc. TC33 is a high-accuracy electronic weigh sensor (load cell) designed for force and weight measurement in industrial applications such as tank weighing, hopper scales, and structural monitoring. Model: TC33 Type: Electronic Load Cell / Weigh Sensor Capacity: 5,000 lbs (5K) Output Sensitivity: 2.994 mV/V Excitation Voltage: Typically 10 VDC (recommended), up to 15 VDC max Accuracy Class: NTEP Certified (legal-for-trade, per NIST Handbook 44) Material: Stainless Steel Cable: Integral multi-core shielded cable Application: Industrial weighing systems, force measurement, load control Mounting: Threaded ends or through-hole mounting (based on application) Manufacturer: Coti, Inc. Serial Number: 13119009 Location: Saraland, AL, USA

Condition: Used

Weight:   7.08

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   1317 4.S7.1.2
