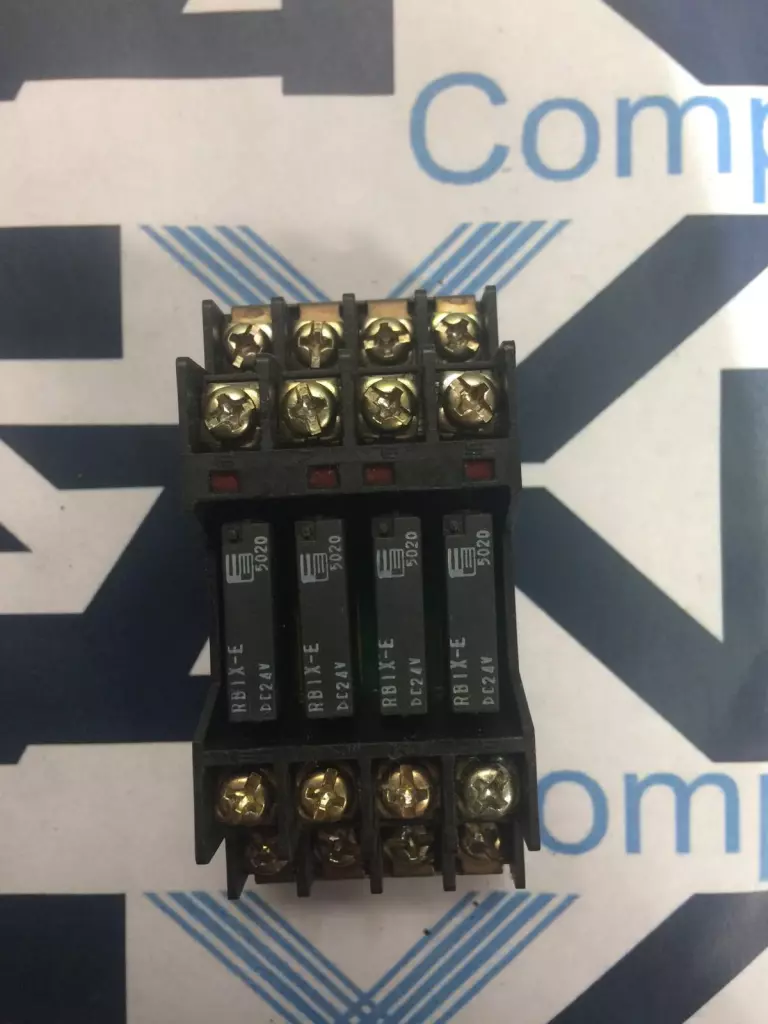

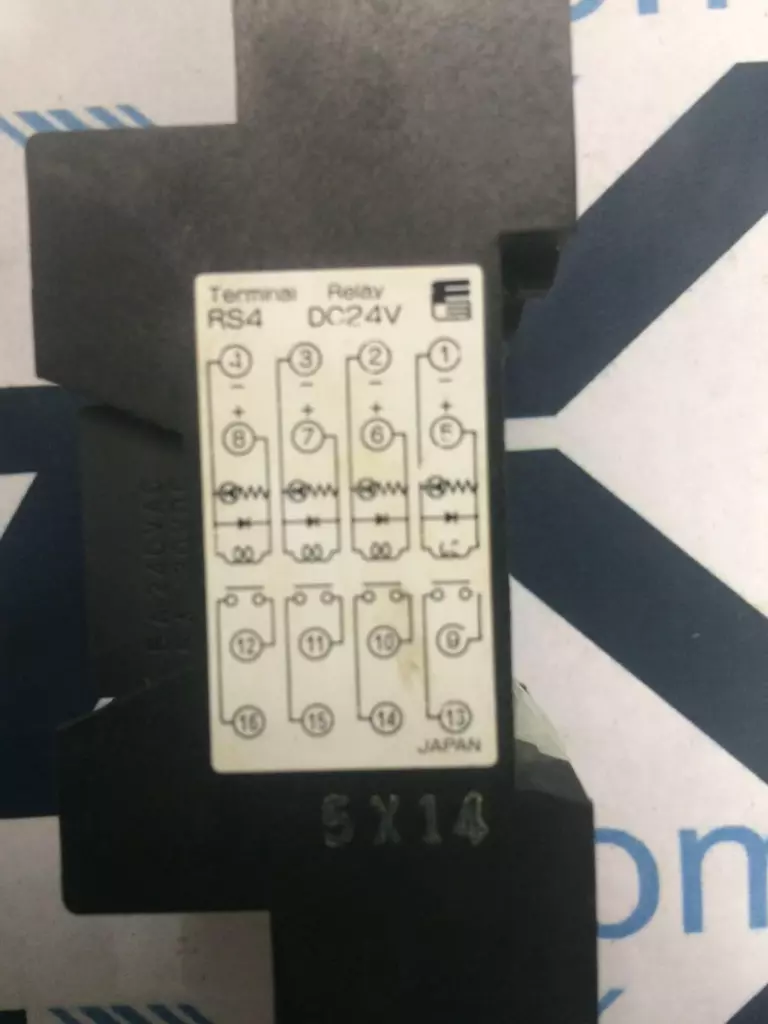

Fuji Electric RS4 DC24V 4-Relay Terminal Block

Fuji Electric RS4 DC24V is a compact relay terminal block featuring 4 individual relays, designed for control panel integration in automation systems. Model: RS4 Type: 4-Relay Terminal Block Relay Coil Voltage: 24 VDC Number of Relays: 4 Contact Configuration: SPDT (1 Form C) per relay Rated Load: Typically 5A @ 250VAC / 30VDC (per relay) Coil Power Consumption: Approx. 0.5 to 0.6 W per relay Insulation Resistance: ≥100 MΩ (500 VDC) Dielectric Strength: 1,500 VAC for 1 min (between coil and contact) Mounting: DIN rail or panel mount Terminal Type: Screw terminals LED Indicator: Built-in for each relay (coil status) Material: Flame-retardant plastic base with copper alloy contacts Application: Control signal interfacing, PLC output extension, circuit isolation Manufacturer: Fuji Electric Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.10

Depth:   4.00

Length:   6.00

Width:   4.00

SKU:   1337 4.S9.10.2
