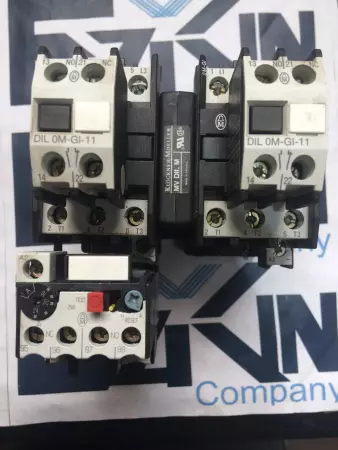

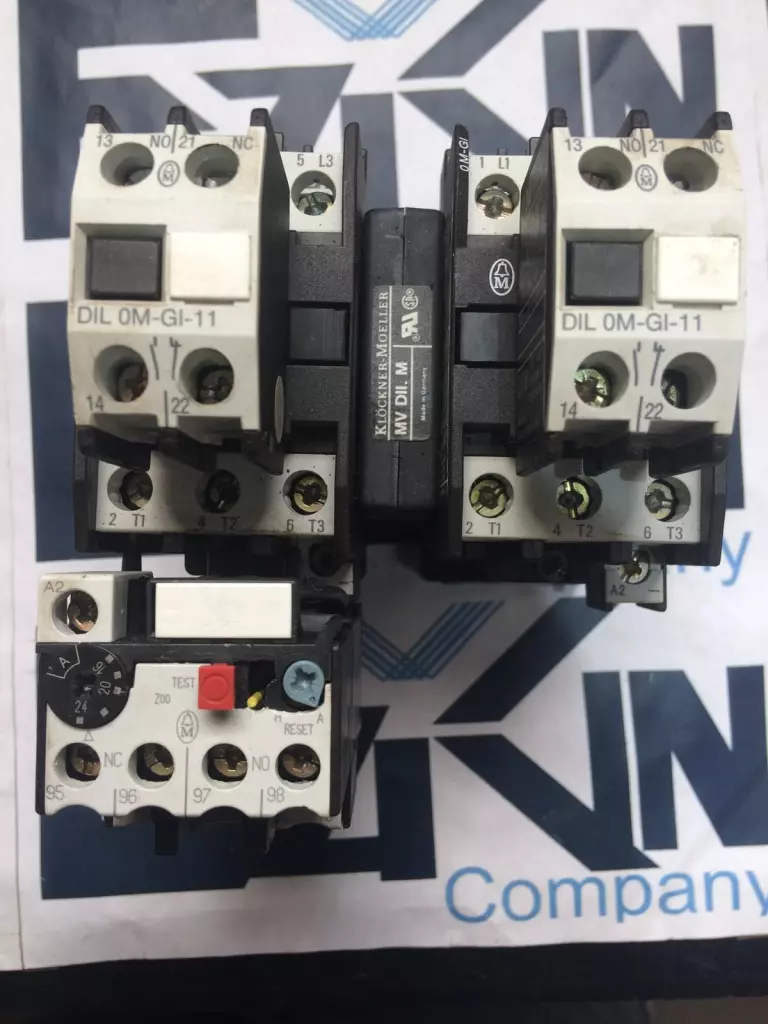

Moeller DIL0M-GI-11 Contactor Assembly W/Overload Relay 16-24Amp

Moeller DIL0M-GI-11/MV DIL M /Z00-24 is a compact contactor and overload relay assembly designed for motor control and protection applications in industrial electrical systems. Model: DIL0M-GI-11/MV DIL M /Z00-24 Type: Contactor with Overload Relay Assembly Contactor Series: DIL M Auxiliary Contacts: 1 NO + 1 NC (11) Control Voltage: 24V (AC or DC depending on coil type) Main Contact Rating: AC-3 duty, up to 7.5 kW @ 400V Current Rating: 16–24 A (adjustable via overload relay) Overload Relay Type: Z00-24 Trip Class: Class 10 Protection Type: Thermal overload (bimetallic elements) Mounting: DIN rail or panel mount Terminal Type: Screw terminals Standards: IEC 60947-4-1, UL, CSA Application: Motor starters, pump and fan control, industrial automation Manufacturer: Moeller (now part of Eaton) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   3.12

Depth:   8.00

Length:   8.00

Width:   8.00

SKU:   1362 4.S9.9.1
