General Electric TED134050WL 3-Pole Circuit Breaker. 50Amp 240-480VAC

General Electric TED134050WL is an industrial-grade molded case circuit breaker designed for heavy-duty protection in power distribution systems.

Model: TED134050WL
Type: Industrial Molded Case Circuit Breaker (MCCB)

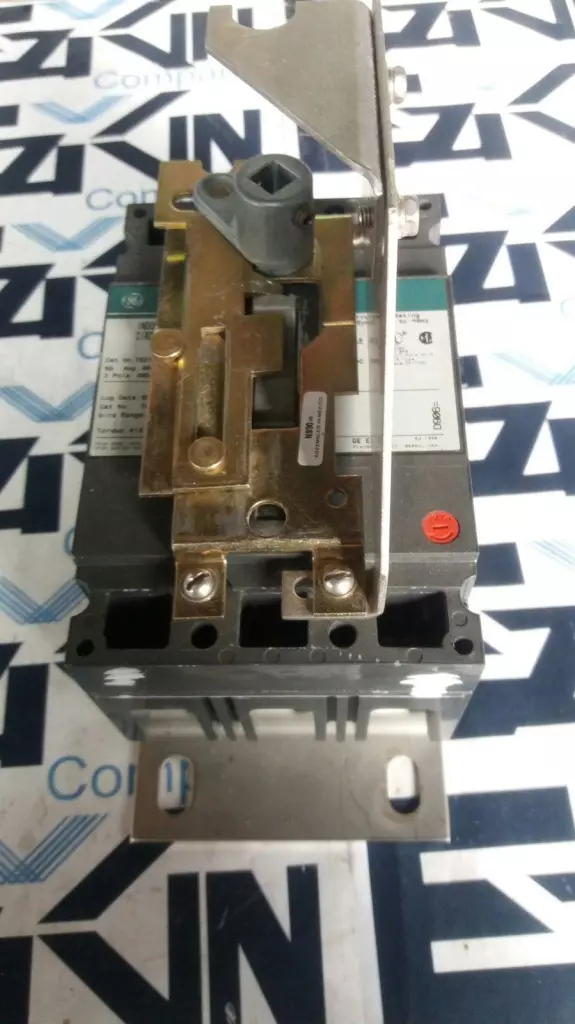

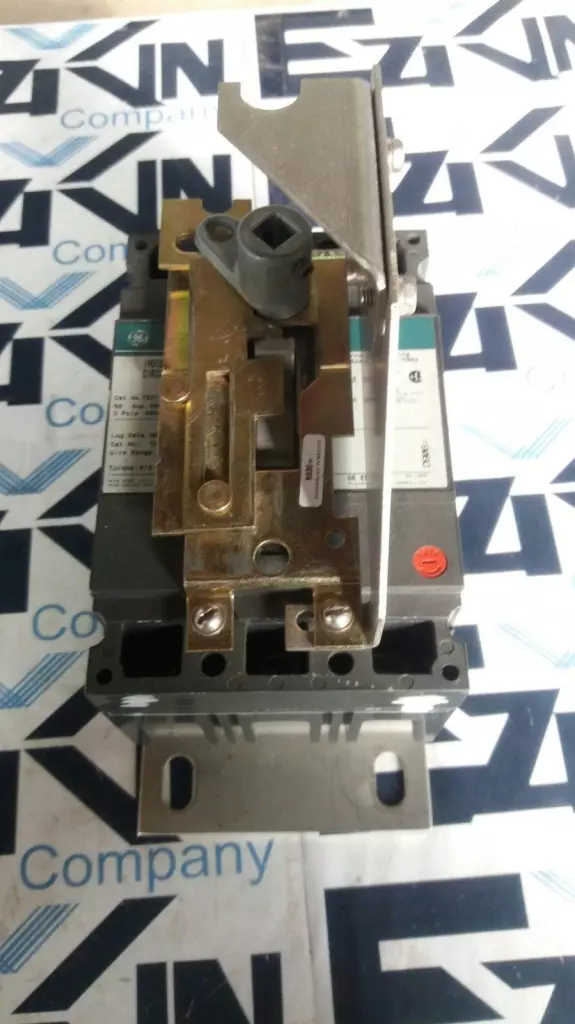

Rotating knob operated
Poles: 3
Rated Current: 50 Amp
Voltage Rating: 240/480 VAC, 250 VDC
Interrupting Capacity:
– 18 kA @ 240 VAC
– 14 kA @ 480 VAC
– 10 kA @ 250 VDC
Frequency: 50/60 Hz
Trip Type: Thermal Magnetic
Frame Type: TED
Wire Range: #14 – #3 CU, #12 – #1 AL
Torque: 45 lb-in for #14 – #1 wires
Mounting: Bolt-on
Lug Type: TCAL12
Standards: UL Listed, CSA Certified
Manufacturer: General Electric (GE ED&C – Plainville, CT, USA)

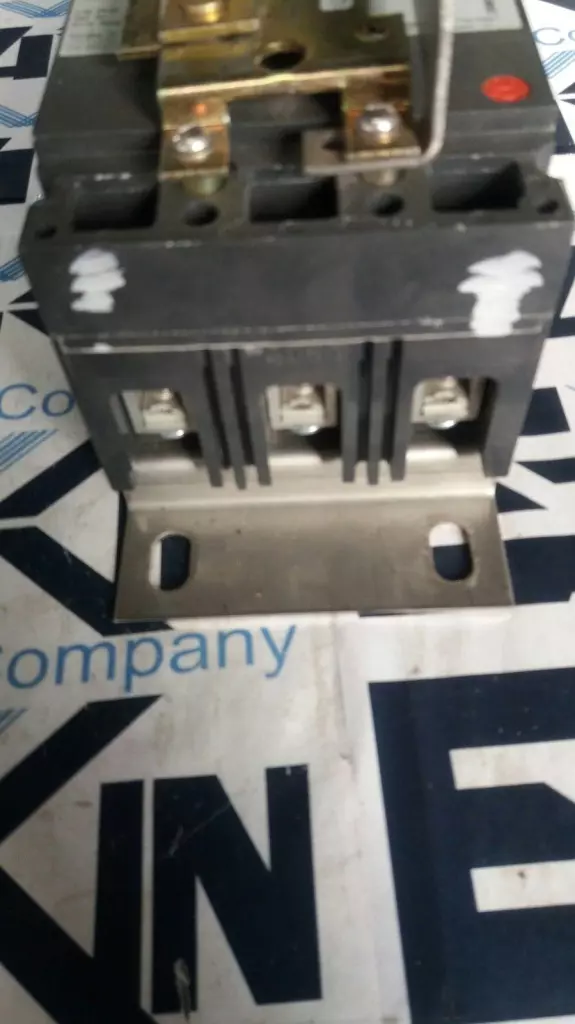

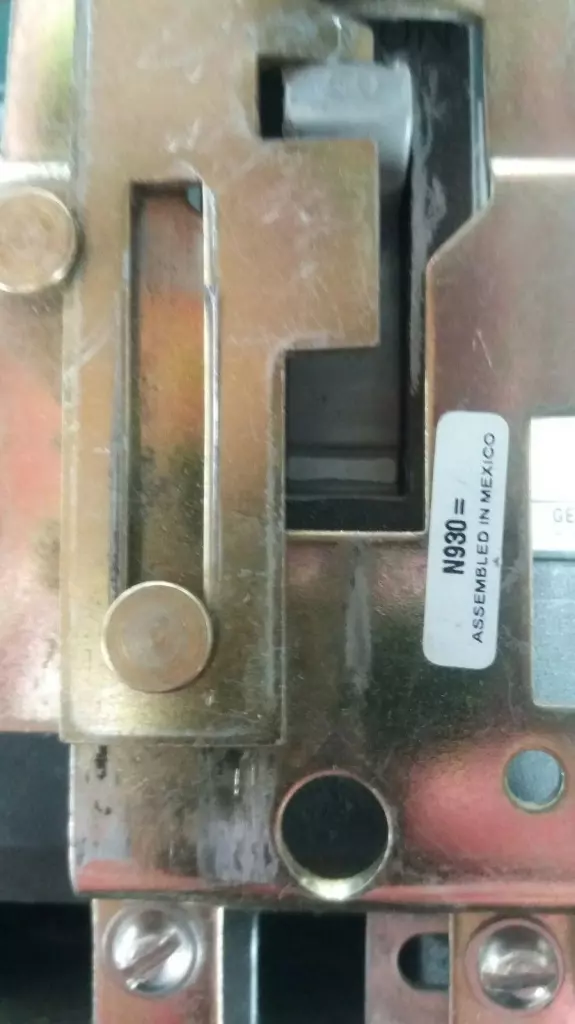

Application: Panelboard and switchgear protection in industrial and commercial power systems Please review pictures carefully and let us know if you have any questions!
