Fanuc A16B-1211-0030/04A Circuit Board

The Fanuc A16B-1211-0030/04A is a printed circuit board used in Fanuc CNC control systems, typically functioning as a main CPU or system control board depending on configuration. It provides processing and interface control for CNC operations.

Technical Specifications:

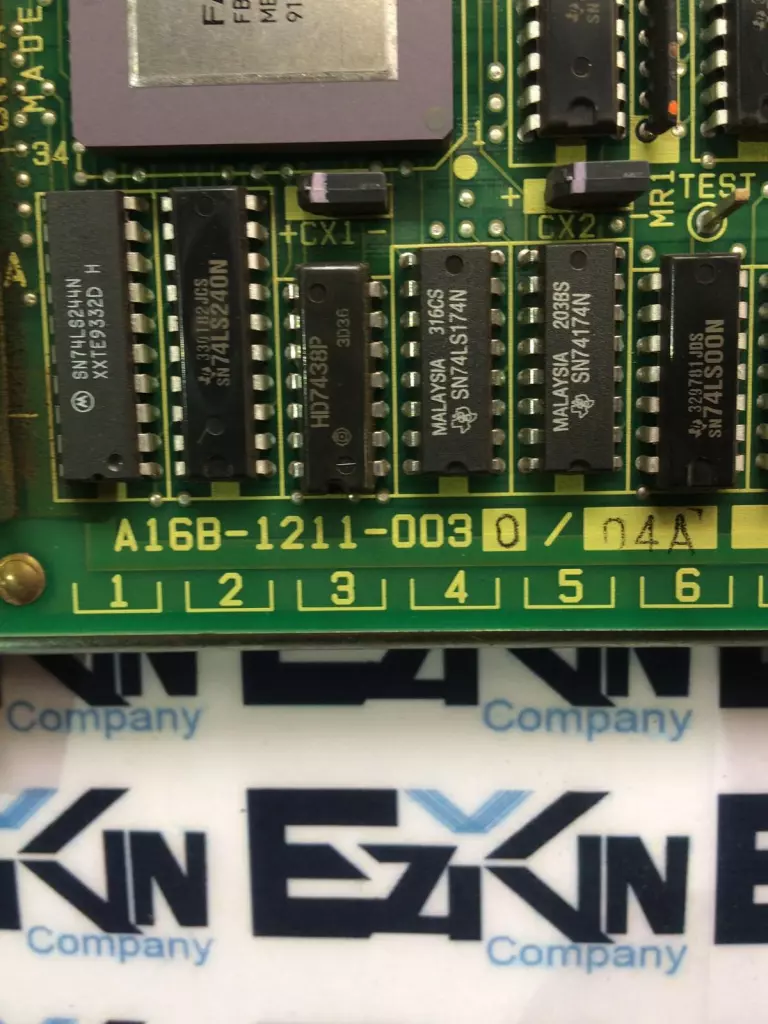

Part Number: A16B-1211-0030/04A
Manufacturer: Fanuc
Board Type: System Control / CPU Circuit Board
Function: Handles CNC logic, data processing, and I/O interfacing
Revision: /04A (indicates firmware or hardware version)
Input Voltage: Supplied via backplane from system power unit
Communication: Includes multiple serial and I/O interface channels
Compatible Systems: Fanuc Series 0, Series 6, and others depending on configuration
Mounting: Slot-in rack or backplane-mounted
Cooling: Passive or assisted via system airflow
Form Factor: Multi-layer PCB with connector headers
Memory: Includes EPROM/EEPROM slots for firmware and parameters
Weight: Approx. 0.5 kg
Use Case: Central control in CNC machines and industrial automation Please review pictures carefully and let us know if you have any questions!
