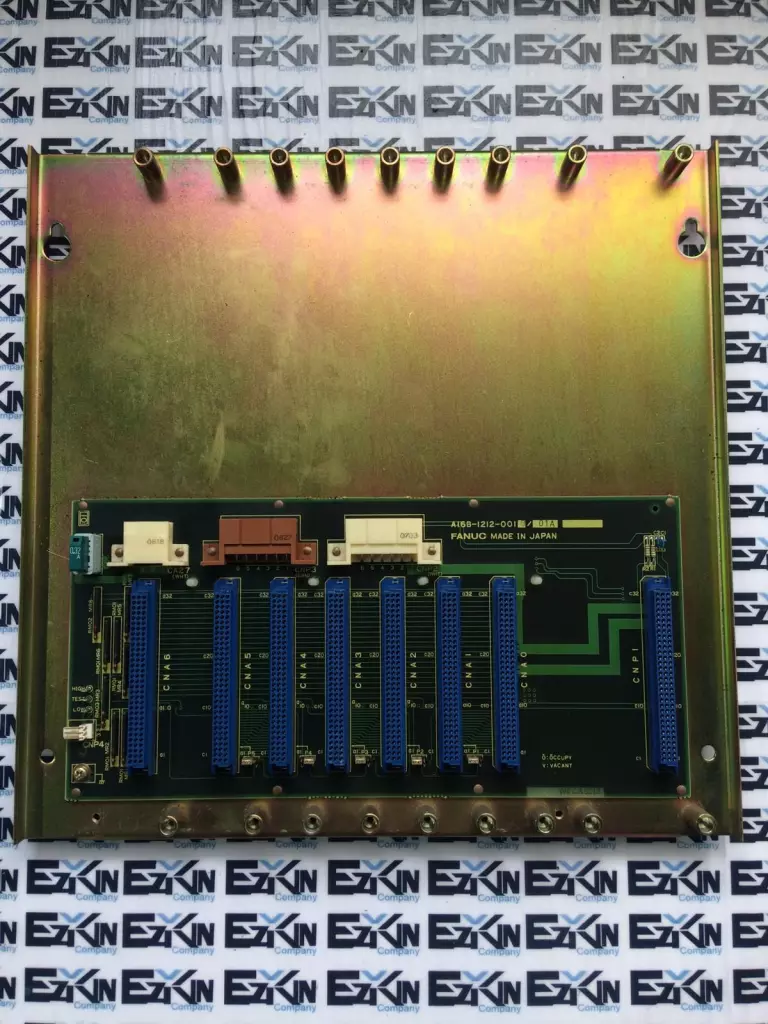

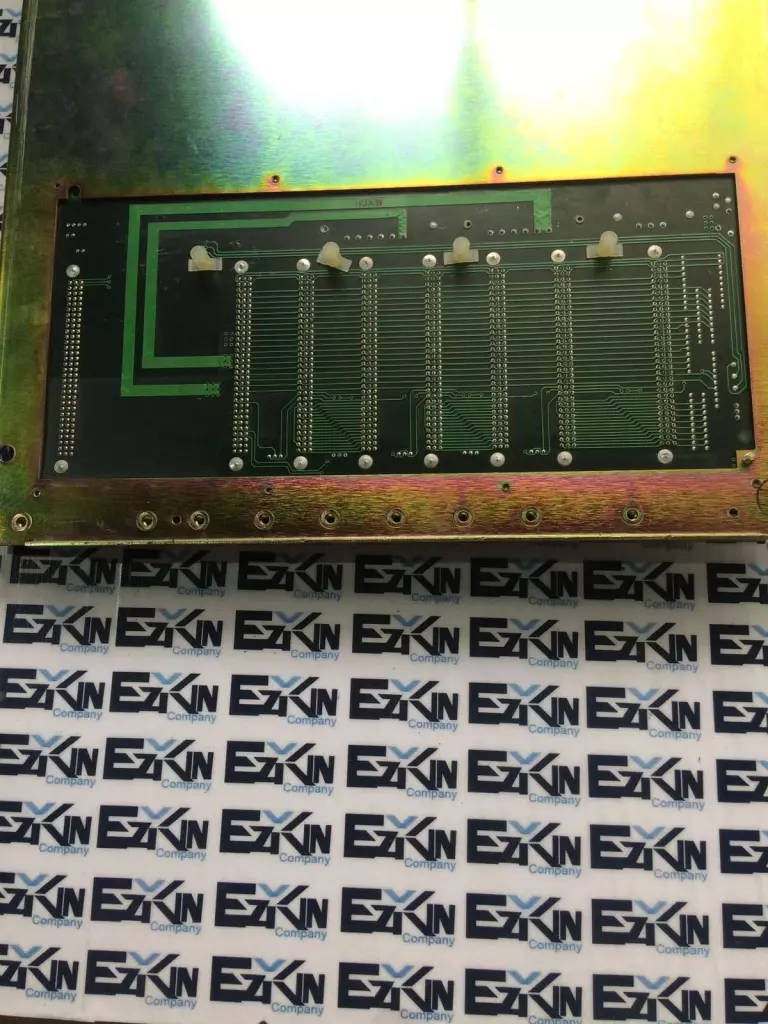

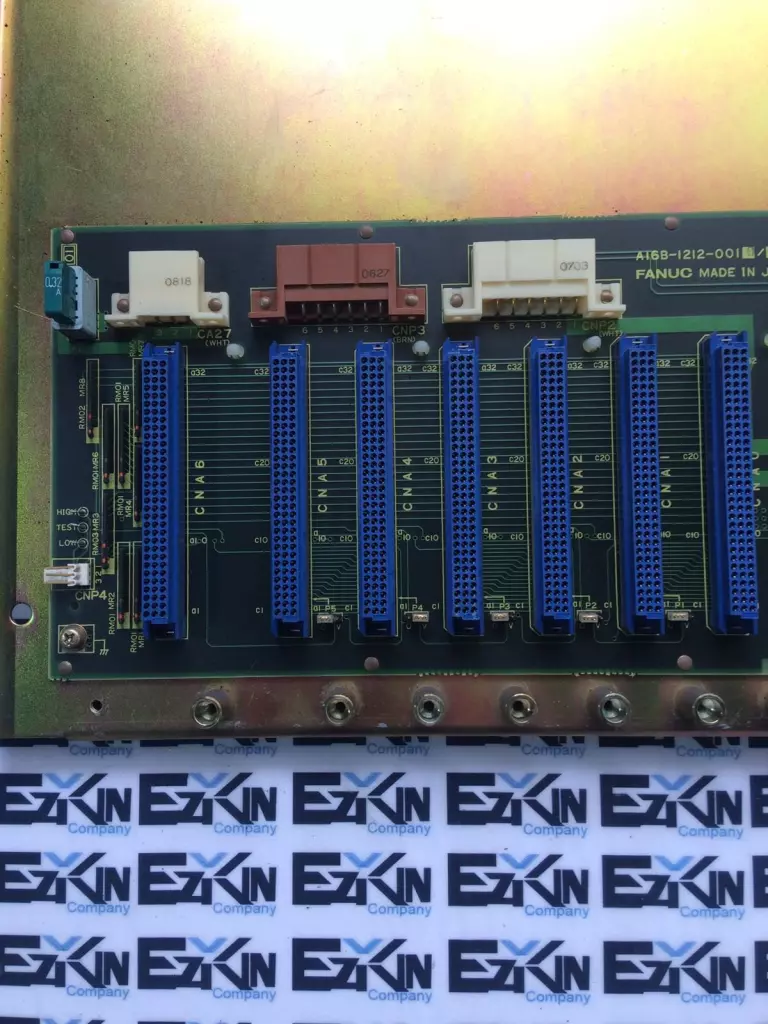

Fanuc A16B-1212-0010 / 01A Backplane Control Base Board

The Fanuc A16B-1212-0010/01A is a backplane control base board designed to serve as the primary interconnection platform for CPU, memory, and I/O boards in Fanuc CNC systems. It distributes power and data signals between modules via the system rack. Technical Specifications: Part Number: A16B-1212-0010/01A Manufacturer: Fanuc Board Type: Backplane Control Base Board Function: Electrical and signal interconnection platform for CNC modules Revision: /01A (hardware or firmware version) Voltage Supply: Distributed through system power supply via bus connectors Compatible Systems: Fanuc Series 0/6/11 and related legacy CNC controls Mounting: Fixed rack or chassis mount Connectivity: Multi-slot backplane with gold-plated edge connectors Slots: Supports CPU, RAM, I/O, and peripheral interface boards Signal Routing: Parallel and serial data buses integrated in backplane Cooling: Passive (relies on system airflow) Board Format: Rigid multilayer PCB Weight: Approx. 0.8 kg Application: CNC system integration and module interface foundation Please review pictures carefully and let us know if you have any questions!
