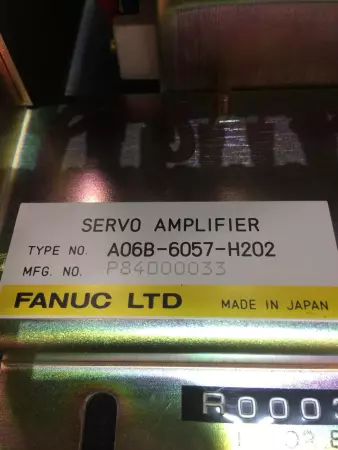

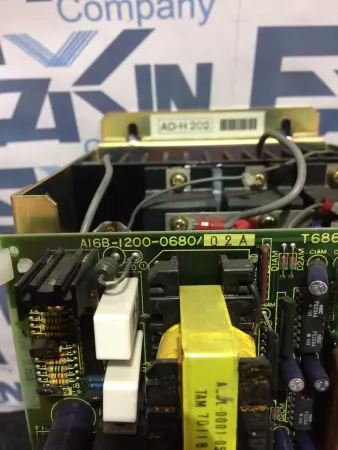

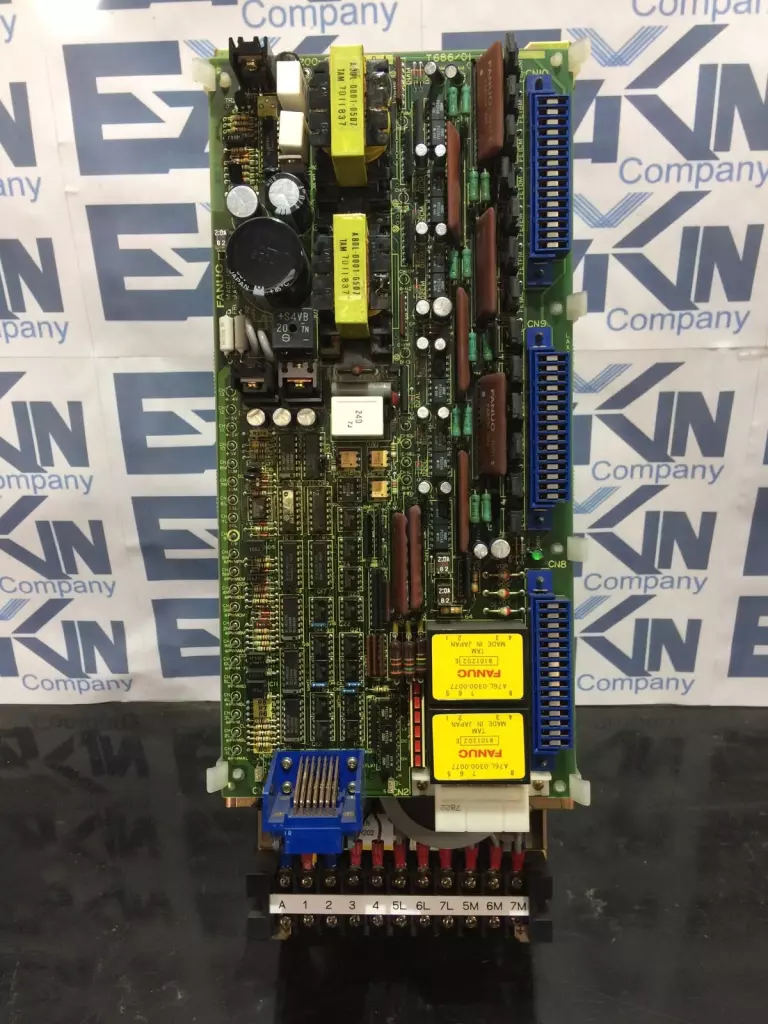

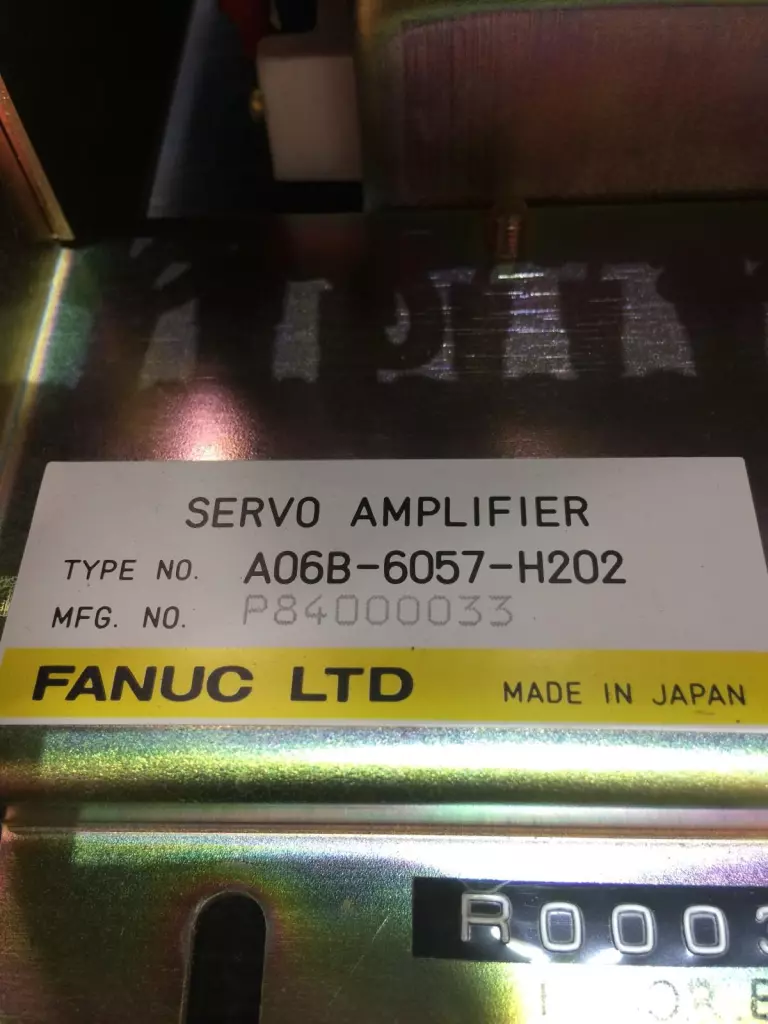

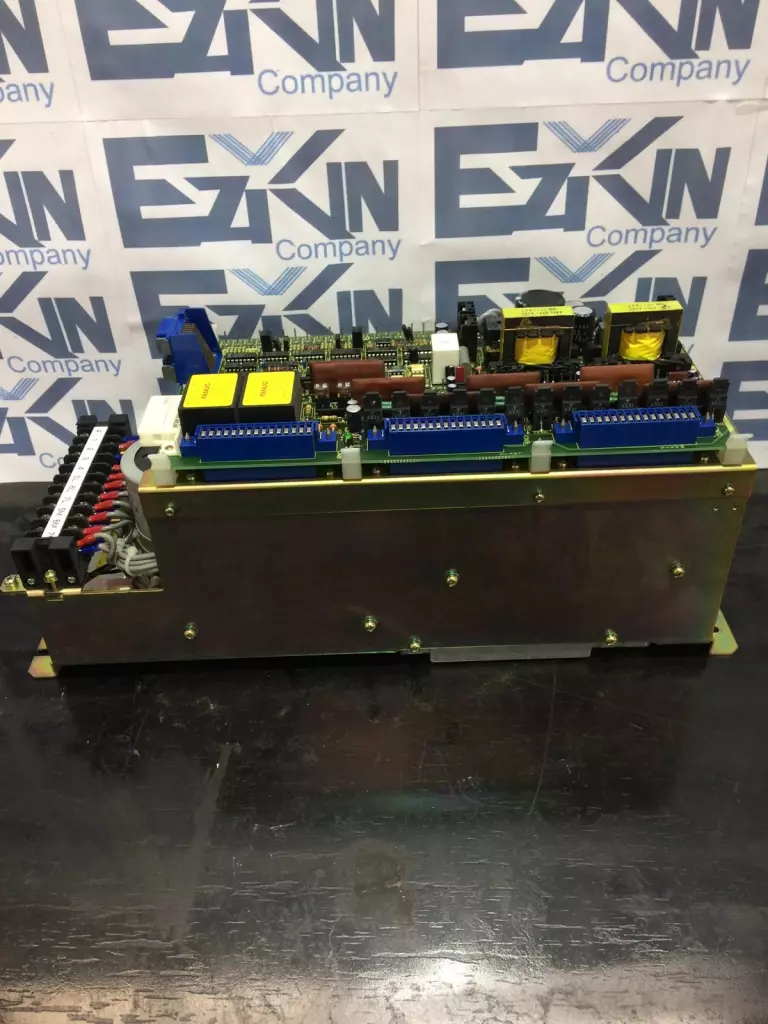

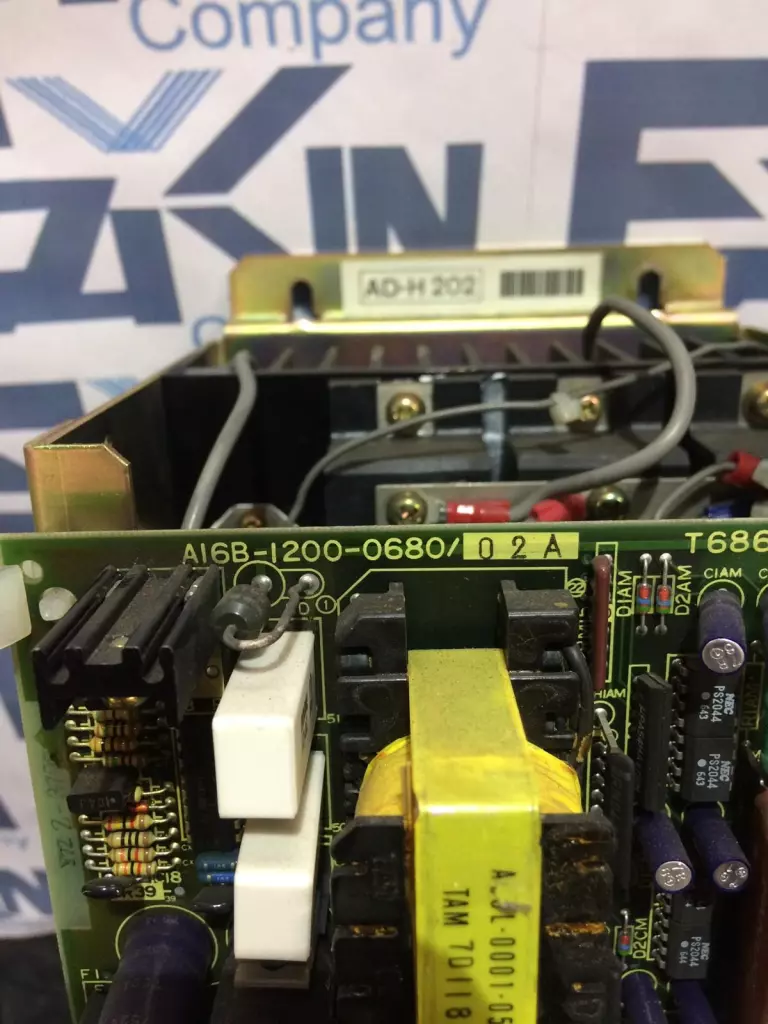

Fanuc A06B-6057-H202 Servo Amplifier Module

The Fanuc A06B-6057-H202 is a dual-axis digital AC servo amplifier used in CNC machine tools to control two servo motors simultaneously. It supports high-precision positioning in multi-axis CNC systems and is compatible with various Fanuc control platforms. Technical Specifications: Model: A06B-6057-H202 Manufacturer: Fanuc Type: AC Servo Amplifier Module Drive Type: Digital Axis Configuration: Dual Axis (2-axis) Motor Compatibility: 2-0/5 configuration, supports 2-0/1-0 + 0/5 AC servo motors Input Voltage: 200–230V AC, 3-phase Input Frequency: 50/60 Hz Control Interface: Fanuc CNC control systems (digital interface) Cooling: External forced air cooling required Mounting: Vertical panel mount in control cabinet Protection Features: Overvoltage, overcurrent, overheat, and short-circuit protection Status Indicators: On-board LED indicators for power and fault diagnostics Application: CNC lathes, machining centers, and automation lines Weight: Approx. 6.5 kg

Condition: Used

Weight:   21.20

Depth:   10.00

Length:   24.00

Width:   16.00

SKU:   1490 4.S7.7.1
