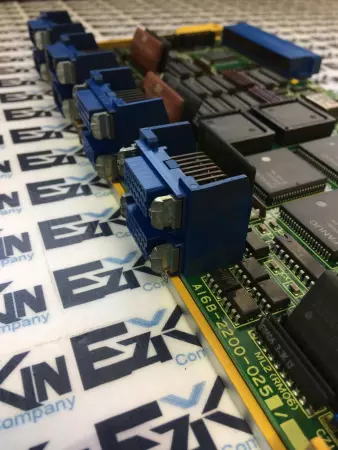

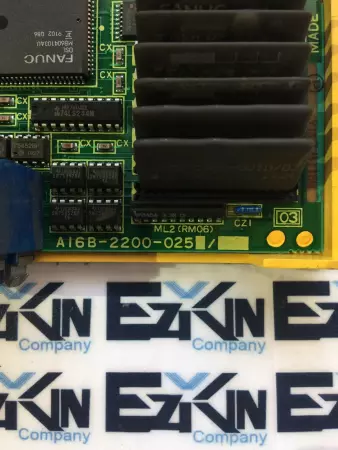

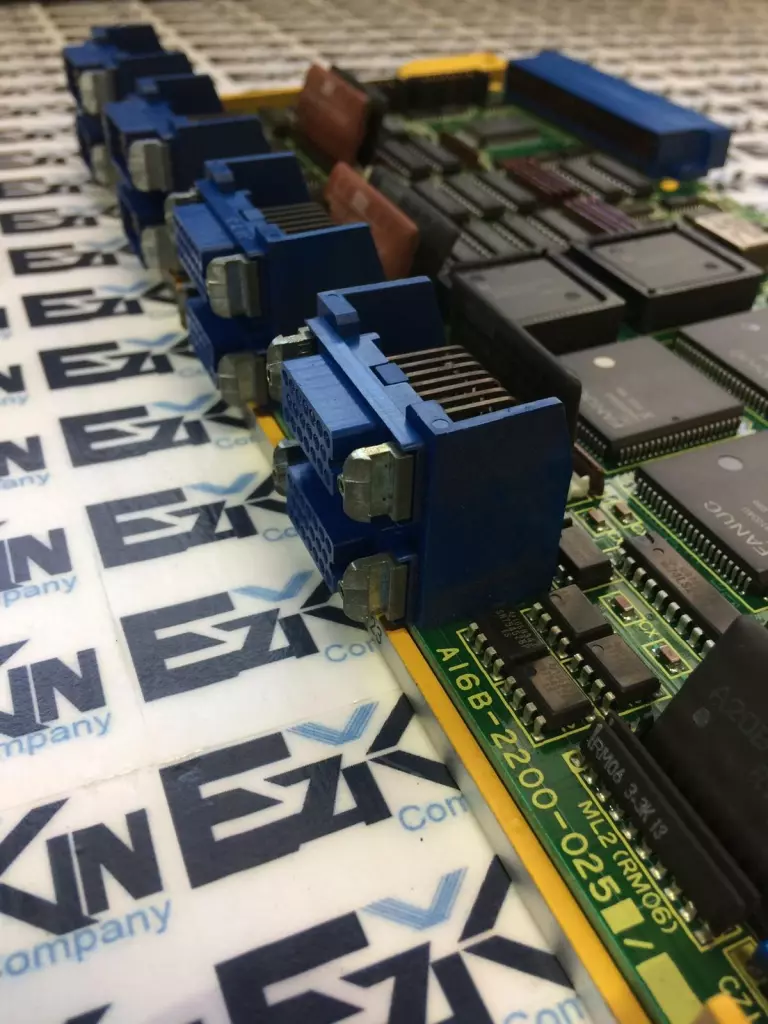

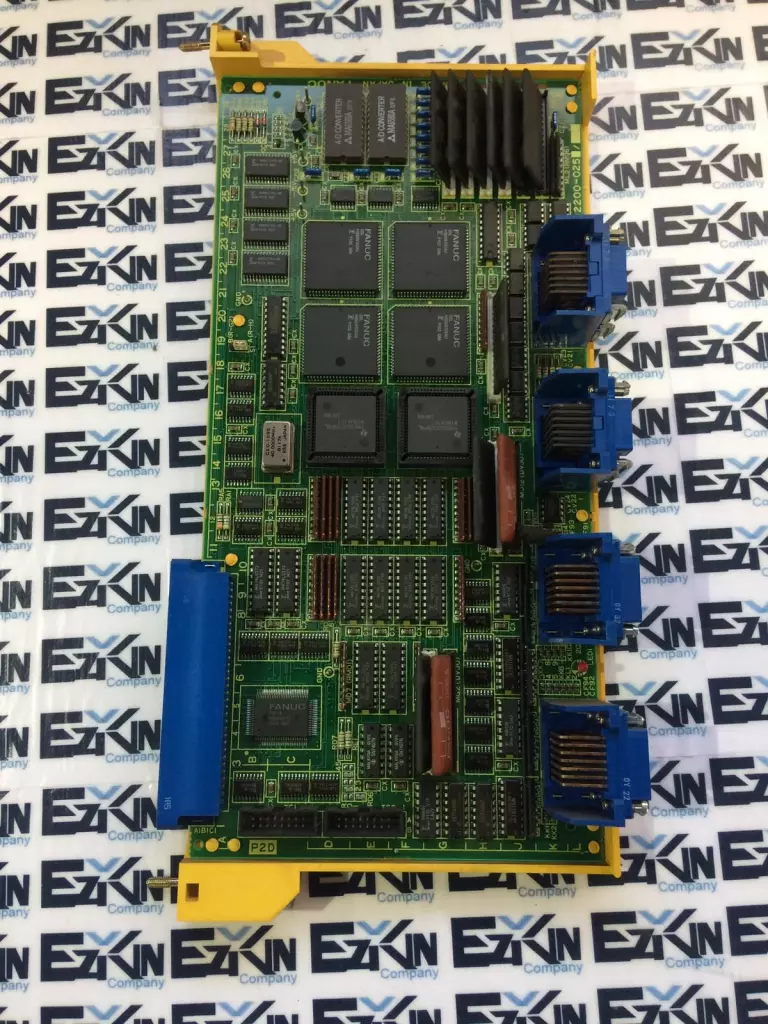

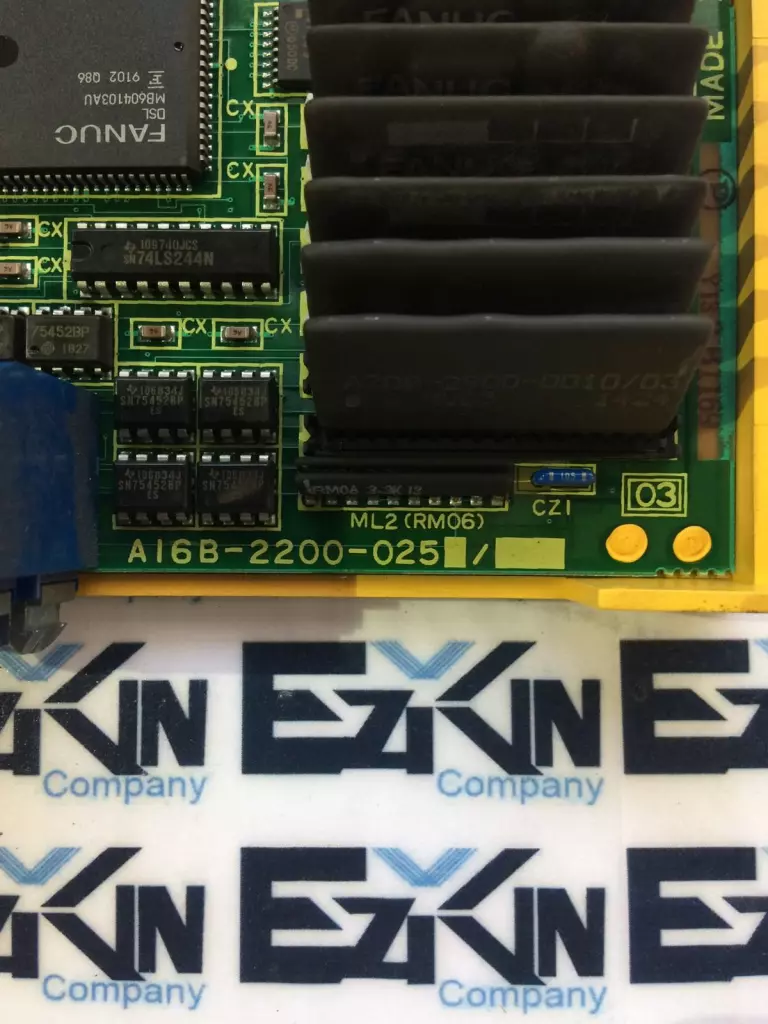

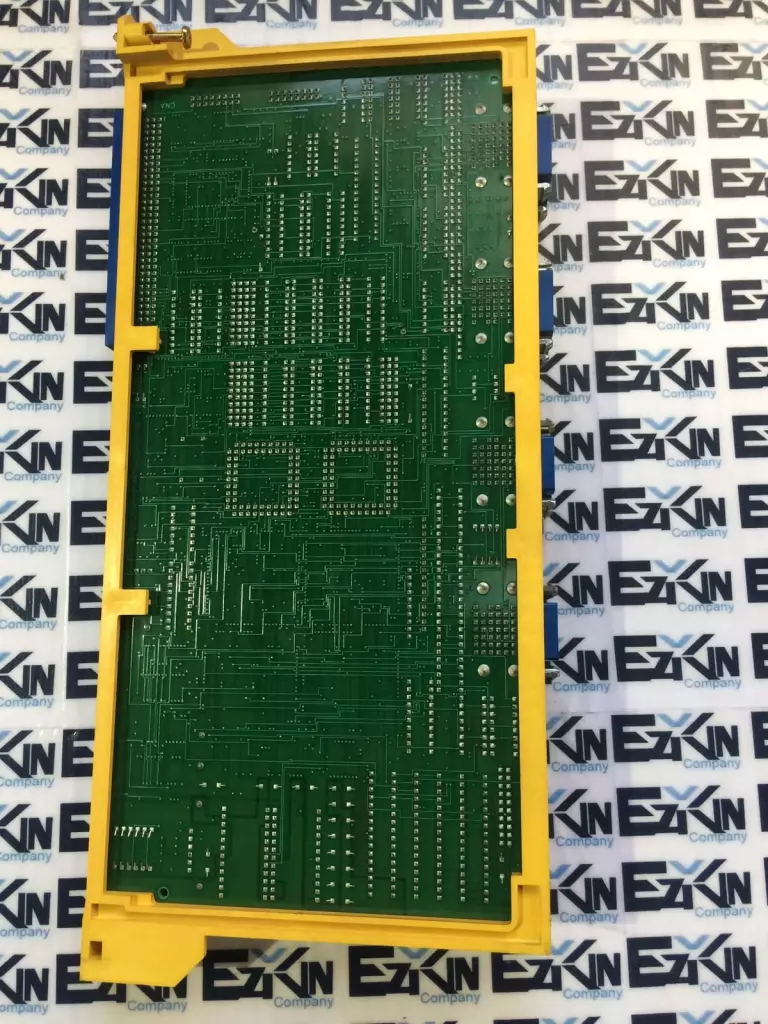

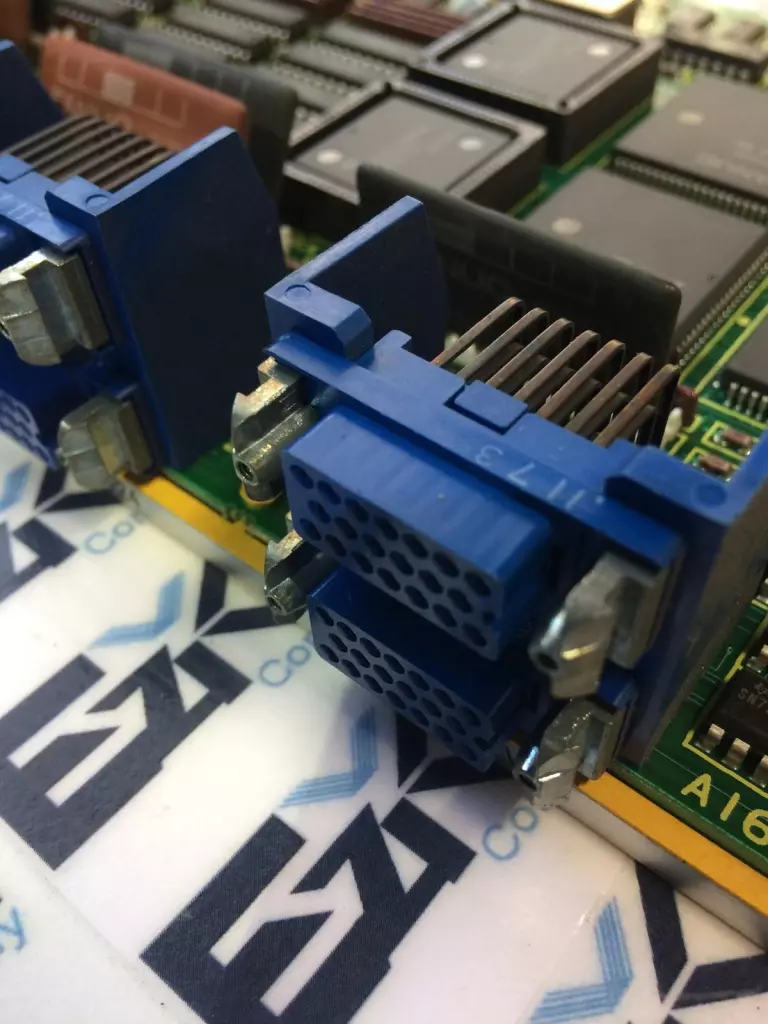

Fanuc A16B-2200-025 4-Axis Control Circuit Board

The Fanuc A16B-2200-025 is a 4-axis control circuit board used in CNC systems to manage and coordinate the motion of up to four servo axes. It integrates signal processing and control logic required for high-precision motion in multi-axis applications. Technical Specifications: Part Number: A16B-2200-025 Manufacturer: Fanuc Board Type: 4-Axis Control Circuit Board Function: Controls and synchronizes 4 servo motor axes System Interface: Digital communication with Fanuc CNC system Axis Channels: 4 independent servo axis control channels Input Voltage: Supplied via system backplane from power unit Compatible Systems: Fanuc Series 0, 15, and 16 CNC systems (varies by config) Mounting: Plug-in backplane/rack mount Cooling: Passive, requires system ventilation Board Layout: Multilayer PCB with integrated signal processing ICs Position Feedback: Supports encoder inputs per axis Protection: Input/output isolation, onboard diagnostics Weight: Approx. 0.6 kg Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.40

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   1495 4.S8.7.1C
