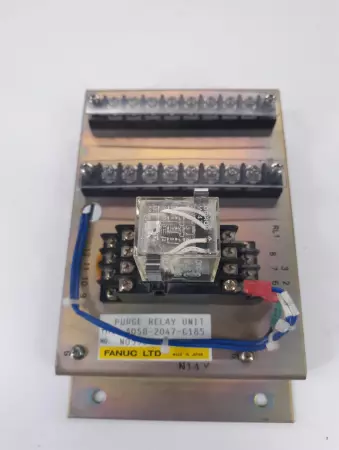

Fanuc A05B-2047-C185 Purge Relay Unit

The Fanuc A05B-2047-C185 is a purge relay unit designed for use in robotic and CNC applications. It controls air or gas purging operations in enclosed environments, typically for safety or environmental conditioning before system startup. Technical Specifications: Model: A05B-2047-C185 Manufacturer: Fanuc Type: Purge Relay Unit Function: Controls purging cycles of enclosures or robotic cells Power Supply: 24V DC nominal Control Voltage: Logic level input from robot/CNC controller Relay Output: Dry contact relay outputs Contact Rating: 250V AC / 30V DC, 5A max Status Indicators: LED indicators for power and relay state Mounting: Panel mount or DIN rail (depending on enclosure) Enclosure: Industrial metal housing with terminal access Applications: Robot enclosures, CNC cabinets, explosion-proof areas Safety Function: Used to ensure purging of flammable or contaminated air before enabling system operation Weight: Approx. 1.5 kg Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   2.00

Depth:   6.00

Length:   12.00

Width:   9.00

SKU:   1496 4.S8.3.2
