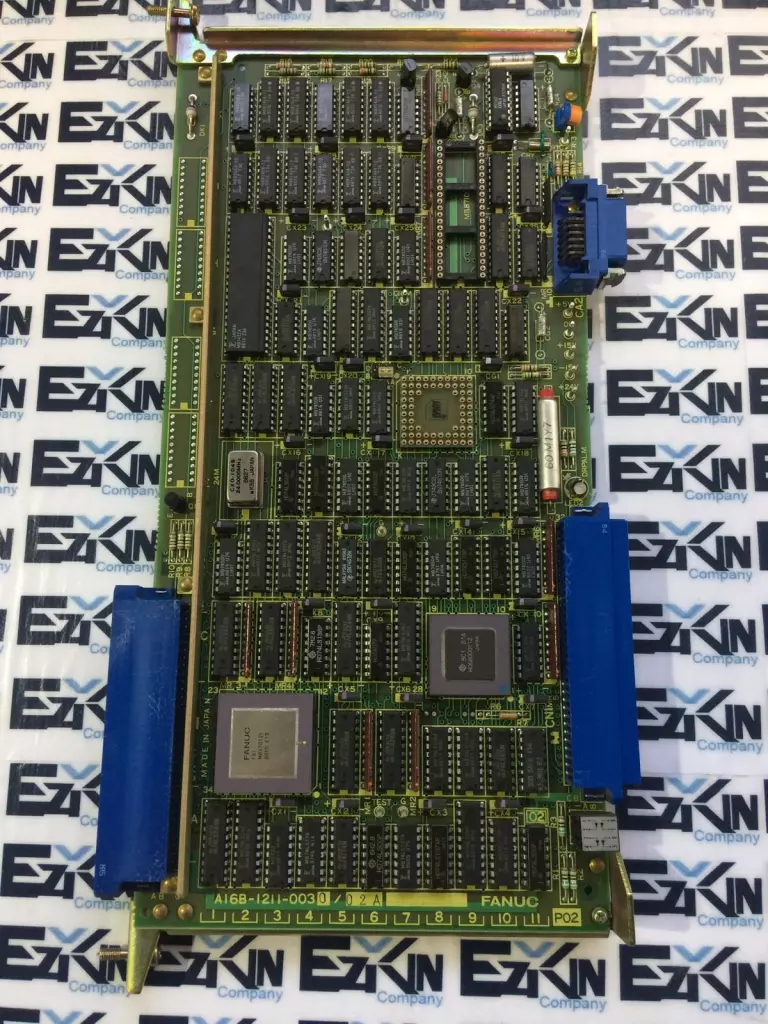

GE Fanuc A16B-1211-0030/02A Circuit Board

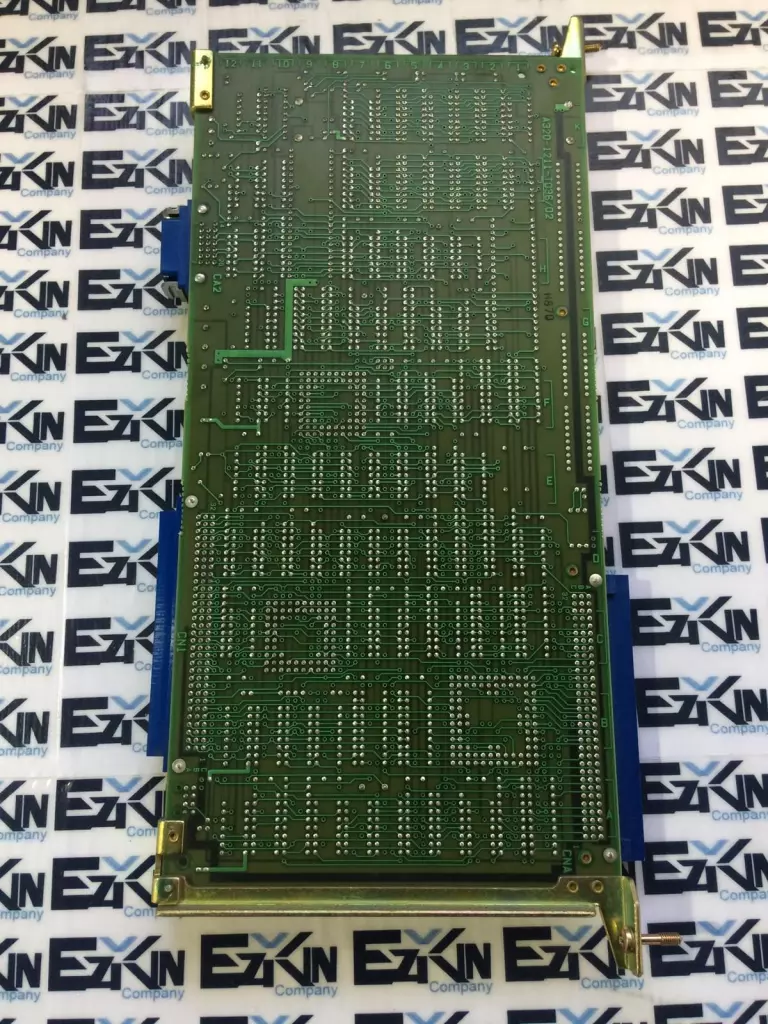

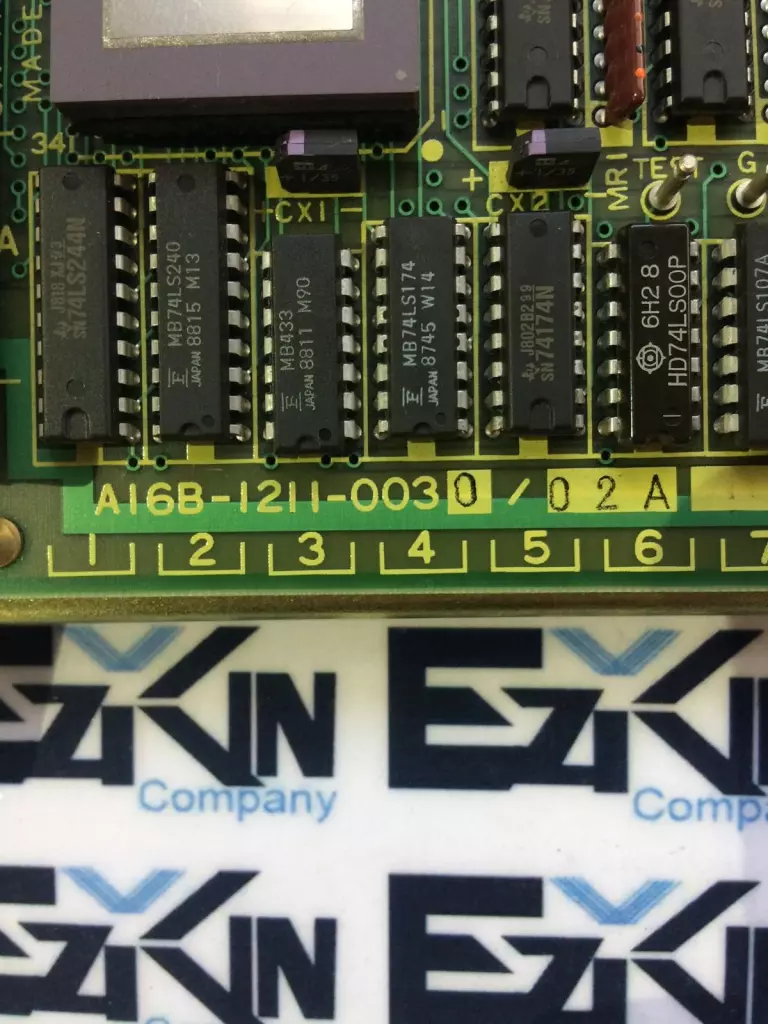

The GE Fanuc A16B-1211-0030/02A is a main CPU or system controller circuit board used in legacy Fanuc CNC systems. It executes control logic and coordinates data flow between memory, I/O, and peripheral subsystems, making it critical to CNC operations. Technical Specifications: Part Number: A16B-1211-0030/02A Manufacturer: GE Fanuc Board Type: CPU/System Control Circuit Board Revision: /02A (hardware/firmware version) Power Supply: Receives power via backplane interface Processor: Embedded Fanuc logic processor (series-dependent) Memory Support: Onboard sockets for EPROM/EEPROM and RAM modules Communication: Supports system bus, I/O interfaces, and peripheral links Mounting: Rack-mount or backplane slot Cooling: Passive (airflow dependent on control enclosure) Compatible Systems: Fanuc Series 0, 6, 10 (varies with system configuration) Board Layout: Multi-layer PCB with diagnostic LED indicators Typical Applications: CNC mills, lathes, machining centers Weight: Approx. 0.6 kg Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.20

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   1501 4.S8.7.1C
