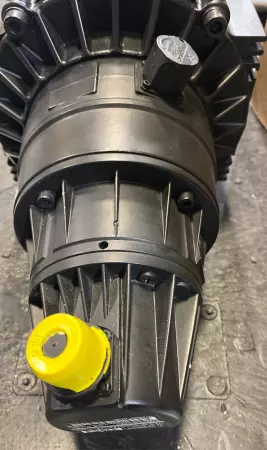

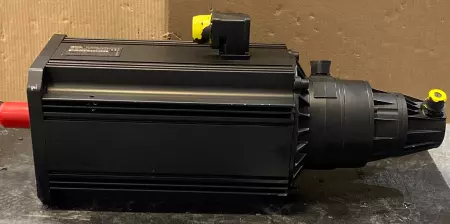

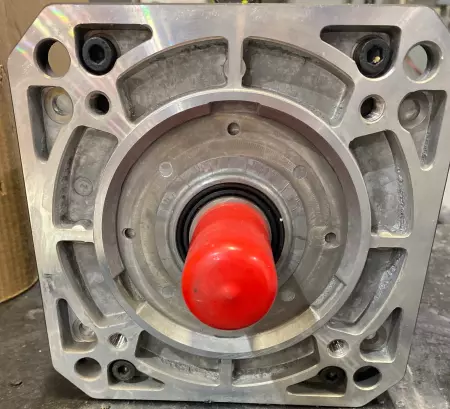

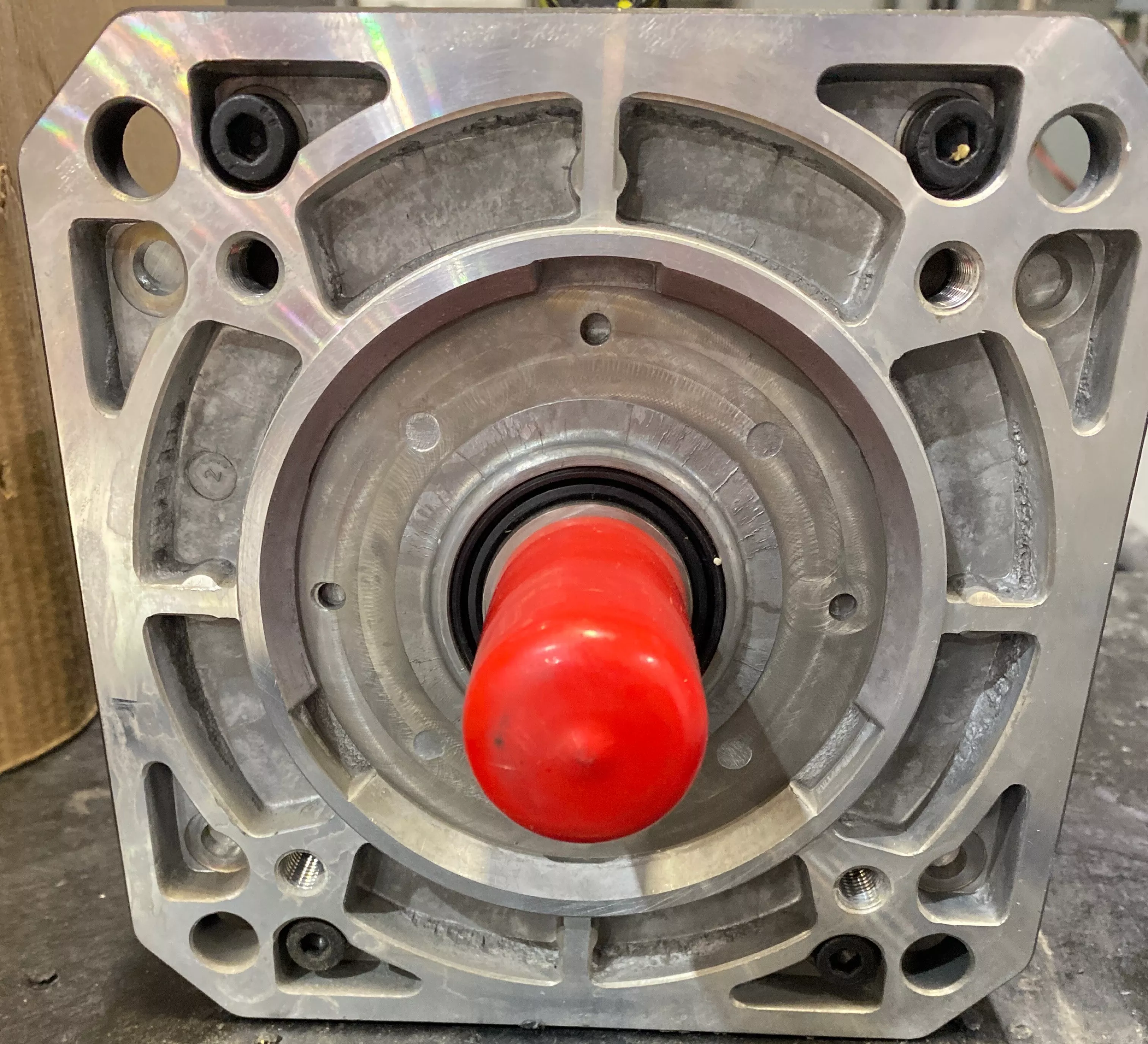

Rexroth Indramat MAC112B-0-LD-4-C AC Servo Motor PN 255506

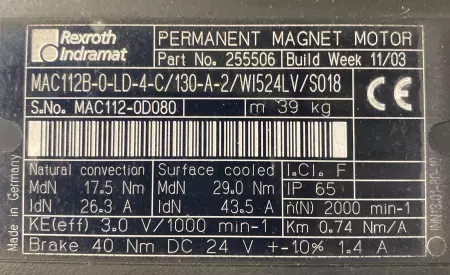

Rexroth Indramat MAC112B-0-LD-4-C is a high-performance AC permanent magnet servo motor designed for precision automation systems. This model is equipped for both natural and surface cooling, providing flexible torque and current ratings depending on the cooling method. Part Number: 255506 Model: MAC112B-0-LD-4-C/130-A-2/WI524LV/S018 Serial Number: MAC112-0D080 Motor Type: Permanent Magnet AC Servo Motor Weight: 39 kg Build Week: 11/03 Insulation Class: F Protection Class: IP65 Cooling Methods: Natural Convection / Surface Cooled Rated Torque (MdN): 17.5 Nm (natural convection), 29.0 Nm (surface cooled) Rated Current (IdN): 26.3 A (natural convection), 43.5 A (surface cooled) Rated Speed (nN): 2000 rpm Voltage Constant (KE eff): 3.0 V/1000 rpm Torque Constant (Km): 0.74 Nm/A Holding Brake: 40 Nm Brake Voltage: 24 V DC ±10% Brake Current: 1.4 A Made in: Germany

Condition: New

Weight:   100.00

Depth:   12.00

Length:   14.00

Width:   32.00

SKU:   151901 4.R6.1.5
