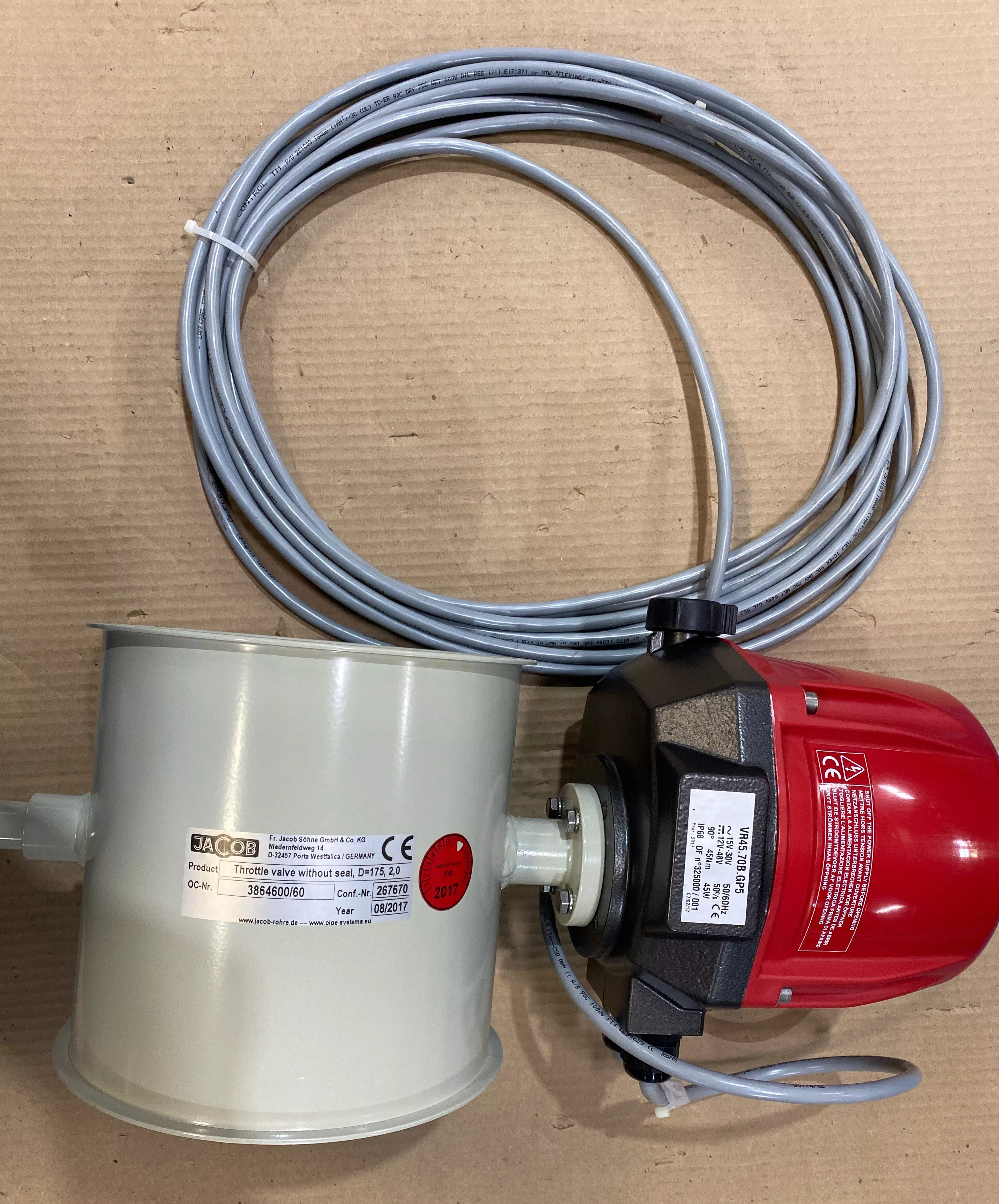

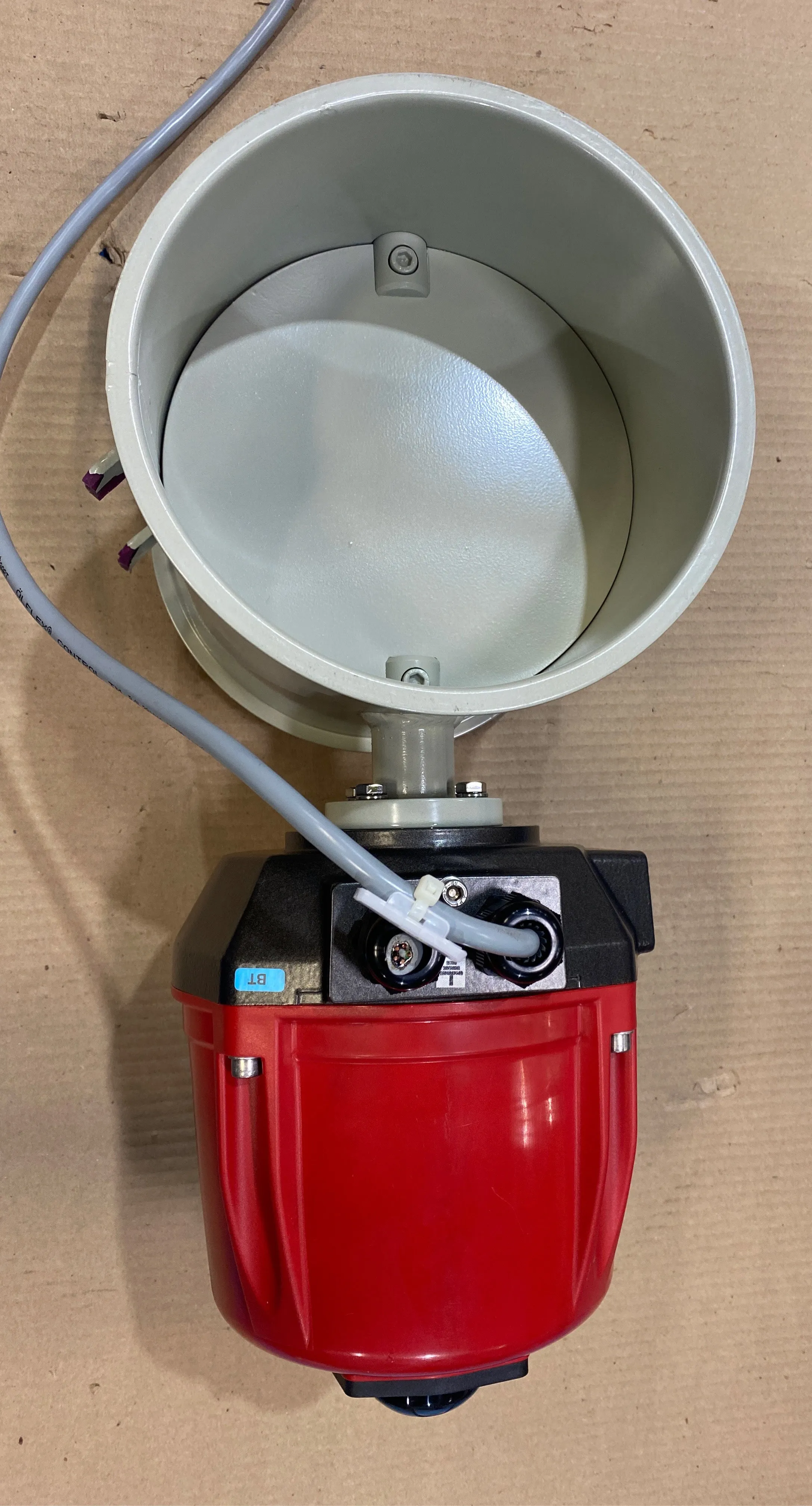

Jacob 3864600/60 Throttle Valve 175mm W/VR45.70B.GP5 Actuator

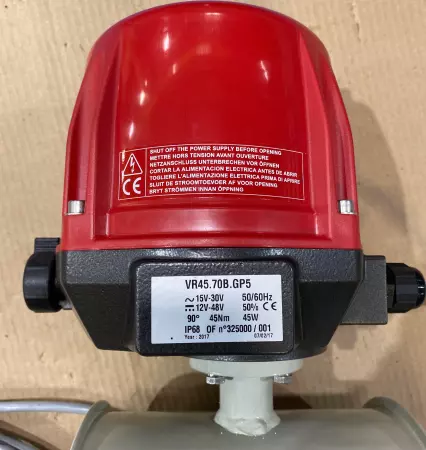

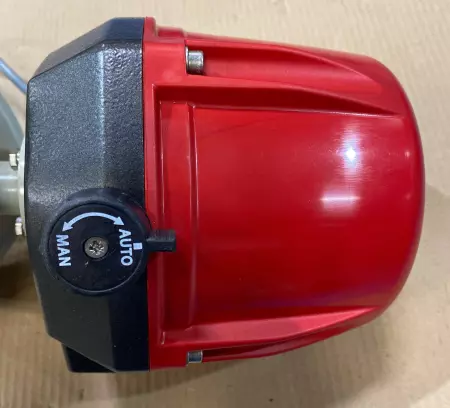

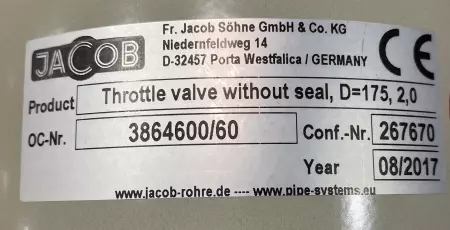

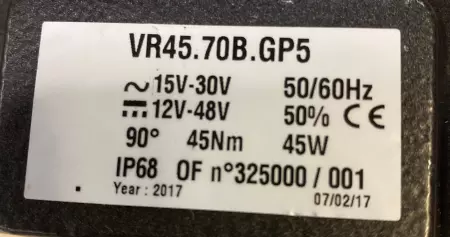

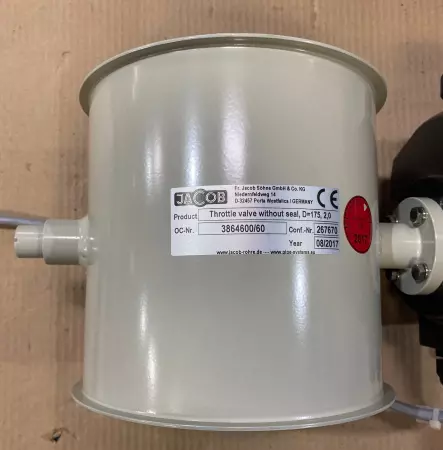

The Jacob 3864600/60 Throttle Valve with VR45.70B.GP5 Actuator is a 175mm diameter industrial flow control assembly designed for precise airflow regulation in pneumatic conveying and dust extraction systems. This unit combines a robust throttle valve with an electric actuator, ensuring reliable performance in demanding applications. Throttle Valve Specifications: Model: 3864600/60 Diameter: 175 mm Material: Powder-coated steel Seal Type: Without seal when closed Mounting: Flanged ends compatible with Jacob’s modular pipework systems Application: Airflow regulation in industrial ducting systems Actuator Specifications: Model: VR45.70B.GP5 Type: Electric rotary actuator Voltage: 15–30 V AC, 50/60 Hz Power Consumption: Approximately 4 W Rotation Angle: 90° Switch-over Time: Approximately 150 seconds for 90° rotation Protection Class: IP42 Features: Overload-proof design; remains under tension in end positions This assembly is suitable for applications requiring precise control of airflow, such as in pneumatic conveying systems, dust extraction setups, and other industrial processes. The combination of the throttle valve and electric actuator allows for automated and accurate flow regulation. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   20.00

Depth:   16.00

Length:   19.00

Width:   28.00

SKU:   151908 4.R6.1.5
