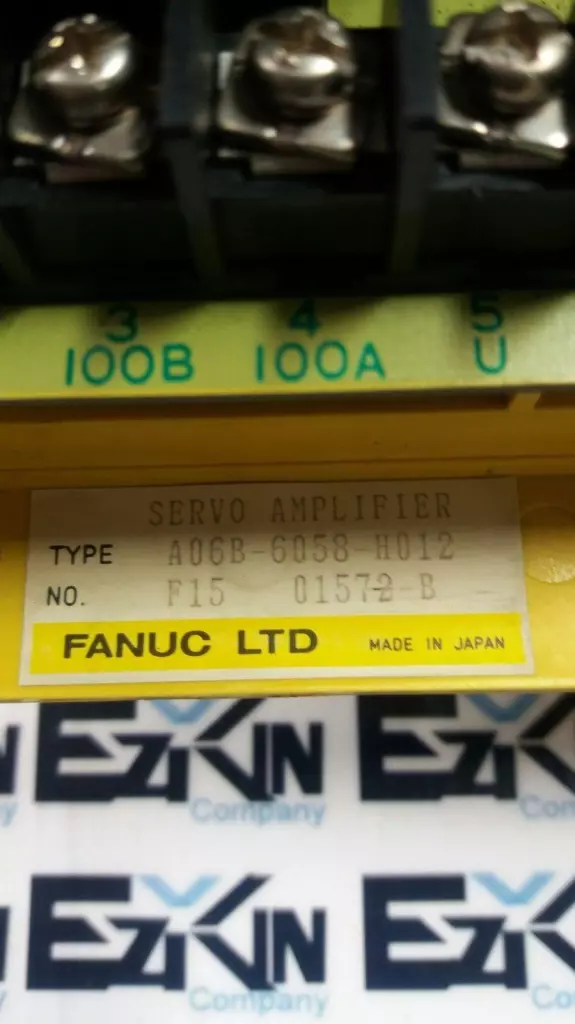

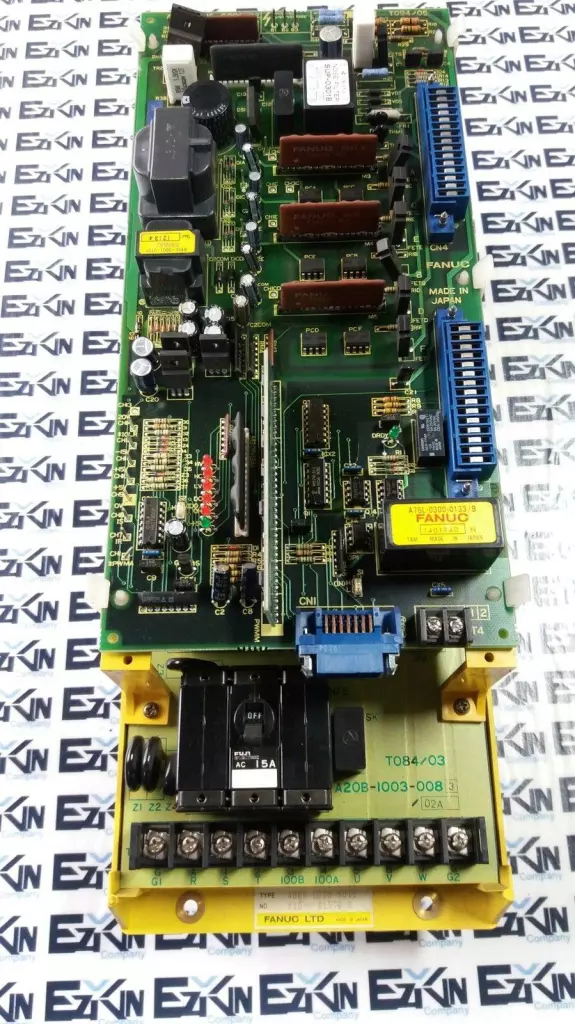

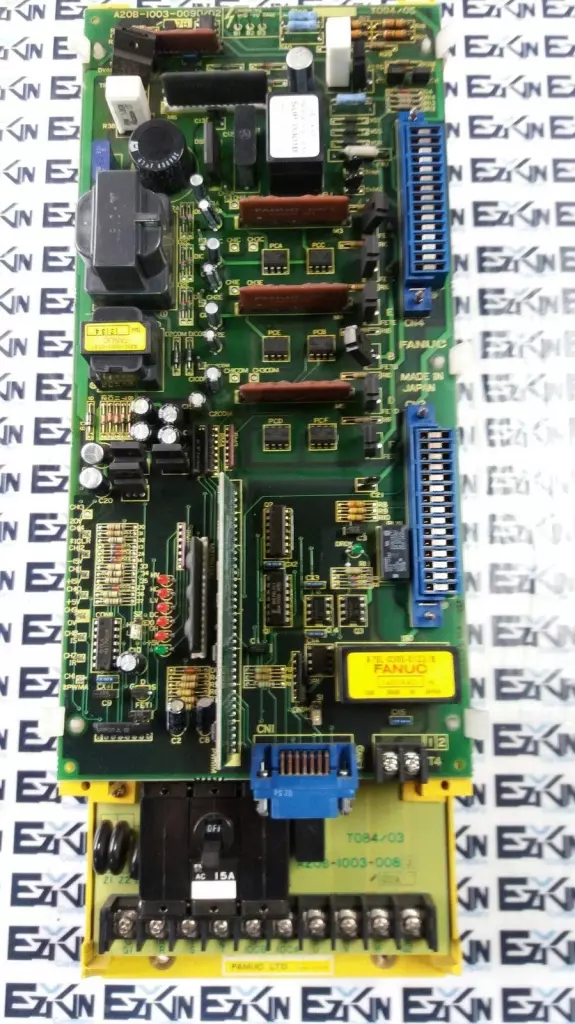

Fanuc A06B-6058-H012 Servo Amplifier Module Board

The Fanuc A06B-6058-H012 is a servo amplifier module board used in CNC machinery for precise control of AC servo motors. It is part of Fanuc's popular S Series and is designed for integration into Fanuc CNC systems, delivering reliable motion control performance in manufacturing and automation applications. Model: A06B-6058-H012 Manufacturer: Fanuc Corporation Product Type: Servo Amplifier Module Series: S Series Axis Control: Dual-axis (2-axis servo amplifier) Rated Input Voltage: 200–230 VAC, 3-phase Input Frequency: 50/60 Hz Output Current: Typically supports 3–5.5 A servo motors (verify based on motor pairing) Supported Motors: AC Servo Motors (e.g., Fanuc 0S, 5S, 10S types) Control Interface: PWM control from Fanuc CNC controller Cooling: Forced air (integrated fan cooling) Mounting: Rack or panel mount within CNC cabinet Protection Features: Overcurrent, overvoltage, undervoltage, overheat, and short circuit Display/Indicators: Diagnostic LEDs for fault codes and operational status Compatibility: Fanuc 0, 10, 11, 12, 15, and 16 Series CNC systems (model-specific pairing required) Typical Applications: CNC lathes, machining centers, EDM machines, robotics, and high-speed precision tools
