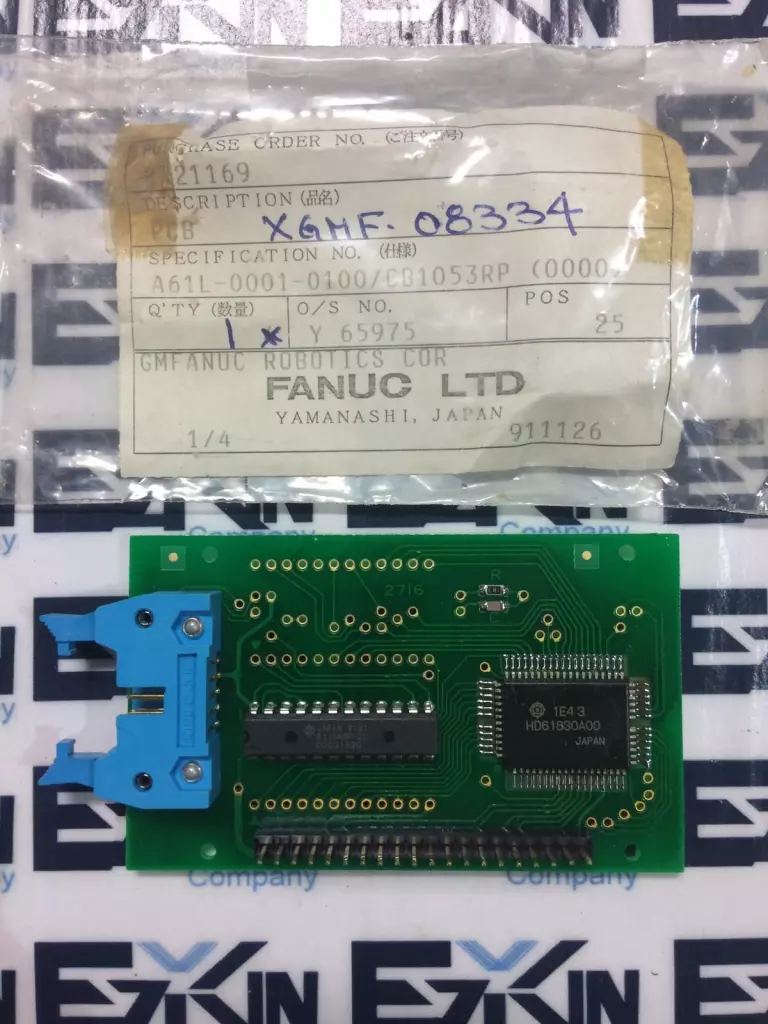

GE Fanuc A61L-0001-0100/CB1053R Control Circuit Board

The GE Fanuc A61L-0001-0100/CB1053R is a control circuit board typically used in display or CRT/MDI units for Fanuc CNC systems. It supports video processing and control signal transmission for operator interfaces. Technical Specifications: Model: A61L-0001-0100/CB1053R Manufacturer: GE Fanuc Board Type: CRT/MDI Control Circuit Board Function: Drives video output and interfaces with CNC control for display Application: Display module in Fanuc CNC systems (e.g., Series 0, 10, 11) Video Output: Analog CRT signal (composite or RGB, system dependent) Input Voltage: Supplied via display or backplane connector Signal Handling: Processes CNC display data and control logic Revision: CB1053R (denotes specific hardware version) Mounting: Internal mounting within CRT/MDI display enclosure Cooling: Passive via system airflow Connector Type: Multipin header and edge connectors Board Layout: Multilayer PCB with video processing ICs Weight: Approx. 0.4–0.6 kg Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.00

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   1542 4.S7.7.2
