In stock 1 available

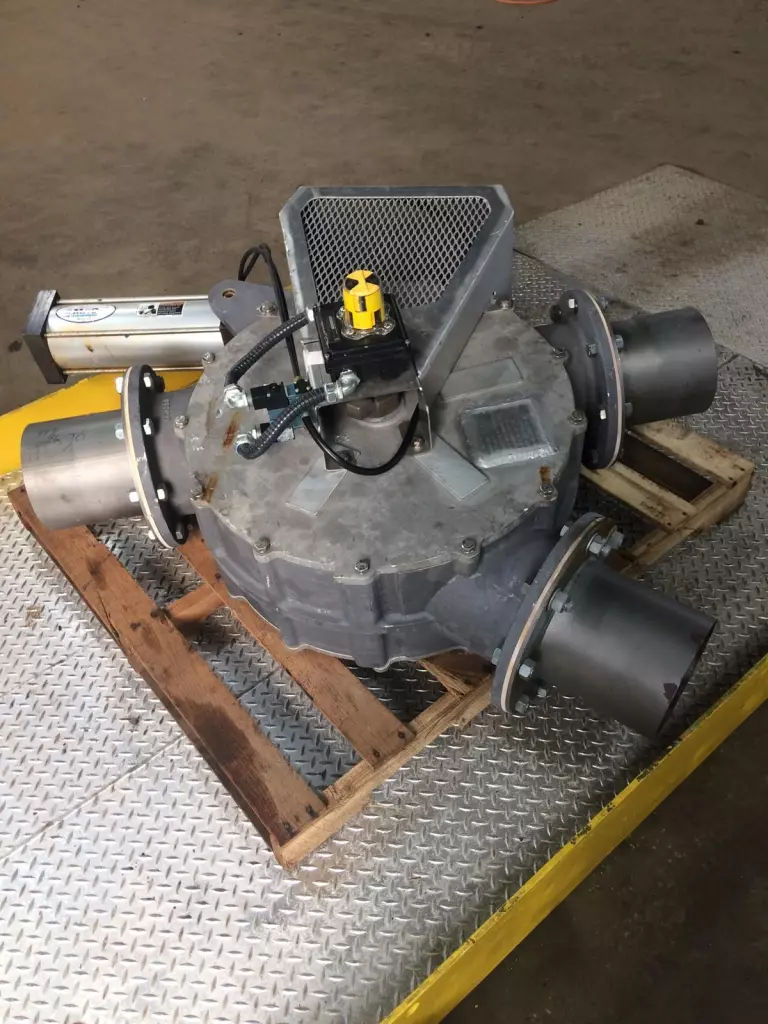

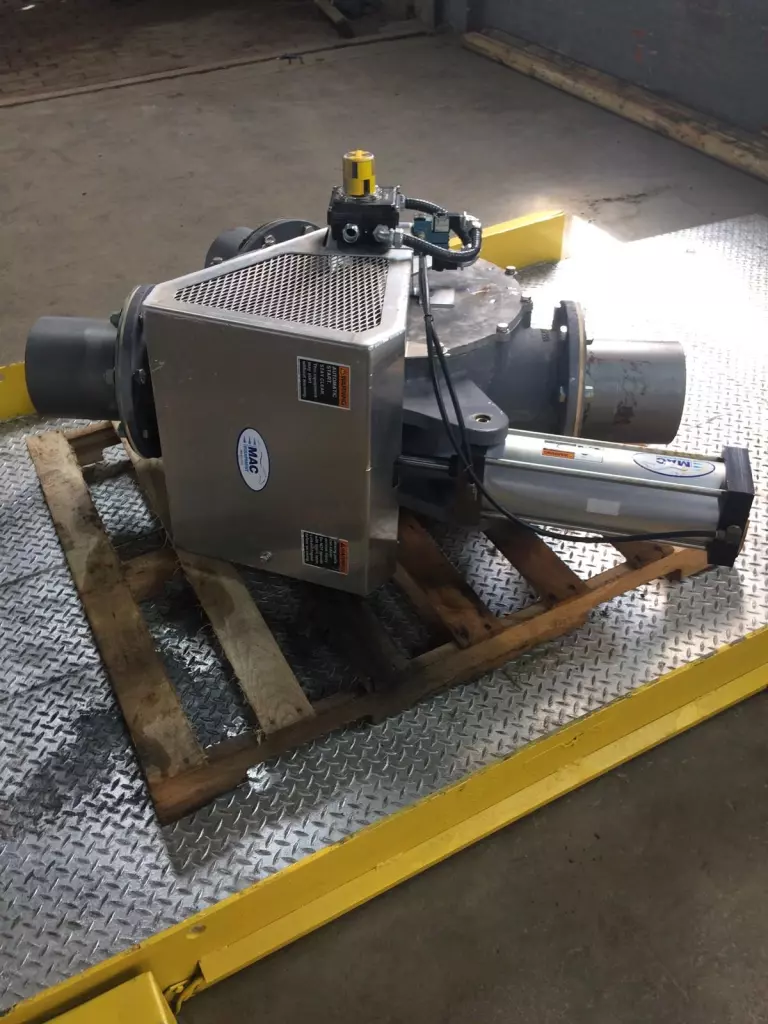

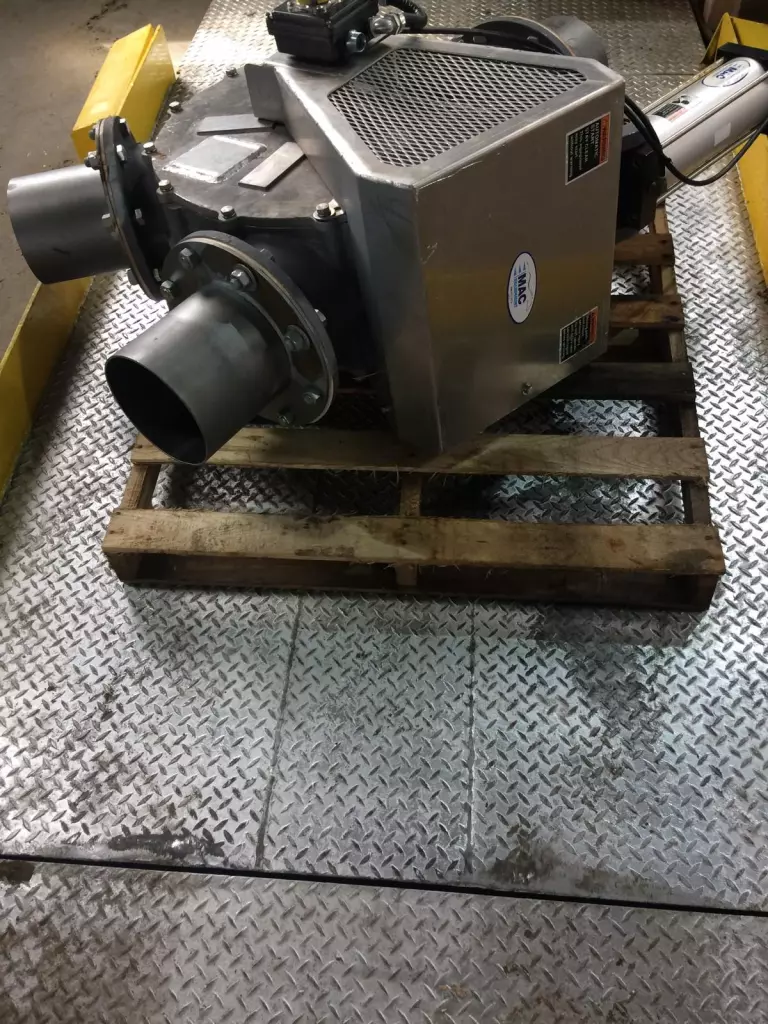

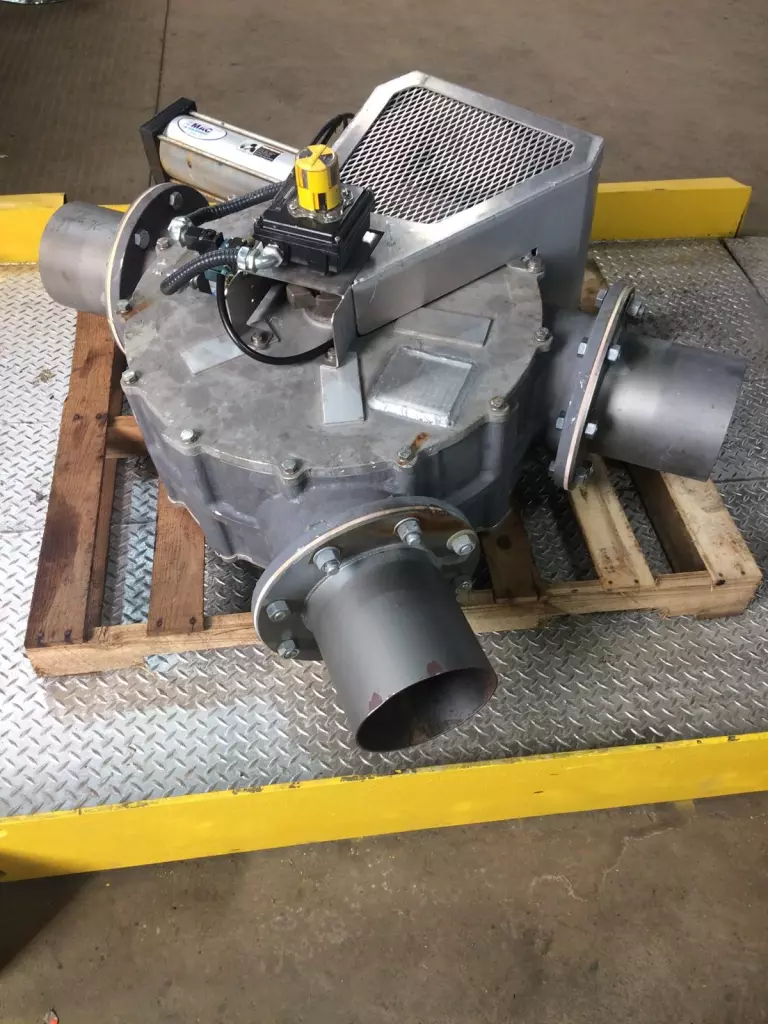

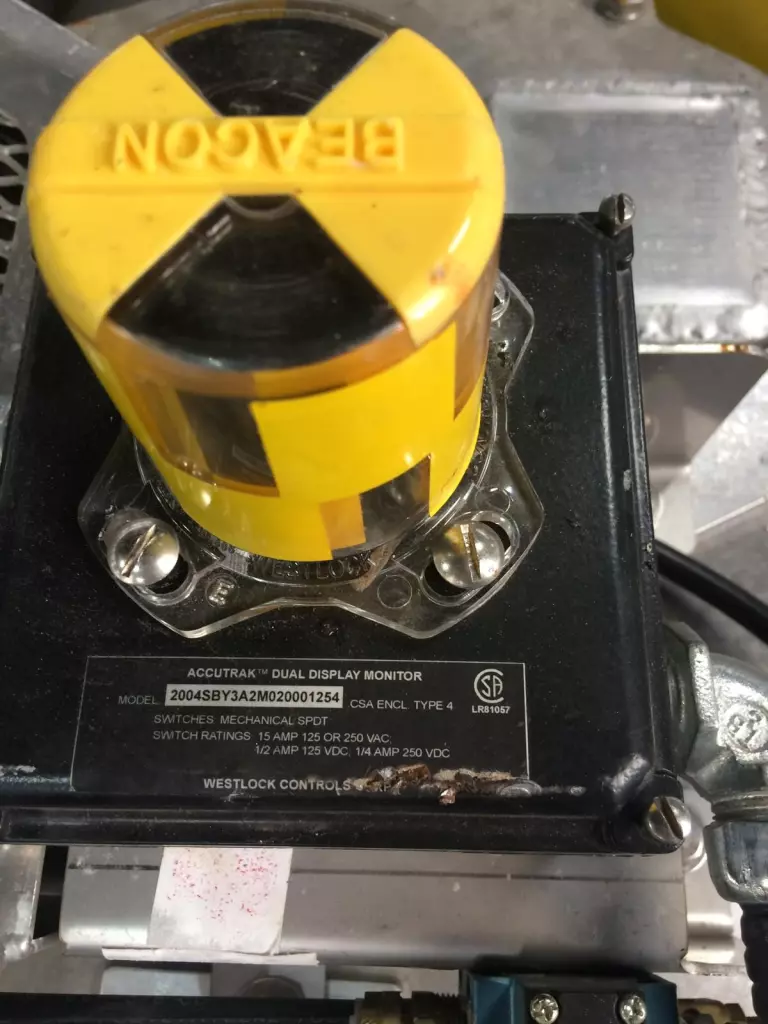

The MAC 80PT45 Tunnel Diverter Valve is a heavy-duty pneumatic flow control valve designed for bulk material handling systems. It provides a reliable, high-flow switch for pneumatic conveying lines, directing product flow between multiple outlets. Technical Specifications: Model: 80PT45 Manufacturer: MAC (Material Transfer Equipment Division) Valve Type: Tunnel Diverter Valve (Parallel Port) Operation: Pneumatically actuated Valve Size: 8" (nominal pipe diameter) Body Material: Cast aluminum or stainless steel (varies by model spec) Sealing: Industrial-grade elastomer seals for dust-tight operation Ports: 3-way diverter – 1 inlet, 2 outlets Actuator Type: Pneumatic cylinder with position indicator Control Air Supply: Typically 60–100 PSI (4–7 bar) Mounting: Flanged (ANSI or custom drilled pattern) Flow Direction: Diverging (one inlet to two outlets) or converging use Application: Bulk powder and pellet pneumatic transport, food, plastics, cement Finish: Corrosion-resistant industrial coating Weight: Approx. 120–150 lbs (depending on material and actuator options)
Condition: Used
Weight: 235.00
Depth: 35.00
Length: 57.00
Width: 61.00
SKU: 1562 4.R5.7.3
