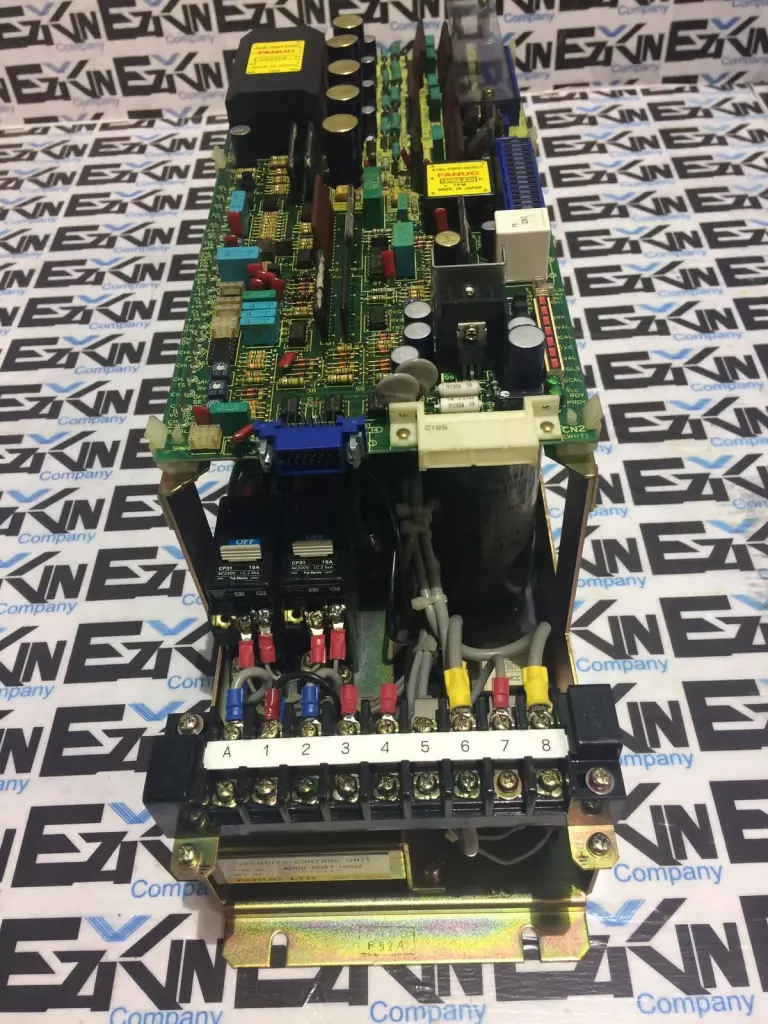

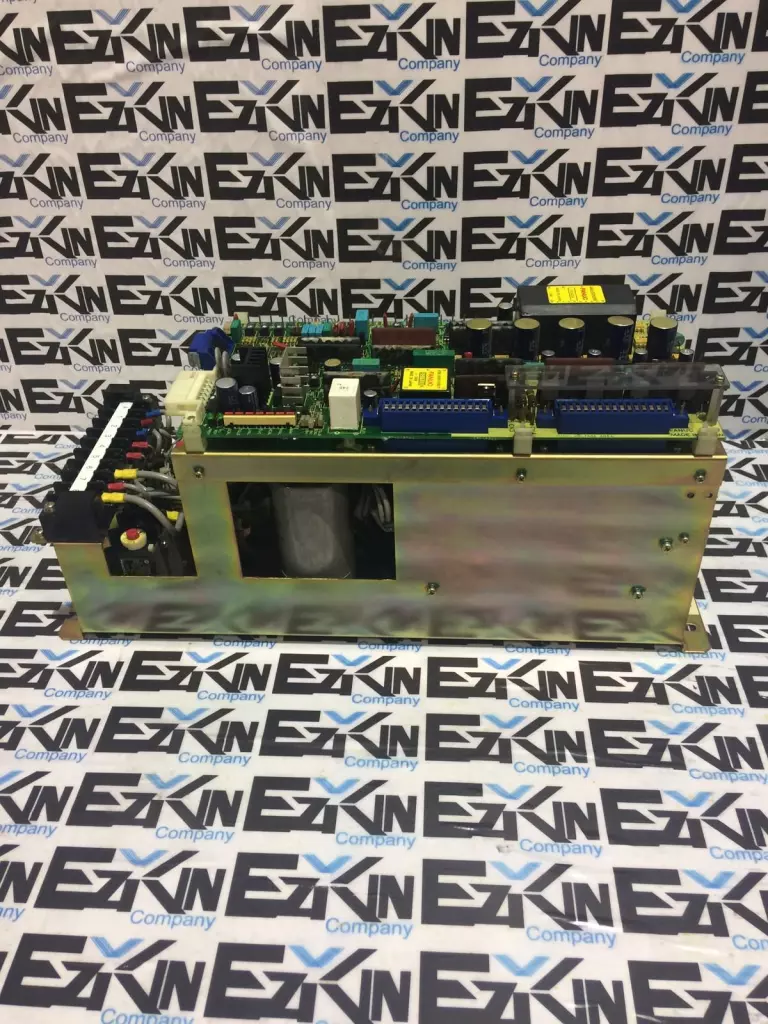

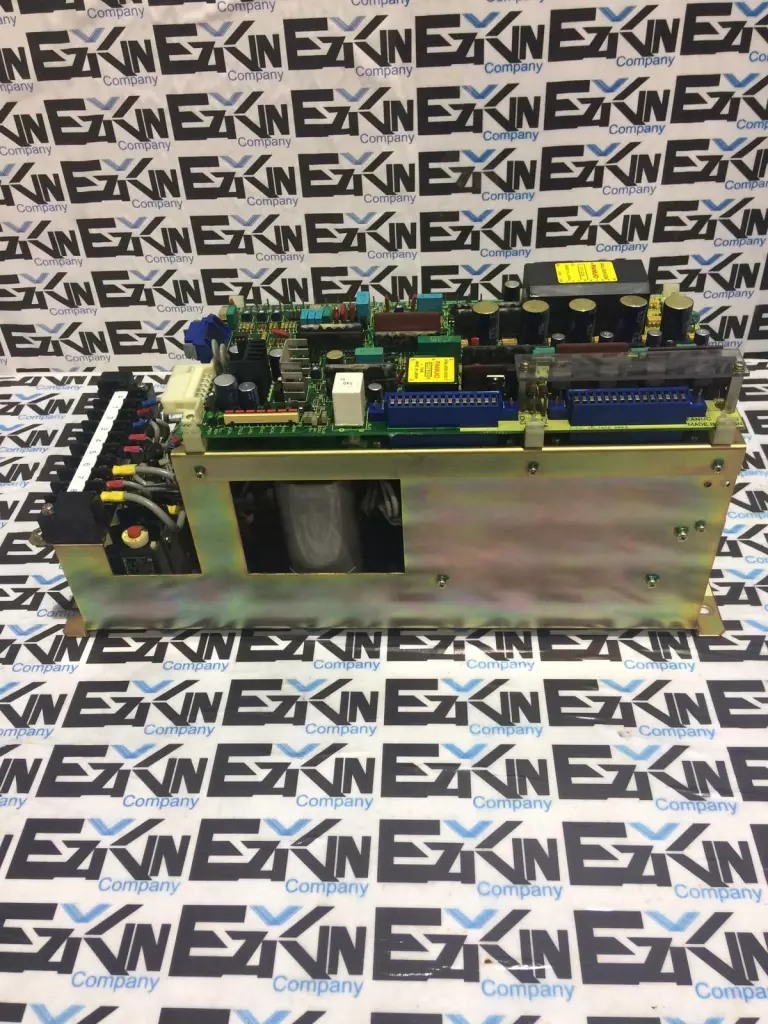

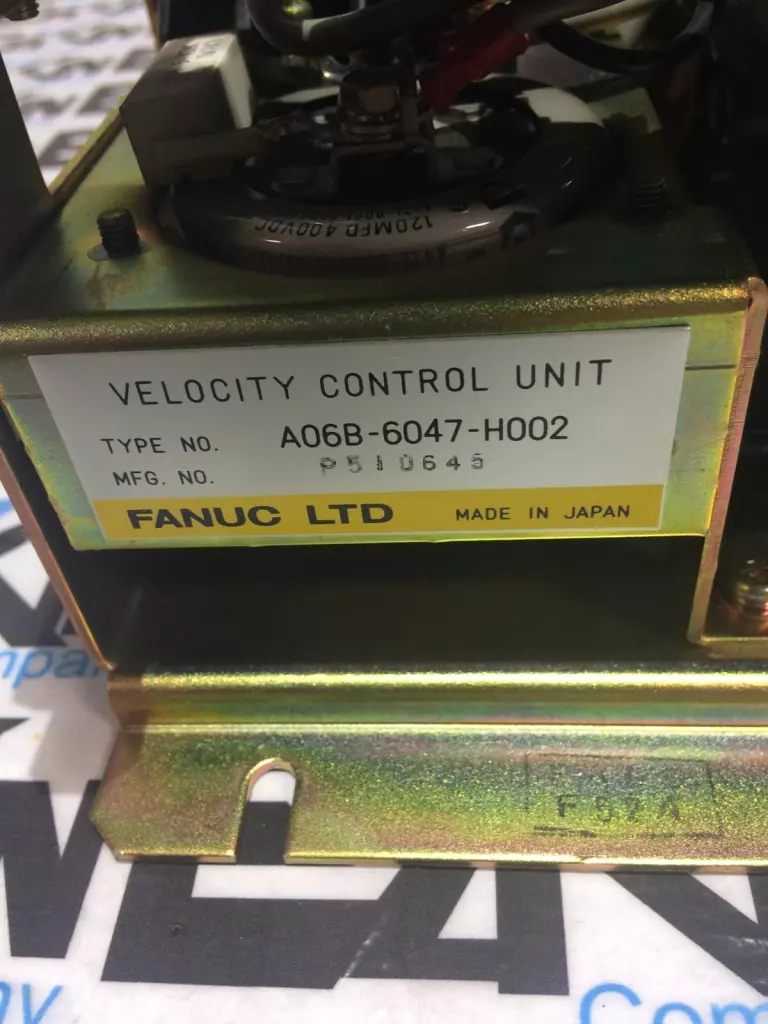

Fanuc A06B-6047-H002 Velocity Servo Controller Unit

Variable Frequency Drives

$3,327
$171.00
Save 95%

In stock 1 available

Quantity
Total Price: $171.00

Share this item:

Questions?

Fanuc A06B-6047-H002 is a Velocity Control Unit (VCU) designed for analog interface CNC systems, providing precise velocity control for DC servo motors. It is commonly used in older Fanuc 0M/0T control systems and supports high-speed, high-accuracy industrial machine tool operations. Technical Specifications Model: A06B-6047-H002 Type: Velocity Servo Controller Unit (VCU) Motor Compatibility: DC Servo Motors (e.g., Fanuc 5S, 10S) Control Interface: Analog voltage command (±10V) Rated Output Current: 6A continuous (nominal) Peak Output Current: Up to 15A (short-term) Input Power Supply: 3-phase 200–230VAC, 50/60 Hz Regeneration: Built-in regenerative braking circuitry Cooling: Fan-cooled, with internal fan Protection Features: Overcurrent, overvoltage, overload, undervoltage Status Indication: LED status indicators on front panel Mounting Type: Panel mount (rack or cabinet) Connector Type: Fanuc proprietary multipin and terminal block Weight: Approx. 5–7 kg Dimensions: ~330mm (H) x 150mm (W) x 250mm (D) System Compatibility: Fanuc 0M/0T and early Series 6/11 CNC systems Please review pictures carefully and let us know if you have any questions!

Brand:
FanucNumber Of Phases

Condition: Used

Weight:   15.80

Depth:   10.00

Length:   24.00

Width:   16.00

SKU:   1646 4.S7.3.6
