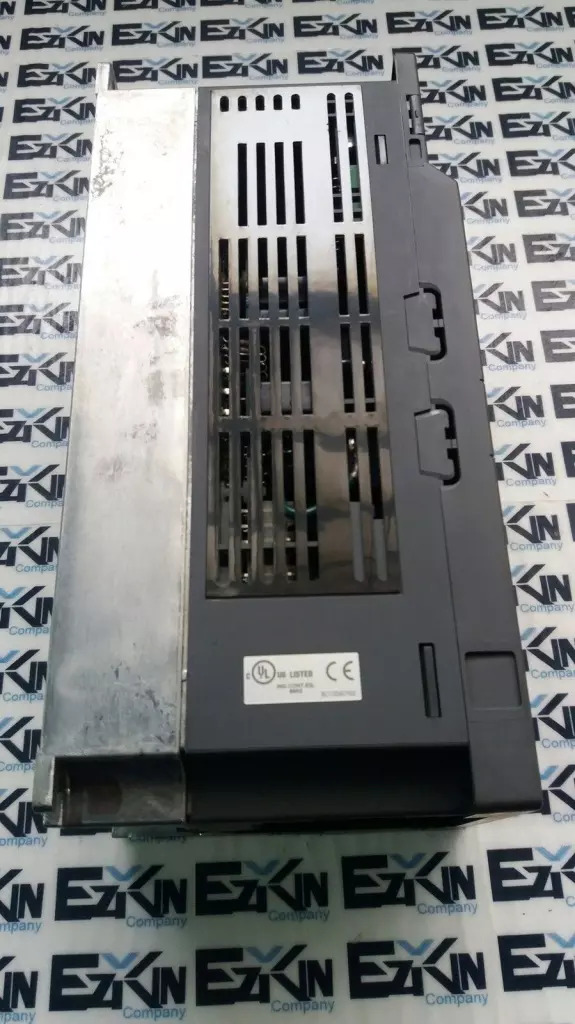

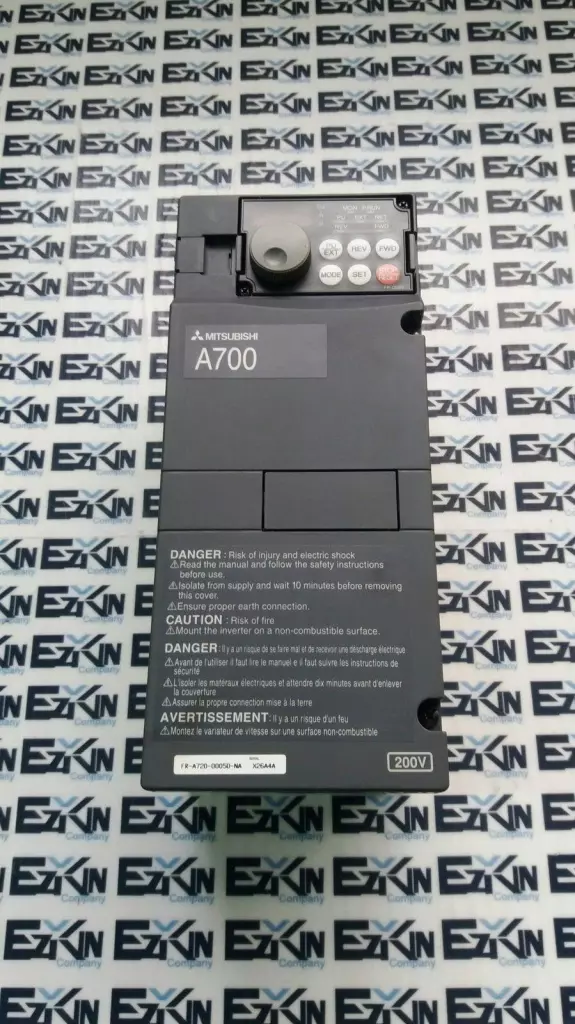

Mitsubishi Electric FR-A720-00050-NA A700 Inverter Drive

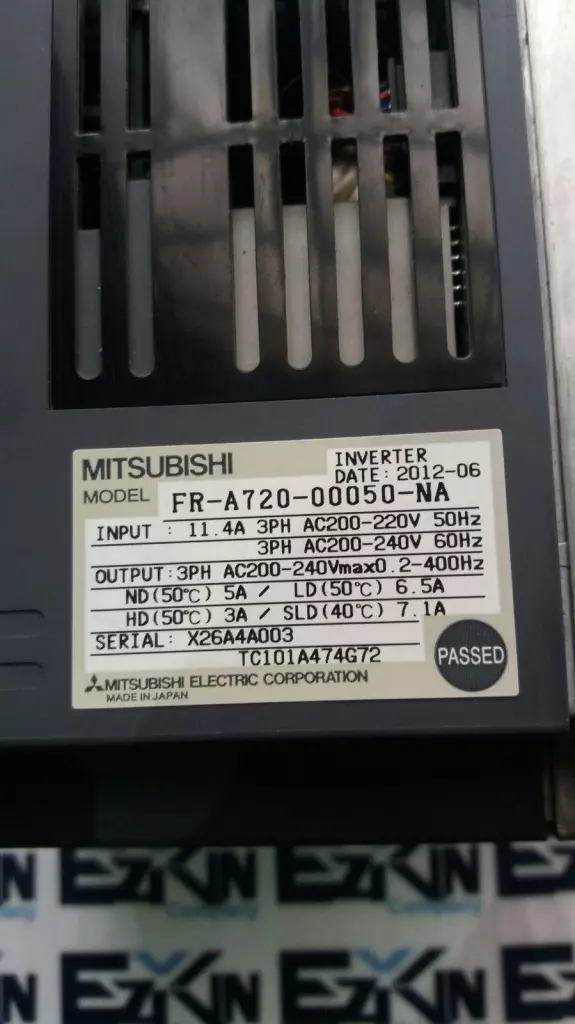

Mitsubishi Electric FR-A720-00050-NA is a high-performance A700 series inverter drive designed for controlling three-phase induction motors. It provides advanced vector control, energy-saving features, and reliable motor operation in industrial applications. Technical Specifications Model: FR-A720-00050-NA Series: A700 Input Voltage: 3-phase AC 200–220V 50Hz / 200–240V 60Hz Input Current: 11.4A Output Voltage: 3-phase AC 200–240V Output Frequency: 0.2–400Hz Motor Capacity: 0.75kW (1 HP) class Rated Output Current: – ND (Normal Duty, 50°C): 5A – LD (Light Duty, 50°C): 6.5A – HD (Heavy Duty, 50°C): 3A – SLD (Super Light Duty, 40°C): 7.1A Control Method: Vector control (with/without encoder), V/F control Protection Functions: Overcurrent, overvoltage, undervoltage, overload, short circuit, stall prevention Cooling Method: Forced air cooling Mounting: Panel mount Manufacture Date: June 2012 Serial Number: X26A4A003 Manufacturer: Mitsubishi Electric Corporation Country of Origin: Made in Japan

Condition: Used

Weight:   5.00

Depth:   4.00

Length:   10.00

Width:   8.00

SKU:   1662 4.S7.20.6
