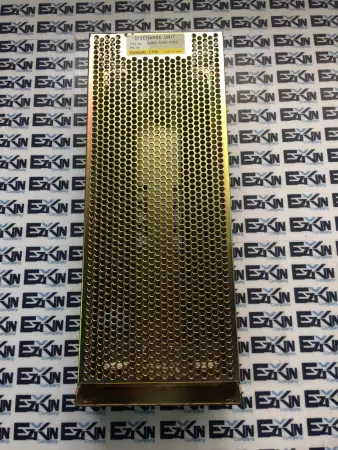

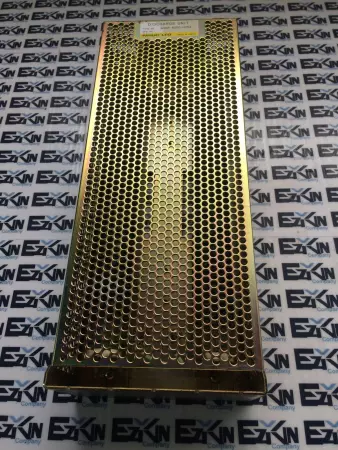

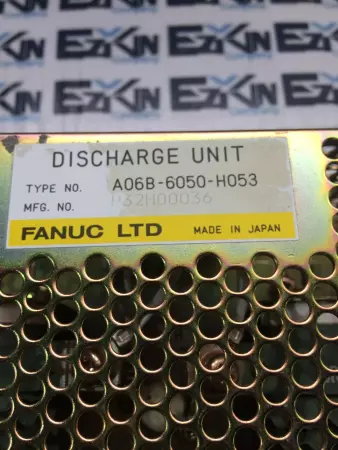

Fanuc A06B-6050-H053 Discharge Unit

GE Fanuc A06B-6050-H053 is a regenerative Discharge Unit designed to work with Fanuc servo amplifier systems. It functions by dissipating regenerative energy from motors during deceleration, protecting the power circuit from overvoltage and maintaining system stability in CNC and automation applications. Technical Specifications Model: A06B-6050-H053 Type: Regenerative Discharge Unit Application: Energy dissipation during motor deceleration Voltage Compatibility: 200–230VAC 3-phase systems Rated Power: Typically matched with servo systems in the 3–5.5 kW class (verify for exact pairing) Discharge Resistor: Built-in high-wattage resistor bank Trigger Control: Automatic via voltage threshold detection Mounting Style: Panel or enclosure mount Cooling Method: Natural convection or fan-assisted (model-specific) Input Terminals: Fanuc proprietary connector interface Protection Features: Overload and thermal shutdown Operating Temperature: 0°C to +45°C Enclosure Rating: Open-frame industrial type Dimensions: Approx. 300mm (H) × 200mm (W) × 150mm (D) Weight: Approx. 5–7 kg Compatibility: Fanuc DC/AC servo amplifier systems (Series 6050, 6055, etc.) Manufacturer: Fanuc Origin: Made in Japan Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   5.00

Depth:   6.00

Length:   20.00

Width:   10.00

SKU:   1663 4.S7.3.2
