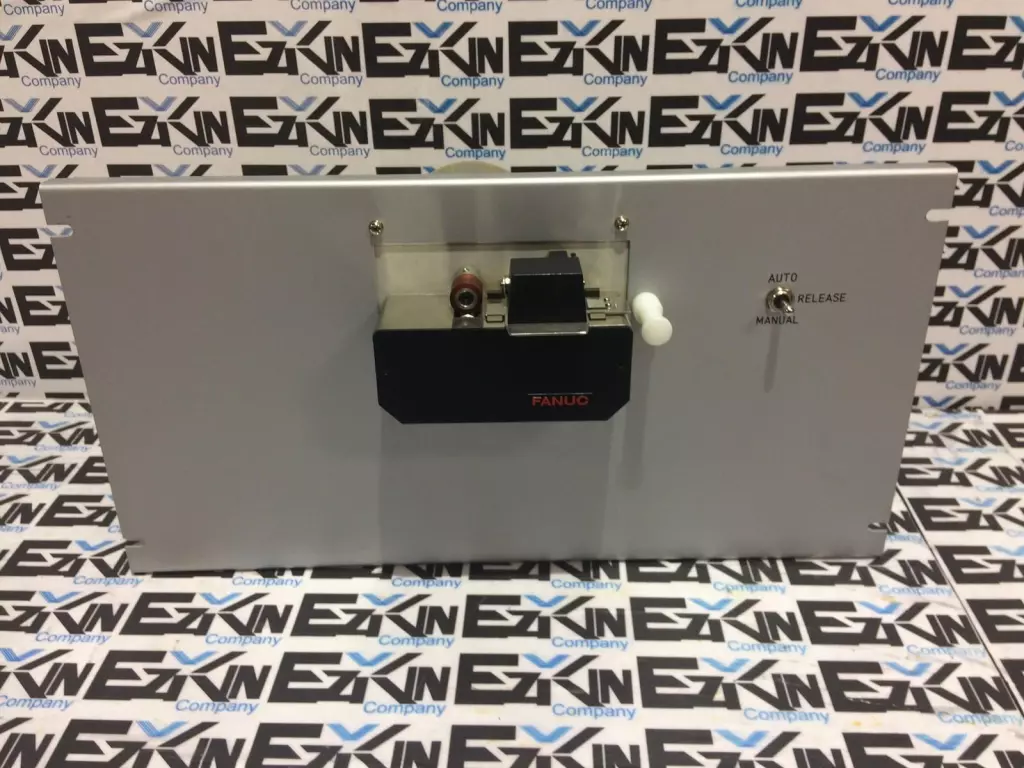

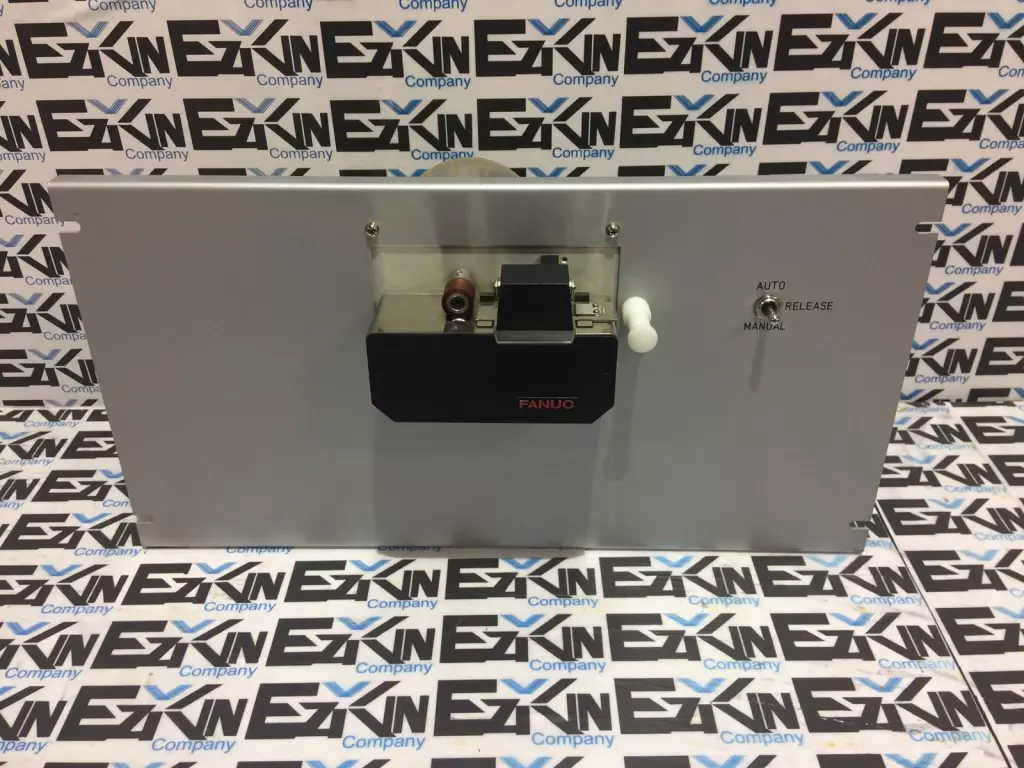

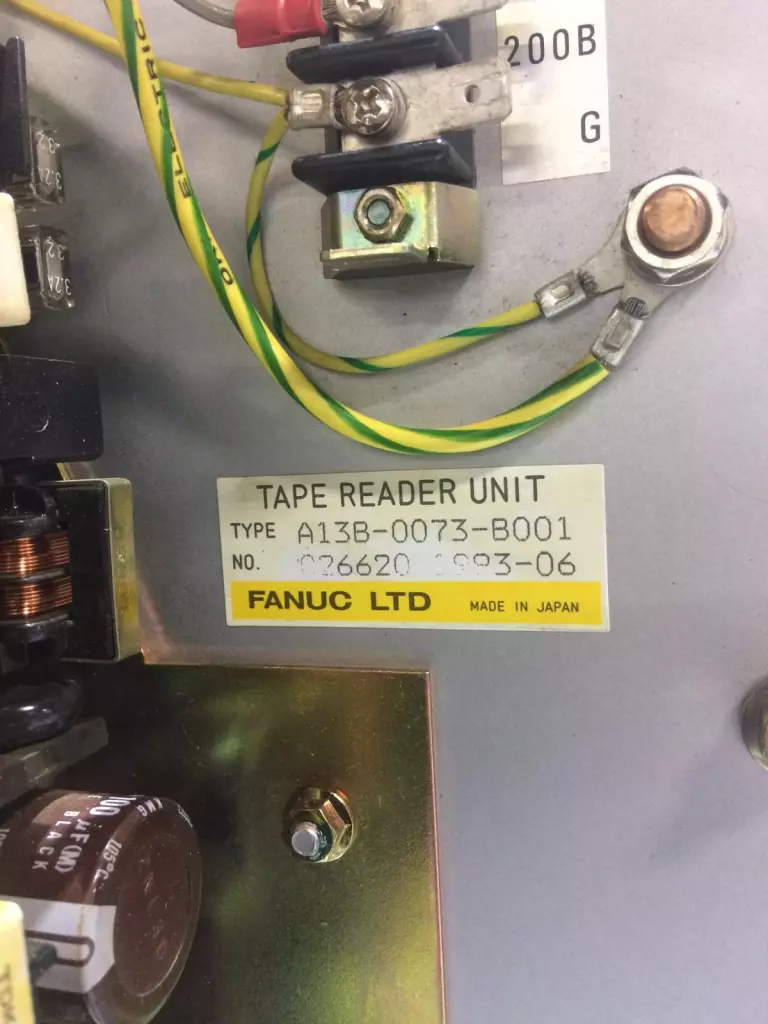

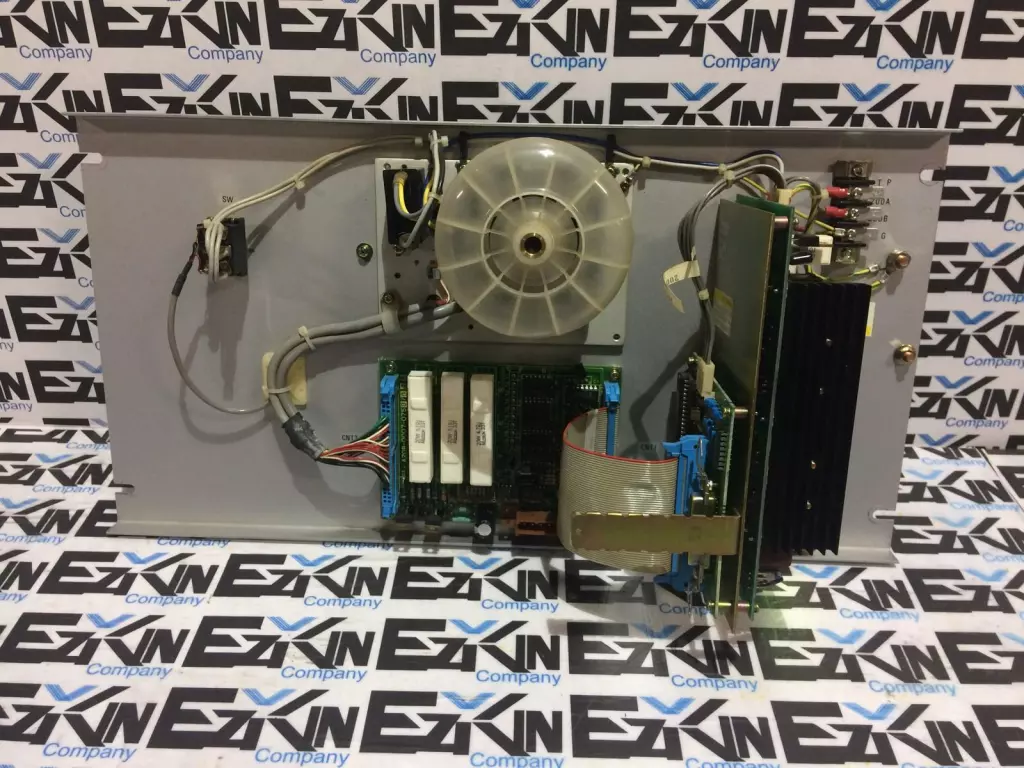

Fanuc A13B-0073-B001 Tape Reader Unit

Fanuc A13B-0073-B001 is a Tape Reader Unit designed for use with early Fanuc CNC control systems. It serves as an interface for loading part programs from paper tape using an optical or mechanical reader, widely used in legacy CNC machining environments. Technical Specifications Model: A13B-0073-B001 Type: Tape Reader Unit Function: Reads punched tape (ISO-coded) into CNC system memory Tape Format: ISO 7-bit or 8-bit, 1-inch wide punched paper tape Reader Type: Optical or mechanical (depending on internal build) Interface: RS-232C serial or Fanuc-specific interface protocol Baud Rate: Typically 2400–9600 bps (configurable via control system) Power Supply: 24VDC or supplied via control cabinet (verify with CNC unit) Mounting: Panel or cabinet mount Connector Type: 20–25 pin D-sub or proprietary Fanuc connector Indicators: Status LEDs for power, data read, and fault Compatibility: Fanuc Series 3, 5, 6, and early 0-series CNC systems Housing: Steel or aluminum enclosure Dimensions: Approx. 300mm × 200mm × 100mm Weight: ~4–6 kg Origin: Made in Japan (Fanuc Ltd.) Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   11.00

Depth:   16.00

Length:   26.00

Width:   18.00

SKU:   1683 4.S7.4.5
