Omron XW2B-20G5 Terminal Block

Terminal Blocks

$135
$21.40
Save 84%

In stock 2 available

Quantity
Total Price: $21.40

Share this item:

Questions?

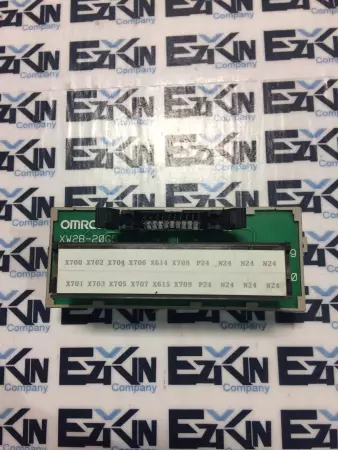

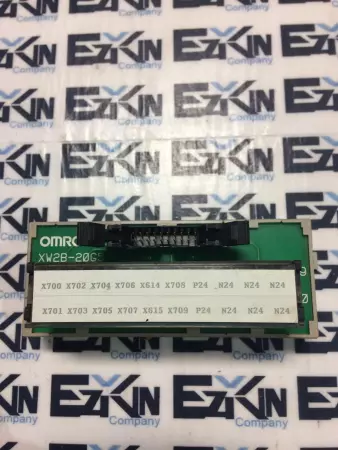

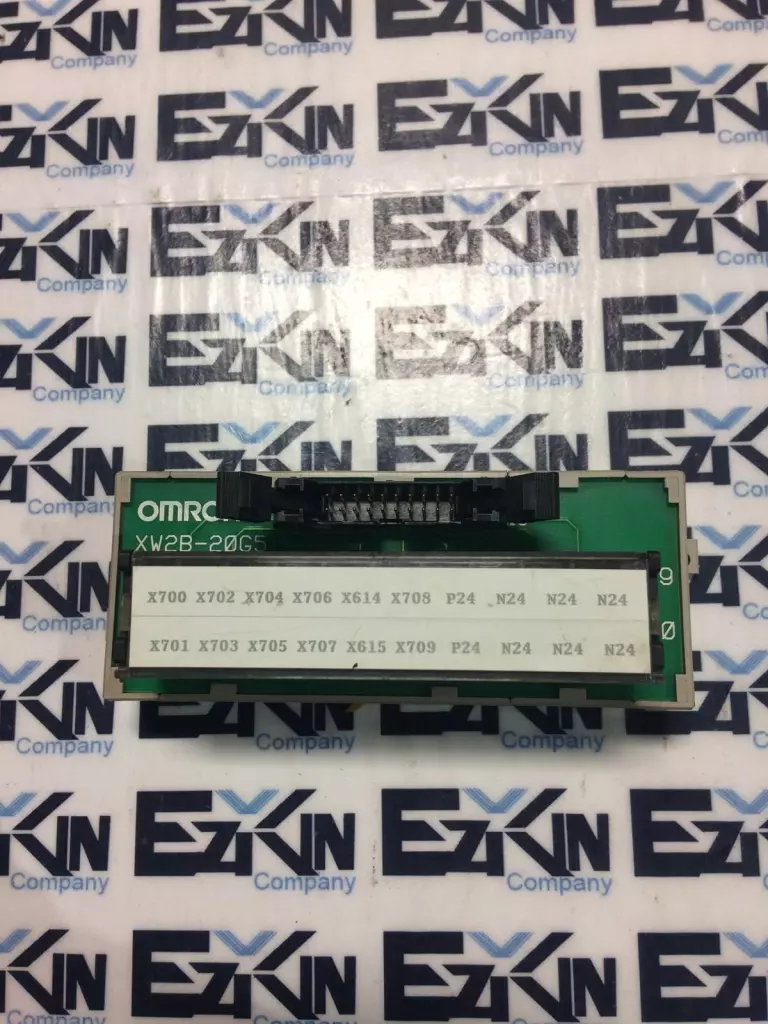

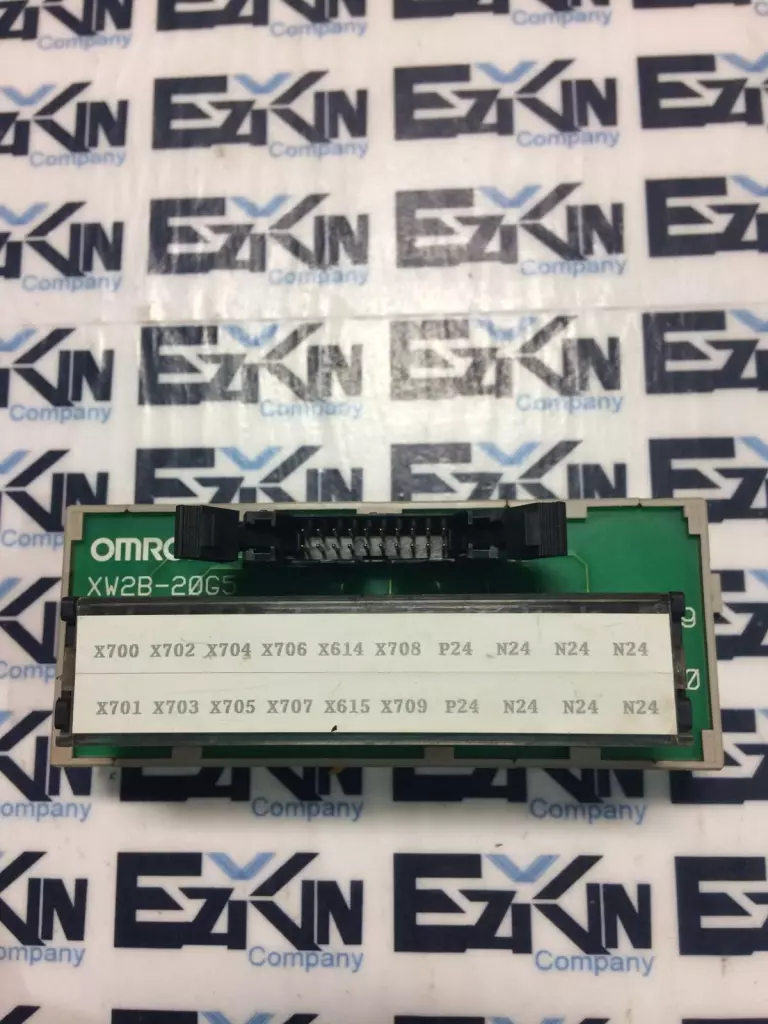

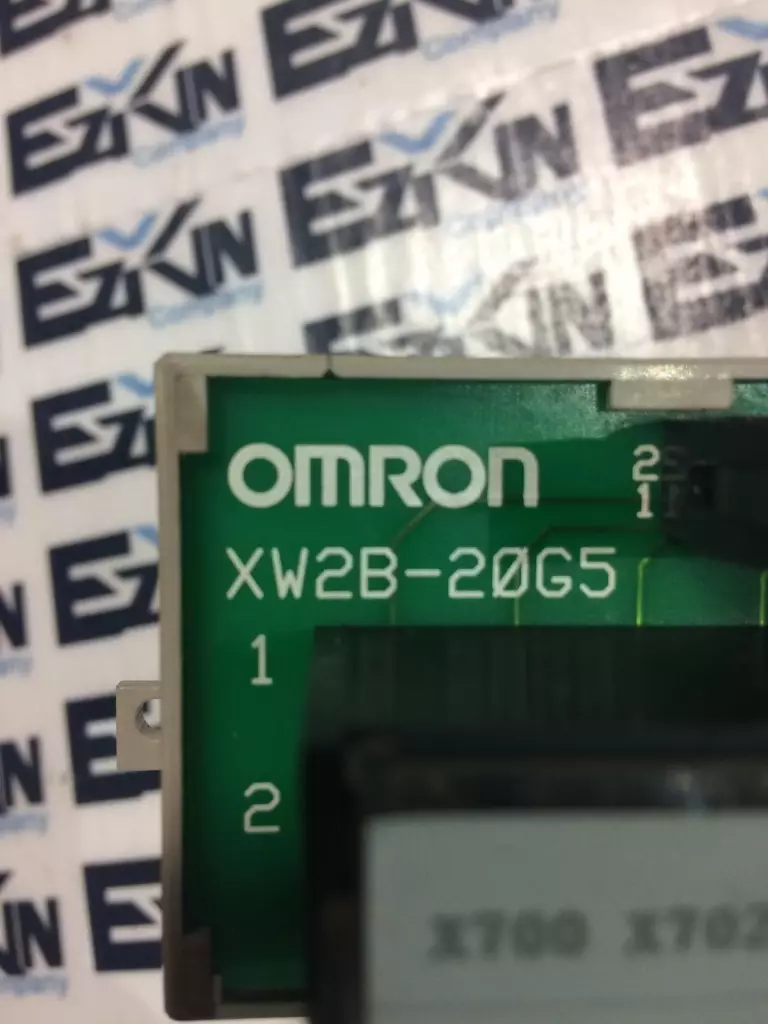

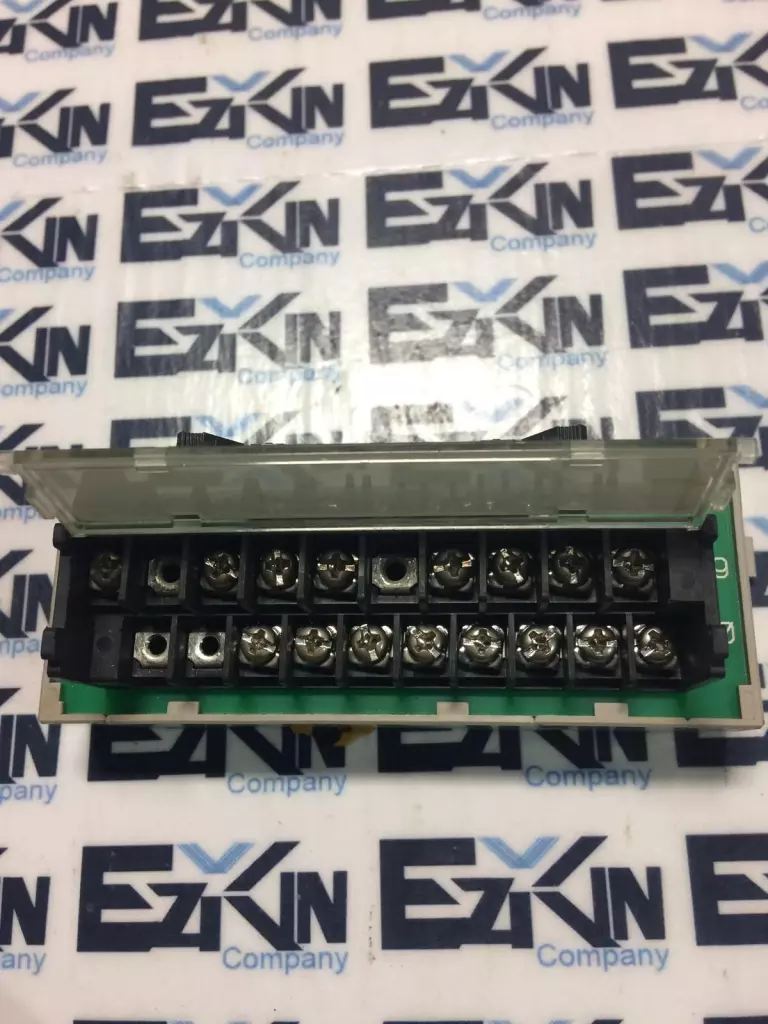

Omron XW2B-20G5 is a compact terminal block interface module used to convert flat cable connections into discrete screw terminals. It enables easy wiring between I/O modules and external field devices in control panels and PLC systems. Technical Specifications Model: XW2B-20G5 Type: Terminal Block Interface Module Function: Connector Conversion Unit (Flat cable to screw terminals) Number of Positions: 20 Terminal Type: Screw clamp terminals Rated Current: 1 Amp per point Rated Voltage: 125 VAC Insulation Resistance: 100 MΩ min. Pitch: 8.5 mm between terminals Cable Interface: 20-pin flat cable connector (IDC type) Mounting Method: DIN rail mountable Housing Material: Flame-retardant resin Dimensions: – Height: 43.5 mm – Length: 112.5 mm – Width: 45 mm Wiring Type: Flat ribbon cable to discrete wire output Application: PLC I/O wiring, sensor/actuator connections Manufacturer: Omron Automation and Safety Please review pictures carefully and let us know if you have any questions!

Brand:
OmronNumber of Poles

Condition: Used

Weight:   0.80

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   1696 4.S6.2.2
