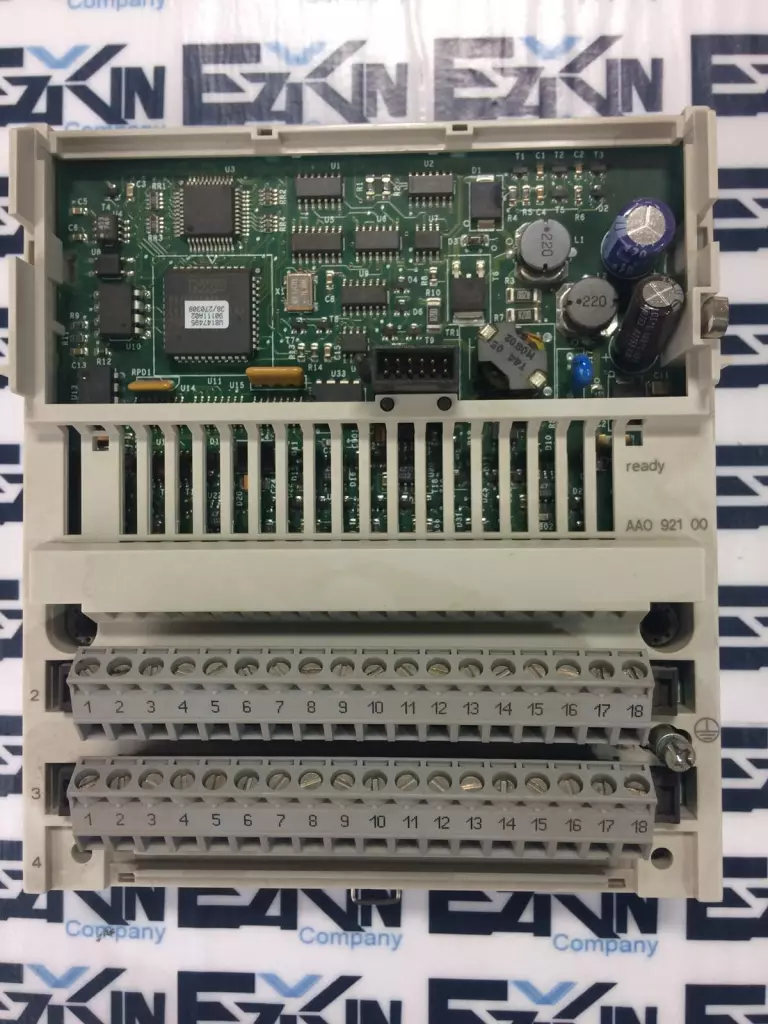

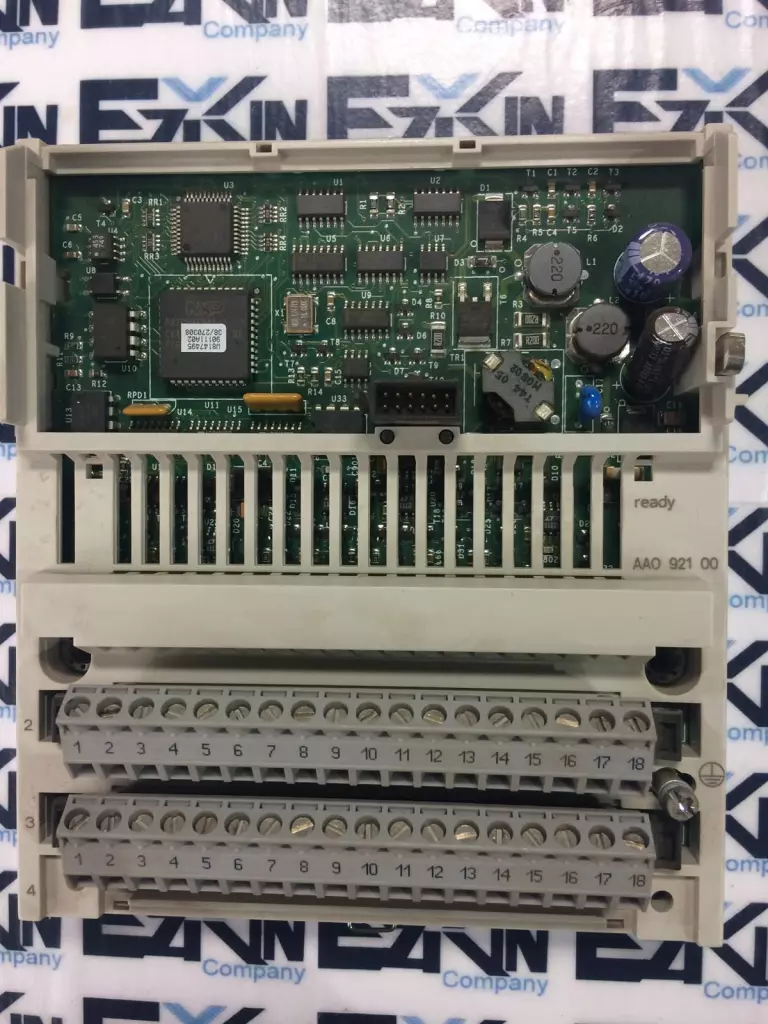

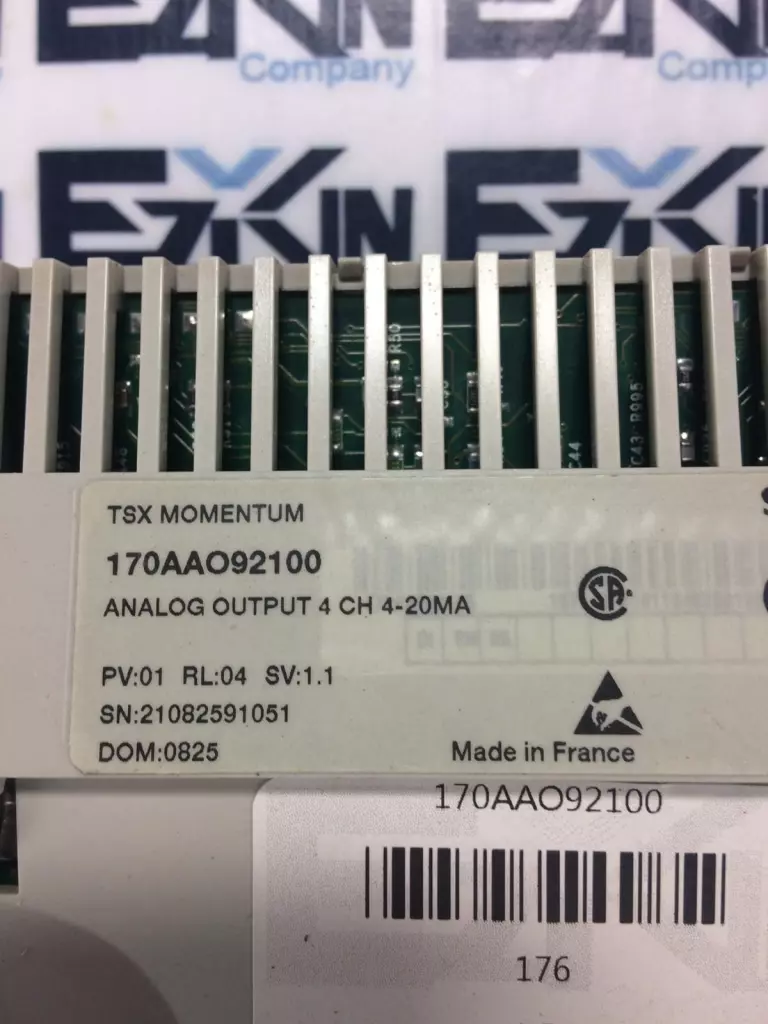

TSX Momentum 170AAO92100 4-Channel Analog Output

The Schneider Electric 170AAO92100 is a 4-channel analog output module from the Modicon Momentum series, designed to provide precise analog signal control in industrial automation systems.
Key Specifications:
Analog Outputs: 4 channels
Output Ranges: ±10 V (≥1 kΩ load) and 4–20 mA (≤0.6 kΩ load)
Data Resolution: 16-bit signed
Update Time: <2 ms
Isolation: 500 V AC between channels and ground
Power Requirements: ±30 V DC or 24 V DC external power supply
Dimensions: Width: 141.5 mm; Depth: 47.5 mm; Height: 125 mm
Weight: 0.215 kg
