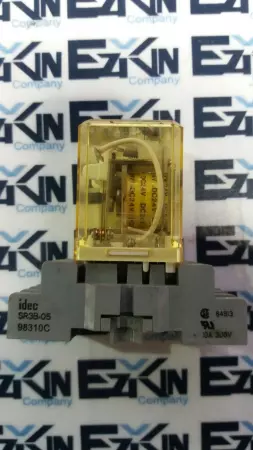

Idec RR3B-UL Relay, 24VDC Coil 10Amp with Socket Base

General-purpose plug-in relay with 24VDC coil, ideal for industrial automation, control panels, and machinery. Includes socket base for easy DIN rail or panel mounting.

Model: RR3B-UL
Coil Voltage: 24 VDC
Contact Rating: 10 A at 250 VAC / 30 VDC
Contact Configuration: 3PDT (3 Form C)
Coil Power: Approx. 0.9 W
Dielectric Strength: 2000 VAC between coil and contacts
Insulation Resistance: ≥100 MΩ at 500 VDC
Operate Time: ≤20 ms
Release Time: ≤20 ms
Mounting Style: Plug-in with socket base (DIN rail or panel mount)
Socket Model: SJ2S-05B or equivalent (included)
Indicator: LED coil status indicator (optional)
Mechanical Life: 20 million operations
Electrical Life: 100,000 operations at rated load
Ambient Temperature: -25°C to +60°C
Standards: UL Listed, CSA, CE, RoHS compliant Please review pictures carefully and let us know if you have any questions!
