Fuji Electric SC-4-1/G AND SZ-Z1 Contactor Assembly, Max. 660V 32Amp

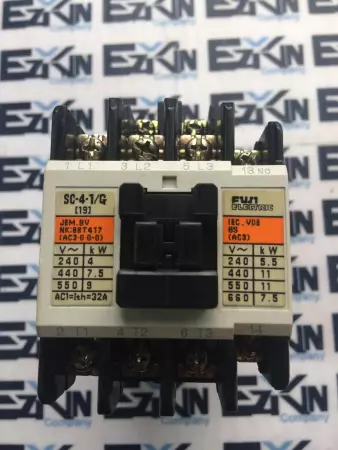

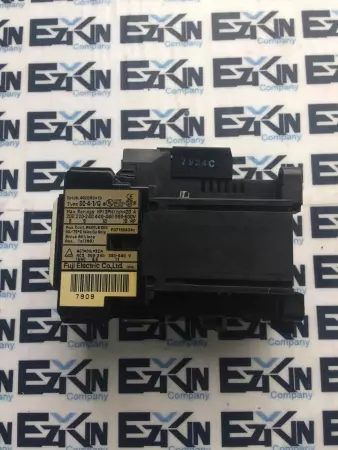

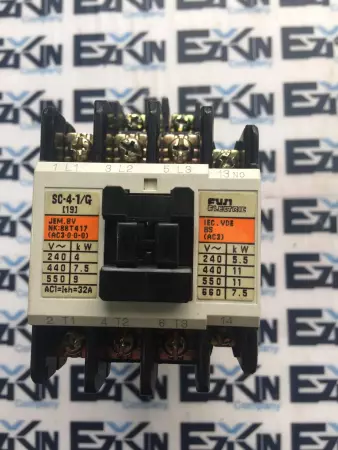

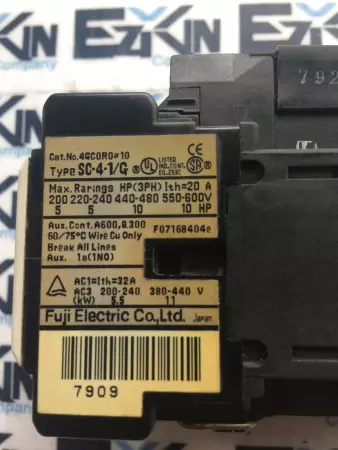

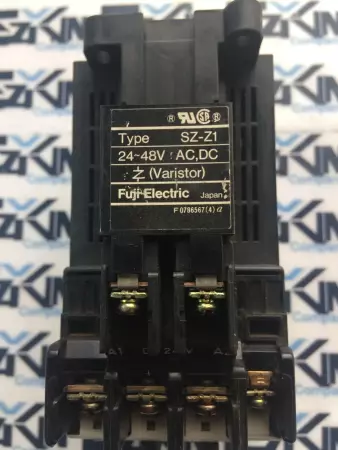

1. Contactor Unit: Fuji SC-4-1/G Component Type: Magnetic Contactor Rated Current: Approx. 25–32 A (AC-3 duty, model-dependent) Rated Voltage: Up to 600 VAC Poles: 3P (3 main contacts) Auxiliary Contacts: 1 N/O + 1 N/C (as visible) Coil Voltage: Label indicates 24–48V AC (coil voltage varies by part) Application: Motor starters, control panels, industrial switching 2. Attached Module: SZ-Z1 (Auxiliary Block) Type: Auxiliary contact block Contacts: 2 additional contacts (usually 1 N/O + 1 N/C or configurable) Mounting: Front-mounted on SC series contactors Function: Provides status signaling, interlock, or control logic Voltage Rating: Same as the contactor control system 3. Add-On Unit: RY-21 (Surge Suppressor) Function: Suppresses electrical surges/spikes generated by the coil Voltage Range: 24–48V AC Mounting: Clip-on to coil terminals Application: Protects control circuits and extends contactor life Summary Description Fuji Electric SC-4-1/G Contactor Assembly with SZ-Z1 Auxiliary Contact Block and RY-21 Surge Suppressor Three-pole magnetic contactor rated for industrial motor and power control applications. Includes auxiliary contact block for logic expansion and a built-in surge suppressor for coil protection. This complete unit is widely used in automated control cabinets and motor starter assemblies. Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   1.04

Depth:   4.00

Length:   7.00

Width:   7.00

SKU:   1801 4.S9.10.5
