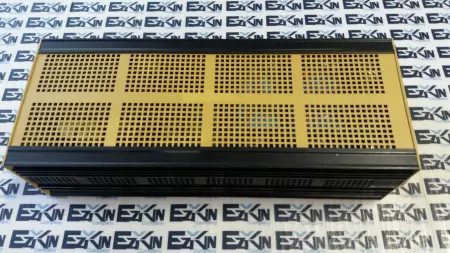

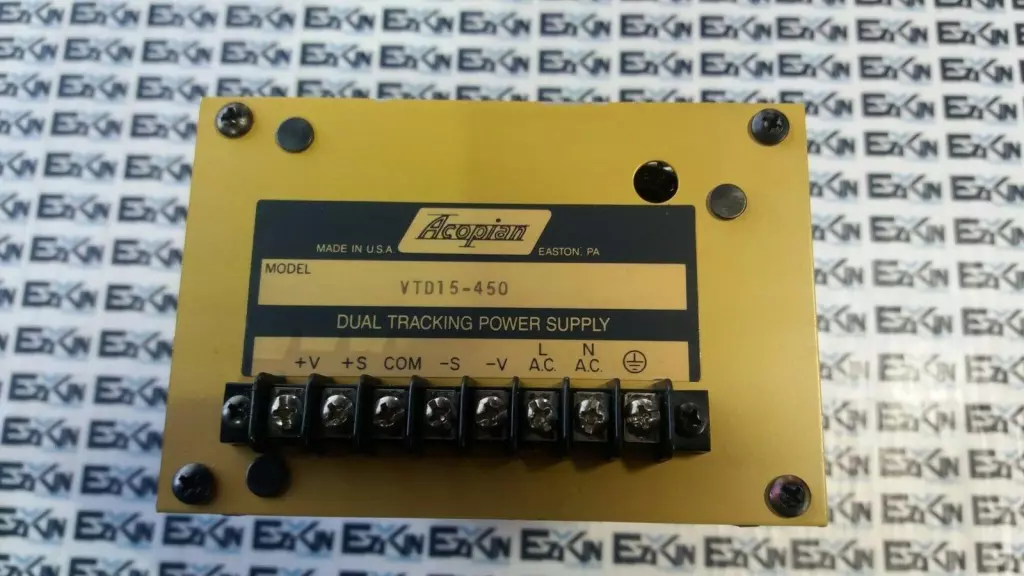

Acopian VTD15-450 Dual Tracking Power Supply

Acopian VTD15-450 is a dual tracking regulated DC power supply designed for industrial and laboratory applications requiring precise, balanced positive and negative DC voltages. It provides clean, stable ±15V DC output ideal for powering analog circuits, op-amps, and instrumentation systems. Model: VTD15-450 Output Voltage: ±15 VDC Output Current: ±4.5 Amps Output Power: 135 Watts total Line Regulation: ±0.05% or better Load Regulation: ±0.05% or better Ripple and Noise: Typically 1 mV RMS Input Voltage: 105-125 VAC, 50/60 Hz Isolation: Input to output isolation provided Cooling: Convection cooled Mounting: Tabletop or rack-mount optional Dimensions: 5.0" H x 8.5" W x 10.5" D (approx.) Weight: ~17 lbs (7.7 kg) Protection: Overvoltage and thermal protection included Construction: Encapsulated, rugged metal case Terminals: Screw-type barrier strip for input/output connections Applications: Analog signal processing, test benches, audio systems, and instrumentation systems requiring dual voltage rails Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   10.15

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   1830 4.S7.9.2
