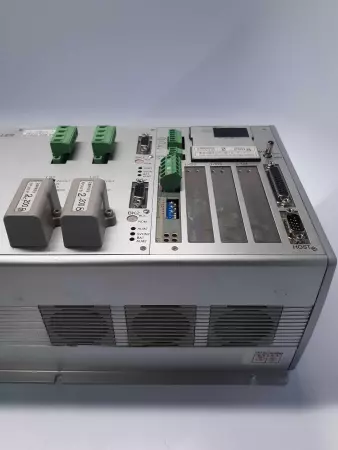

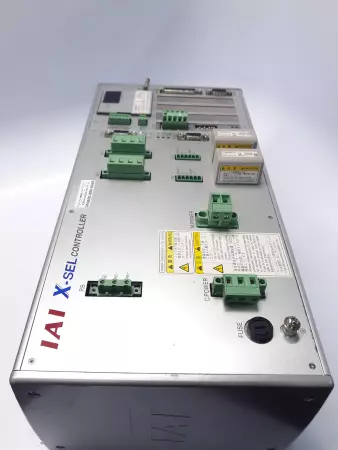

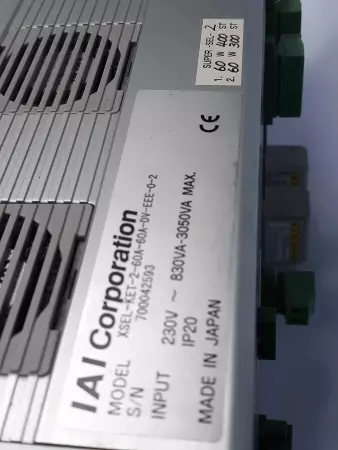

IAI Corp. XSEL-KET-2-60A-60A-DV-EEE-0-2 X-Sel Motion Controller

​The IAI XSEL-KET-2-60A-60A-DV-EEE-0-2 is a two-axis motion controller from IAI Corporation's X-SEL series, designed for precise automation tasks. The part number provides specific details about the controller's configuration:​ 2: Specifies the number of controlled axes, in this case, two.​ 60A-60A: Denotes that both axes are configured with 60W motors equipped with absolute encoders and no brakes.​ DV: Represents compatibility with the DeviceNet communication interface.​ EEE: Indicates that all three expansion I/O slots are unused.​ 0: Specifies that no I/O flat cable is included.​ 2: Corresponds to a single-phase 200V AC power supply input. Operating Method: Program Operation Number of Programs that can be registered: 64 programs (6,000 steps) Number of Positions that can be registered: 3,000 positions Input Power Supply: Single-phase 200 VAC

Condition: Used

Weight:   15.00

Depth:   16.00

Length:   18.00

Width:   26.00

SKU:   18599 4.S7.16.1
