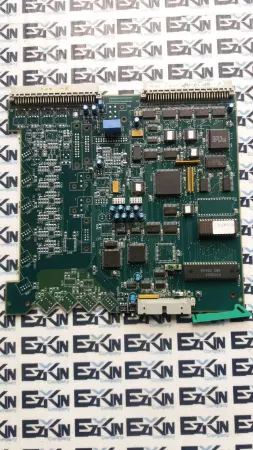

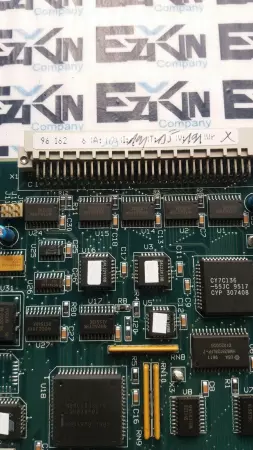

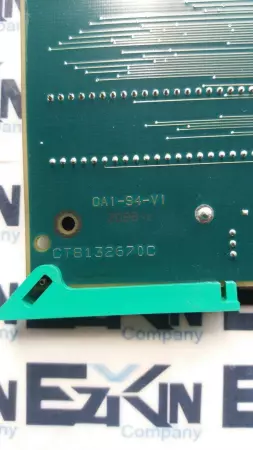

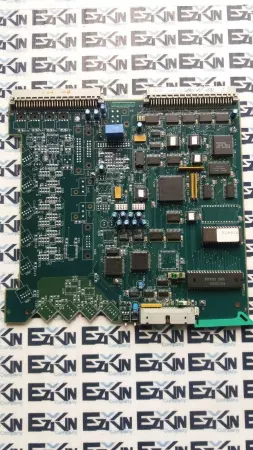

Charmilles CT8132670C RoboForm EDM Circuit Board

The Charmilles CT8132670C is an original equipment circuit board used in RoboForm series Electrical Discharge Machining (EDM) machines. It serves as a critical component within the machine's control system, handling signal processing and operational logic for precise spark generation and machining control. Board Type: EDM control circuit board Model Number: CT8132670C Application: Signal control and processing for RoboForm EDM machines Compatible Equipment: Charmilles RoboForm series (verify model-specific compatibility) Function: Manages pulse generation, machining control logic, and system I/O Mounting Style: Plug-in board with edge connector for rack installation Power Requirements: Supplied via machine’s internal low-voltage bus (typically 24 VDC) Design: Multi-layer PCB with microcontroller and analog/digital interface components Diagnostics: May include onboard test points and LEDs for status indication Cooling: Passive convection (airflow within the electronics bay) Manufacturer: Charmilles Technologies (now GF Machining Solutions) Made in: Switzerland Please review pictures carefully and let us know if you have any questions!

Condition: Used

Weight:   0.20

Depth:   6.00

Length:   16.00

Width:   10.00

SKU:   1879 4.S8.6.5C
